One of the drawbacks of our current terrain shader is that we are using a high frequency effect for the terrain normal mapping.
We are using a 512x512 normal map for each quad on the terrain, and at a distance those details can't entirely be seen and instead contribute to a repeating pattern.

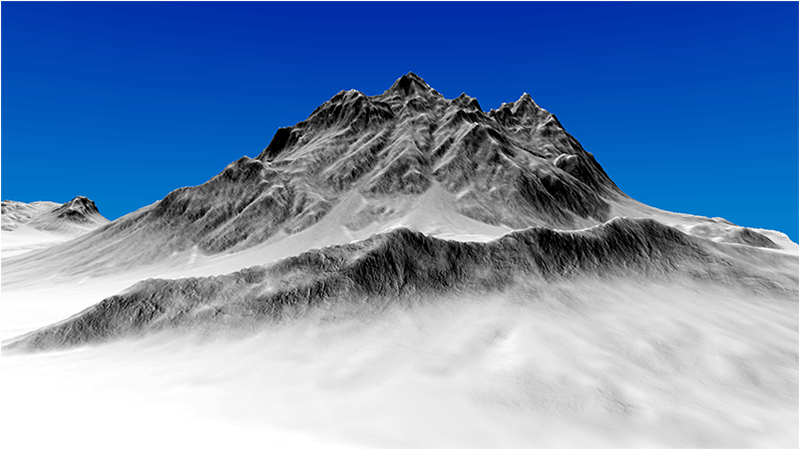

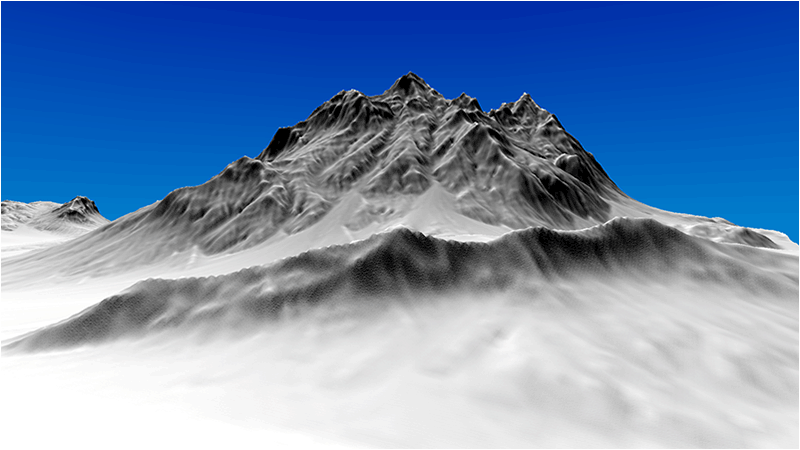

For example if we render our terrain with just normal map lighting we currently get the following:
A simple way to correct this issue is to use a distance normal map that is mapped over a larger number of quads.
So when our shader determines a pixel is far enough away from the camera it switches to using the distance normal map.
The distance normal map provides the low frequency details we require.

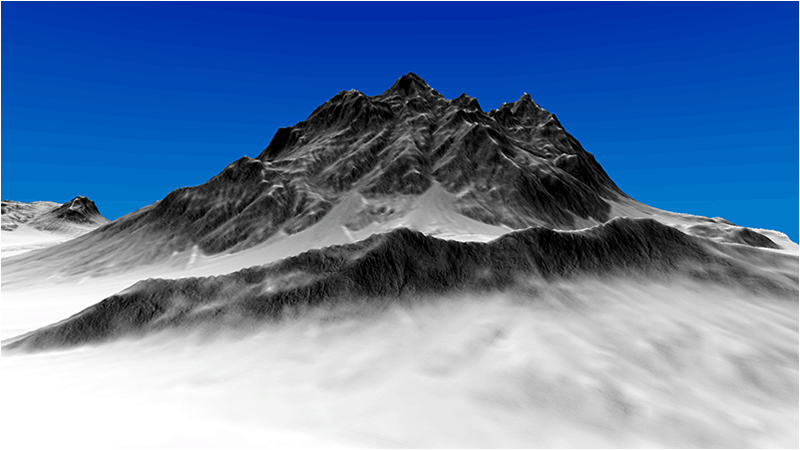

Now when we render the same scene with only normal map lighting we get much better results with distant terrain:
The key to being able to correctly map a distance normal map is to use the depth of the pixel (which is easily calculated in the shader),
and to provide a second set of uv coordinates that map over a larger area.
Currently the texture uv coordinates we have been providing are just a one to one mapping per quad.

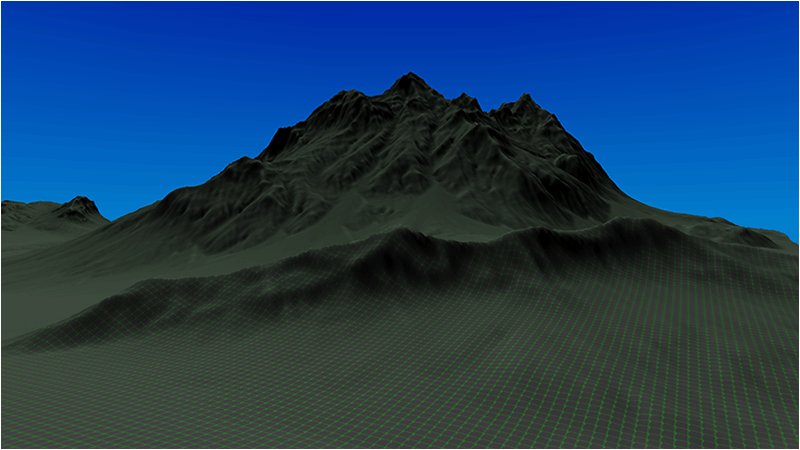

For example if we render the test.tga with the current texture coordinate mapping we get the following:
But now we will generate a second set of uv coordinates that will map one to one for each terrain cell instead (so one texture per 32 quads basically).
Then the distance normal map can be sampled using the second set of uv coordinates and give a wider area to map the distant normal map to.

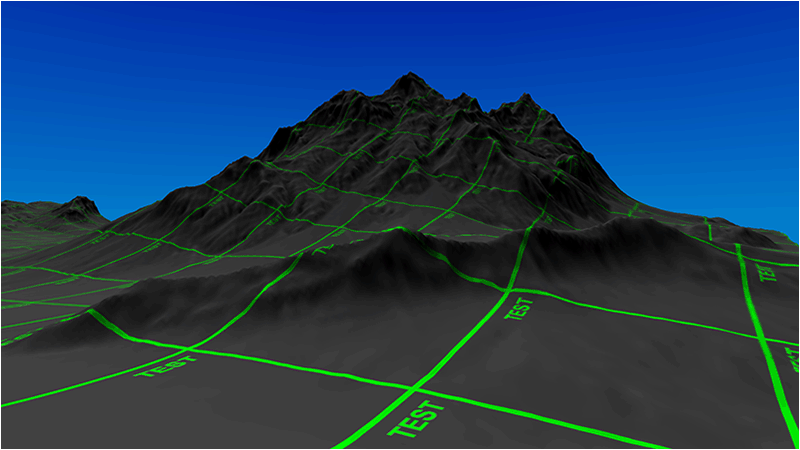

So now when we render the same scene with the test.tga file using the second set of coordinates we get the following mapping:
With these two sets of texture coordinates we can now quickly switch between which one to use based on the depth of the pixel that we are currently rendering.
Now for this tutorial I used just a single generic distance normal map that works well for mountainous rock.
However most modern terrain generation programs such as World Machine can do tiled builds and output normal maps for each section of your terrain.
Using multiple customized normal maps will allow you to have highly detailed and appropriate distance lighting which can help achieve greater realism in your rendered terrain.
One final note is that distance normal maps need to be subtle.
If they are too detailed or if they cause the lighting to vary too much it gives more of an effect that you would expect from a displacement map.
And when you move closer and switch to the regular high frequency normal map it creates a very abrupt transition.
So that always needs to be watched for.
Terrainclass.h
////////////////////////////////////////////////////////////////////////////////
// Filename: terrainclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _TERRAINCLASS_H_
#define _TERRAINCLASS_H_
//////////////
// INCLUDES //
//////////////
#include <fstream>
using namespace std;
///////////////////////
// MY CLASS INCLUDES //
///////////////////////
#include "terraincellclass.h"
#include "frustumclass.h"
////////////////////////////////////////////////////////////////////////////////
// Class name: TerrainClass
////////////////////////////////////////////////////////////////////////////////
class TerrainClass
{
private:
struct HeightMapType
{
float x, y, z;
float nx, ny, nz;
float r, g, b;
};
The terrain model type structure now includes a second set of uv texture coordinates for distance normal mapping.
struct ModelType
{
float x, y, z;
float tu, tv;
float nx, ny, nz;
float tx, ty, tz;
float bx, by, bz;
float r, g, b;
float tu2, tv2;
};
struct VectorType
{
float x, y, z;
};
struct TempVertexType
{
float x, y, z;
float tu, tv;
float nx, ny, nz;
};
public:
TerrainClass();
TerrainClass(const TerrainClass&);
~TerrainClass();
bool Initialize(ID3D11Device*, char*);
void Shutdown();
void Frame();
bool RenderCell(ID3D11DeviceContext*, int, FrustumClass*);
void RenderCellLines(ID3D11DeviceContext*, int);
int GetCellIndexCount(int);
int GetCellLinesIndexCount(int);
int GetCellCount();
int GetRenderCount();
int GetCellsDrawn();
int GetCellsCulled();
bool GetHeightAtPosition(float, float, float&);
private:
bool LoadSetupFile(char*);
bool LoadRawHeightMap();
void ShutdownHeightMap();
void SetTerrainCoordinates();
bool CalculateNormals();
bool LoadColorMap();
bool BuildTerrainModel();
void ShutdownTerrainModel();
void CalculateTerrainVectors();
void CalculateTangentBinormal(TempVertexType, TempVertexType, TempVertexType, VectorType&, VectorType&);
bool LoadTerrainCells(ID3D11Device*);
void ShutdownTerrainCells();
bool CheckHeightOfTriangle(float, float, float&, float[3], float[3], float[3]);
private:
int m_terrainHeight, m_terrainWidth, m_vertexCount;
float m_heightScale;
char *m_terrainFilename, *m_colorMapFilename;
HeightMapType* m_heightMap;
ModelType* m_terrainModel;
TerrainCellClass* m_TerrainCells;
int m_cellCount, m_renderCount, m_cellsDrawn, m_cellsCulled;
};
#endif
Terrainclass.cpp
////////////////////////////////////////////////////////////////////////////////
// Filename: terrainclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "terrainclass.h"
TerrainClass::TerrainClass()
{
m_terrainFilename = 0;
m_colorMapFilename = 0;
m_heightMap = 0;
m_terrainModel = 0;
m_TerrainCells = 0;
}
TerrainClass::TerrainClass(const TerrainClass& other)
{
}
TerrainClass::~TerrainClass()
{
}
bool TerrainClass::Initialize(ID3D11Device* device, char* setupFilename)
{
bool result;
// Get the terrain filename, dimensions, and so forth from the setup file.
result = LoadSetupFile(setupFilename);
if(!result)
{
return false;
}
// Initialize the terrain height map with the data from the raw file.
result = LoadRawHeightMap();
if(!result)
{
return false;
}
// Setup the X and Z coordinates for the height map as well as scale the terrain height by the height scale value.
SetTerrainCoordinates();
// Calculate the normals for the terrain data.
result = CalculateNormals();
if(!result)
{
return false;
}
/*
// Load in the color map for the terrain.
result = LoadColorMap();
if(!result)
{
return false;
}
*/
// Now build the 3D model of the terrain.
result = BuildTerrainModel();
if(!result)
{
return false;
}
// We can now release the height map since it is no longer needed in memory once the 3D terrain model has been built.
ShutdownHeightMap();
// Calculate the tangent and binormal for the terrain model.
CalculateTerrainVectors();
// Create and load the cells with the terrain data.
result = LoadTerrainCells(device);
if(!result)
{
return false;
}
// Release the terrain model now that the terrain cells have been loaded.
ShutdownTerrainModel();
return true;
}
void TerrainClass::Shutdown()
{
// Release the terrain cells.
ShutdownTerrainCells();
// Release the terrain model.
ShutdownTerrainModel();
// Release the height map.
ShutdownHeightMap();
return;
}
void TerrainClass::Frame()
{
m_renderCount = 0;
m_cellsDrawn = 0;
m_cellsCulled = 0;
return;
}
bool TerrainClass::LoadSetupFile(char* filename)
{
int stringLength;
ifstream fin;
char input;
// Initialize the strings that will hold the terrain file name and the color map file name.
stringLength = 256;
m_terrainFilename = new char[stringLength];
if(!m_terrainFilename)
{
return false;
}
/*
m_colorMapFilename = new char[stringLength];
if(!m_colorMapFilename)
{
return false;
}
*/
// Open the setup file. If it could not open the file then exit.
fin.open(filename);
if(fin.fail())
{
return false;
}
// Read up to the terrain file name.
fin.get(input);
while(input != ':')
{
fin.get(input);
}
// Read in the terrain file name.
fin >> m_terrainFilename;
// Read up to the value of terrain height.
fin.get(input);
while(input != ':')
{
fin.get(input);
}
// Read in the terrain height.
fin >> m_terrainHeight;
// Read up to the value of terrain width.
fin.get(input);
while(input != ':')
{
fin.get(input);
}
// Read in the terrain width.
fin >> m_terrainWidth;
// Read up to the value of terrain height scaling.
fin.get(input);
while(input != ':')
{
fin.get(input);
}
// Read in the terrain height scaling.
fin >> m_heightScale;
// Read up to the color map file name.
fin.get(input);
while(input != ':')
{
fin.get(input);
}
// Read in the color map file name.
//fin >> m_colorMapFilename;
// Close the setup file.
fin.close();
return true;
}
bool TerrainClass::LoadRawHeightMap()
{
int error, i, j, index;
FILE* filePtr;
unsigned long long imageSize, count;
unsigned short* rawImage;
// Create the float array to hold the height map data.
m_heightMap = new HeightMapType[m_terrainWidth * m_terrainHeight];
if(!m_heightMap)
{
return false;
}
// Open the 16 bit raw height map file for reading in binary.
error = fopen_s(&filePtr, m_terrainFilename, "rb");
if(error != 0)
{
return false;
}
// Calculate the size of the raw image data.
imageSize = m_terrainHeight * m_terrainWidth;
// Allocate memory for the raw image data.
rawImage = new unsigned short[imageSize];
if(!rawImage)
{
return false;
}
// Read in the raw image data.
count = fread(rawImage, sizeof(unsigned short), imageSize, filePtr);
if(count != imageSize)
{
return false;
}
// Close the file.
error = fclose(filePtr);
if(error != 0)
{
return false;
}
// Copy the image data into the height map array.
for(j=0; j<m_terrainHeight; j++)
{
for(i=0; i<m_terrainWidth; i++)
{
index = (m_terrainWidth * j) + i;
// Store the height at this point in the height map array.
m_heightMap[index].y = (float)rawImage[index];
}
}
// Release the bitmap image data.
delete [] rawImage;
rawImage = 0;
// Release the terrain filename now that it has been read in.
delete [] m_terrainFilename;
m_terrainFilename = 0;
return true;
}
void TerrainClass::ShutdownHeightMap()
{
// Release the height map array.
if(m_heightMap)
{
delete [] m_heightMap;
m_heightMap = 0;
}
return;
}
void TerrainClass::SetTerrainCoordinates()
{
int i, j, index;
// Loop through all the elements in the height map array and adjust their coordinates correctly.
for(j=0; j<m_terrainHeight; j++)
{
for(i=0; i<m_terrainWidth; i++)
{
index = (m_terrainWidth * j) + i;
// Set the X and Z coordinates.
m_heightMap[index].x = (float)i;
m_heightMap[index].z = -(float)j;
// Move the terrain depth into the positive range. For example from (0, -256) to (256, 0).
m_heightMap[index].z += (float)(m_terrainHeight - 1);
// Scale the height.
m_heightMap[index].y /= m_heightScale;
}
}
return;
}
bool TerrainClass::CalculateNormals()
{
int i, j, index1, index2, index3, index;
float vertex1[3], vertex2[3], vertex3[3], vector1[3], vector2[3], sum[3], length;
VectorType* normals;
// Create a temporary array to hold the face normal vectors.
normals = new VectorType[(m_terrainHeight-1) * (m_terrainWidth-1)];
if(!normals)
{
return false;
}
// Go through all the faces in the mesh and calculate their normals.
for(j=0; j<(m_terrainHeight-1); j++)
{
for(i=0; i<(m_terrainWidth-1); i++)
{
index1 = ((j+1) * m_terrainWidth) + i; // Bottom left vertex.
index2 = ((j+1) * m_terrainWidth) + (i+1); // Bottom right vertex.
index3 = (j * m_terrainWidth) + i; // Upper left vertex.
// Get three vertices from the face.
vertex1[0] = m_heightMap[index1].x;
vertex1[1] = m_heightMap[index1].y;
vertex1[2] = m_heightMap[index1].z;
vertex2[0] = m_heightMap[index2].x;
vertex2[1] = m_heightMap[index2].y;
vertex2[2] = m_heightMap[index2].z;
vertex3[0] = m_heightMap[index3].x;
vertex3[1] = m_heightMap[index3].y;
vertex3[2] = m_heightMap[index3].z;
// Calculate the two vectors for this face.
vector1[0] = vertex1[0] - vertex3[0];
vector1[1] = vertex1[1] - vertex3[1];
vector1[2] = vertex1[2] - vertex3[2];
vector2[0] = vertex3[0] - vertex2[0];
vector2[1] = vertex3[1] - vertex2[1];
vector2[2] = vertex3[2] - vertex2[2];
index = (j * (m_terrainWidth - 1)) + i;
// Calculate the cross product of those two vectors to get the un-normalized value for this face normal.
normals[index].x = (vector1[1] * vector2[2]) - (vector1[2] * vector2[1]);
normals[index].y = (vector1[2] * vector2[0]) - (vector1[0] * vector2[2]);
normals[index].z = (vector1[0] * vector2[1]) - (vector1[1] * vector2[0]);
// Calculate the length.
length = (float)sqrt((normals[index].x * normals[index].x) + (normals[index].y * normals[index].y) +
(normals[index].z * normals[index].z));
// Normalize the final value for this face using the length.
normals[index].x = (normals[index].x / length);
normals[index].y = (normals[index].y / length);
normals[index].z = (normals[index].z / length);
}
}
// Now go through all the vertices and take a sum of the face normals that touch this vertex.
for(j=0; j<m_terrainHeight; j++)
{
for(i=0; i<m_terrainWidth; i++)
{
// Initialize the sum.
sum[0] = 0.0f;
sum[1] = 0.0f;
sum[2] = 0.0f;
// Bottom left face.
if(((i-1) >= 0) && ((j-1) >= 0))
{
index = ((j-1) * (m_terrainWidth-1)) + (i-1);
sum[0] += normals[index].x;
sum[1] += normals[index].y;
sum[2] += normals[index].z;
}
// Bottom right face.
if((i<(m_terrainWidth-1)) && ((j-1) >= 0))
{
index = ((j - 1) * (m_terrainWidth - 1)) + i;
sum[0] += normals[index].x;
sum[1] += normals[index].y;
sum[2] += normals[index].z;
}
// Upper left face.
if(((i-1) >= 0) && (j<(m_terrainHeight-1)))
{
index = (j * (m_terrainWidth-1)) + (i-1);
sum[0] += normals[index].x;
sum[1] += normals[index].y;
sum[2] += normals[index].z;
}
// Upper right face.
if((i < (m_terrainWidth-1)) && (j < (m_terrainHeight-1)))
{
index = (j * (m_terrainWidth-1)) + i;
sum[0] += normals[index].x;
sum[1] += normals[index].y;
sum[2] += normals[index].z;
}
// Calculate the length of this normal.
length = (float)sqrt((sum[0] * sum[0]) + (sum[1] * sum[1]) + (sum[2] * sum[2]));
// Get an index to the vertex location in the height map array.
index = (j * m_terrainWidth) + i;
// Normalize the final shared normal for this vertex and store it in the height map array.
m_heightMap[index].nx = (sum[0] / length);
m_heightMap[index].ny = (sum[1] / length);
m_heightMap[index].nz = (sum[2] / length);
}
}
// Release the temporary normals.
delete [] normals;
normals = 0;
return true;
}
bool TerrainClass::LoadColorMap()
{
int error, imageSize, i, j, k, index;
FILE* filePtr;
unsigned long long count;
BITMAPFILEHEADER bitmapFileHeader;
BITMAPINFOHEADER bitmapInfoHeader;
unsigned char* bitmapImage;
// Open the color map file in binary.
error = fopen_s(&filePtr, m_colorMapFilename, "rb");
if(error != 0)
{
return false;
}
// Read in the file header.
count = fread(&bitmapFileHeader, sizeof(BITMAPFILEHEADER), 1, filePtr);
if(count != 1)
{
return false;
}
// Read in the bitmap info header.
count = fread(&bitmapInfoHeader, sizeof(BITMAPINFOHEADER), 1, filePtr);
if(count != 1)
{
return false;
}
// Make sure the color map dimensions are the same as the terrain dimensions for easy 1 to 1 mapping.
if((bitmapInfoHeader.biWidth != m_terrainWidth) || (bitmapInfoHeader.biHeight != m_terrainHeight))
{
return false;
}
// Calculate the size of the bitmap image data.
// Since this is non-divide by 2 dimensions (eg. 257x257) need to add extra byte to each line.
imageSize = m_terrainHeight * ((m_terrainWidth * 3) + 1);
// Allocate memory for the bitmap image data.
bitmapImage = new unsigned char[imageSize];
if(!bitmapImage)
{
return false;
}
// Move to the beginning of the bitmap data.
fseek(filePtr, bitmapFileHeader.bfOffBits, SEEK_SET);
// Read in the bitmap image data.
count = fread(bitmapImage, 1, imageSize, filePtr);
if(count != imageSize)
{
return false;
}
// Close the file.
error = fclose(filePtr);
if(error != 0)
{
return false;
}
// Initialize the position in the image data buffer.
k=0;
// Read the image data into the color map portion of the height map structure.
for(j=0; j<m_terrainHeight; j++)
{
for(i=0; i<m_terrainWidth; i++)
{
// Bitmaps are upside down so load bottom to top into the array.
index = (m_terrainWidth * (m_terrainHeight - 1 - j)) + i;
m_heightMap[index].b = (float)bitmapImage[k] / 255.0f;
m_heightMap[index].g = (float)bitmapImage[k + 1] / 255.0f;
m_heightMap[index].r = (float)bitmapImage[k + 2] / 255.0f;
k += 3;
}
// Compensate for extra byte at end of each line in non-divide by 2 bitmaps (eg. 257x257).
k++;
}
// Release the bitmap image data.
delete [] bitmapImage;
bitmapImage = 0;
// Release the color map filename now that is has been read in.
delete [] m_colorMapFilename;
m_colorMapFilename = 0;
return true;
}
When we build the terrain model we need to incorporate the generation of a second set of uv texture coordinates for the distance normal mapping.
Since each cell is 33x33 vertices we will generate a second set of uv coordinates that map to those dimensions.
This way each cell can have its own distance normal map.
This also makes it easy to implement and debug.
bool TerrainClass::BuildTerrainModel()
{
int i, j, index, index1, index2, index3, index4;
float quadsCovered, incrementSize, tu2Left, tu2Right, tv2Bottom, tv2Top;
// Calculate the number of vertices in the 3D terrain model.
m_vertexCount = (m_terrainHeight - 1) * (m_terrainWidth - 1) * 6;
// Create the 3D terrain model array.
m_terrainModel = new ModelType[m_vertexCount];
if(!m_terrainModel)
{
return false;
}
// Setup the increment size for the second set of textures.
// This is a fixed 33x33 vertex array per cell so there will be 32 rows of quads in a cell.
quadsCovered = 32.0f;
incrementSize = 1.0f / quadsCovered;
// Initialize the texture increments.
tu2Left = 0.0f;
tu2Right = incrementSize;
tv2Top = 0.0f;
tv2Bottom = incrementSize;
// Initialize the index into the height map array.
index = 0;
// Load the 3D terrain model with the height map terrain data.
// We will be creating 2 triangles for each of the four points in a quad.
for(j=0; j<(m_terrainHeight-1); j++)
{
for(i=0; i<(m_terrainWidth-1); i++)
{
// Get the indexes to the four points of the quad.
index1 = (m_terrainWidth * j) + i; // Upper left.
index2 = (m_terrainWidth * j) + (i+1); // Upper right.
index3 = (m_terrainWidth * (j+1)) + i; // Bottom left.
index4 = (m_terrainWidth * (j+1)) + (i+1); // Bottom right.
// Now create two triangles for that quad.
// Triangle 1 - Upper left.
m_terrainModel[index].x = m_heightMap[index1].x;
m_terrainModel[index].y = m_heightMap[index1].y;
m_terrainModel[index].z = m_heightMap[index1].z;
m_terrainModel[index].tu = 0.0f;
m_terrainModel[index].tv = 0.0f;
m_terrainModel[index].nx = m_heightMap[index1].nx;
m_terrainModel[index].ny = m_heightMap[index1].ny;
m_terrainModel[index].nz = m_heightMap[index1].nz;
m_terrainModel[index].r = m_heightMap[index1].r;
m_terrainModel[index].g = m_heightMap[index1].g;
m_terrainModel[index].b = m_heightMap[index1].b;
m_terrainModel[index].tu2 = tu2Left;
m_terrainModel[index].tv2 = tv2Top;
index++;
// Triangle 1 - Upper right.
m_terrainModel[index].x = m_heightMap[index2].x;
m_terrainModel[index].y = m_heightMap[index2].y;
m_terrainModel[index].z = m_heightMap[index2].z;
m_terrainModel[index].tu = 1.0f;
m_terrainModel[index].tv = 0.0f;
m_terrainModel[index].nx = m_heightMap[index2].nx;
m_terrainModel[index].ny = m_heightMap[index2].ny;
m_terrainModel[index].nz = m_heightMap[index2].nz;
m_terrainModel[index].r = m_heightMap[index2].r;
m_terrainModel[index].g = m_heightMap[index2].g;
m_terrainModel[index].b = m_heightMap[index2].b;
m_terrainModel[index].tu2 = tu2Right;
m_terrainModel[index].tv2 = tv2Top;
index++;
// Triangle 1 - Bottom left.
m_terrainModel[index].x = m_heightMap[index3].x;
m_terrainModel[index].y = m_heightMap[index3].y;
m_terrainModel[index].z = m_heightMap[index3].z;
m_terrainModel[index].tu = 0.0f;
m_terrainModel[index].tv = 1.0f;
m_terrainModel[index].nx = m_heightMap[index3].nx;
m_terrainModel[index].ny = m_heightMap[index3].ny;
m_terrainModel[index].nz = m_heightMap[index3].nz;
m_terrainModel[index].r = m_heightMap[index3].r;
m_terrainModel[index].g = m_heightMap[index3].g;
m_terrainModel[index].b = m_heightMap[index3].b;
m_terrainModel[index].tu2 = tu2Left;
m_terrainModel[index].tv2 = tv2Bottom;
index++;
// Triangle 2 - Bottom left.
m_terrainModel[index].x = m_heightMap[index3].x;
m_terrainModel[index].y = m_heightMap[index3].y;
m_terrainModel[index].z = m_heightMap[index3].z;
m_terrainModel[index].tu = 0.0f;
m_terrainModel[index].tv = 1.0f;
m_terrainModel[index].nx = m_heightMap[index3].nx;
m_terrainModel[index].ny = m_heightMap[index3].ny;
m_terrainModel[index].nz = m_heightMap[index3].nz;
m_terrainModel[index].r = m_heightMap[index3].r;
m_terrainModel[index].g = m_heightMap[index3].g;
m_terrainModel[index].b = m_heightMap[index3].b;
m_terrainModel[index].tu2 = tu2Left;
m_terrainModel[index].tv2 = tv2Bottom;
index++;
// Triangle 2 - Upper right.
m_terrainModel[index].x = m_heightMap[index2].x;
m_terrainModel[index].y = m_heightMap[index2].y;
m_terrainModel[index].z = m_heightMap[index2].z;
m_terrainModel[index].tu = 1.0f;
m_terrainModel[index].tv = 0.0f;
m_terrainModel[index].nx = m_heightMap[index2].nx;
m_terrainModel[index].ny = m_heightMap[index2].ny;
m_terrainModel[index].nz = m_heightMap[index2].nz;
m_terrainModel[index].r = m_heightMap[index2].r;
m_terrainModel[index].g = m_heightMap[index2].g;
m_terrainModel[index].b = m_heightMap[index2].b;
m_terrainModel[index].tu2 = tu2Right;
m_terrainModel[index].tv2 = tv2Top;
index++;
// Triangle 2 - Bottom right.
m_terrainModel[index].x = m_heightMap[index4].x;
m_terrainModel[index].y = m_heightMap[index4].y;
m_terrainModel[index].z = m_heightMap[index4].z;
m_terrainModel[index].tu = 1.0f;
m_terrainModel[index].tv = 1.0f;
m_terrainModel[index].nx = m_heightMap[index4].nx;
m_terrainModel[index].ny = m_heightMap[index4].ny;
m_terrainModel[index].nz = m_heightMap[index4].nz;
m_terrainModel[index].r = m_heightMap[index4].r;
m_terrainModel[index].g = m_heightMap[index4].g;
m_terrainModel[index].b = m_heightMap[index4].b;
m_terrainModel[index].tu2 = tu2Right;
m_terrainModel[index].tv2 = tv2Bottom;
index++;
// Increment the second tu texture coords.
tu2Left += incrementSize;
tu2Right += incrementSize;
// Reset the second tu texture coordinate increments.
if(tu2Right > 1.0f)
{
tu2Left = 0.0f;
tu2Right = incrementSize;
}
}
// Increment the second tv texture coords.
tv2Top += incrementSize;
tv2Bottom += incrementSize;
// Reset the second tu texture coordinate increments.
if(tv2Bottom > 1.0f)
{
tv2Top = 0.0f;
tv2Bottom = incrementSize;
}
}
return true;
}
void TerrainClass::ShutdownTerrainModel()
{
// Release the terrain model data.
if(m_terrainModel)
{
delete [] m_terrainModel;
m_terrainModel = 0;
}
return;
}
void TerrainClass::CalculateTerrainVectors()
{
int faceCount, i, index;
TempVertexType vertex1, vertex2, vertex3;
VectorType tangent, binormal;
// Calculate the number of faces in the terrain model.
faceCount = m_vertexCount / 3;
// Initialize the index to the model data.
index=0;
// Go through all the faces and calculate the the tangent, binormal, and normal vectors.
for(i=0; i<faceCount; i++)
{
// Get the three vertices for this face from the terrain model.
vertex1.x = m_terrainModel[index].x;
vertex1.y = m_terrainModel[index].y;
vertex1.z = m_terrainModel[index].z;
vertex1.tu = m_terrainModel[index].tu;
vertex1.tv = m_terrainModel[index].tv;
vertex1.nx = m_terrainModel[index].nx;
vertex1.ny = m_terrainModel[index].ny;
vertex1.nz = m_terrainModel[index].nz;
index++;
vertex2.x = m_terrainModel[index].x;
vertex2.y = m_terrainModel[index].y;
vertex2.z = m_terrainModel[index].z;
vertex2.tu = m_terrainModel[index].tu;
vertex2.tv = m_terrainModel[index].tv;
vertex2.nx = m_terrainModel[index].nx;
vertex2.ny = m_terrainModel[index].ny;
vertex2.nz = m_terrainModel[index].nz;
index++;
vertex3.x = m_terrainModel[index].x;
vertex3.y = m_terrainModel[index].y;
vertex3.z = m_terrainModel[index].z;
vertex3.tu = m_terrainModel[index].tu;
vertex3.tv = m_terrainModel[index].tv;
vertex3.nx = m_terrainModel[index].nx;
vertex3.ny = m_terrainModel[index].ny;
vertex3.nz = m_terrainModel[index].nz;
index++;
// Calculate the tangent and binormal of that face.
CalculateTangentBinormal(vertex1, vertex2, vertex3, tangent, binormal);
// Store the tangent and binormal for this face back in the model structure.
m_terrainModel[index-1].tx = tangent.x;
m_terrainModel[index-1].ty = tangent.y;
m_terrainModel[index-1].tz = tangent.z;
m_terrainModel[index-1].bx = binormal.x;
m_terrainModel[index-1].by = binormal.y;
m_terrainModel[index-1].bz = binormal.z;
m_terrainModel[index-2].tx = tangent.x;
m_terrainModel[index-2].ty = tangent.y;
m_terrainModel[index-2].tz = tangent.z;
m_terrainModel[index-2].bx = binormal.x;
m_terrainModel[index-2].by = binormal.y;
m_terrainModel[index-2].bz = binormal.z;
m_terrainModel[index-3].tx = tangent.x;
m_terrainModel[index-3].ty = tangent.y;
m_terrainModel[index-3].tz = tangent.z;
m_terrainModel[index-3].bx = binormal.x;
m_terrainModel[index-3].by = binormal.y;
m_terrainModel[index-3].bz = binormal.z;
}
return;
}
void TerrainClass::CalculateTangentBinormal(TempVertexType vertex1, TempVertexType vertex2, TempVertexType vertex3, VectorType& tangent, VectorType& binormal)
{
float vector1[3], vector2[3];
float tuVector[2], tvVector[2];
float den;
float length;
// Calculate the two vectors for this face.
vector1[0] = vertex2.x - vertex1.x;
vector1[1] = vertex2.y - vertex1.y;
vector1[2] = vertex2.z - vertex1.z;
vector2[0] = vertex3.x - vertex1.x;
vector2[1] = vertex3.y - vertex1.y;
vector2[2] = vertex3.z - vertex1.z;
// Calculate the tu and tv texture space vectors.
tuVector[0] = vertex2.tu - vertex1.tu;
tvVector[0] = vertex2.tv - vertex1.tv;
tuVector[1] = vertex3.tu - vertex1.tu;
tvVector[1] = vertex3.tv - vertex1.tv;
// Calculate the denominator of the tangent/binormal equation.
den = 1.0f / (tuVector[0] * tvVector[1] - tuVector[1] * tvVector[0]);
// Calculate the cross products and multiply by the coefficient to get the tangent and binormal.
tangent.x = (tvVector[1] * vector1[0] - tvVector[0] * vector2[0]) * den;
tangent.y = (tvVector[1] * vector1[1] - tvVector[0] * vector2[1]) * den;
tangent.z = (tvVector[1] * vector1[2] - tvVector[0] * vector2[2]) * den;
binormal.x = (tuVector[0] * vector2[0] - tuVector[1] * vector1[0]) * den;
binormal.y = (tuVector[0] * vector2[1] - tuVector[1] * vector1[1]) * den;
binormal.z = (tuVector[0] * vector2[2] - tuVector[1] * vector1[2]) * den;
// Calculate the length of the tangent.
length = (float)sqrt((tangent.x * tangent.x) + (tangent.y * tangent.y) + (tangent.z * tangent.z));
// Normalize the tangent and then store it.
tangent.x = tangent.x / length;
tangent.y = tangent.y / length;
tangent.z = tangent.z / length;
// Calculate the length of the binormal.
length = (float)sqrt((binormal.x * binormal.x) + (binormal.y * binormal.y) + (binormal.z * binormal.z));
// Normalize the binormal and then store it.
binormal.x = binormal.x / length;
binormal.y = binormal.y / length;
binormal.z = binormal.z / length;
return;
}
bool TerrainClass::LoadTerrainCells(ID3D11Device* device)
{
int cellHeight, cellWidth, cellRowCount, i, j, index;
bool result;
// Set the height and width of each terrain cell to a fixed 33x33 vertex array.
cellHeight = 33;
cellWidth = 33;
// Calculate the number of cells needed to store the terrain data.
cellRowCount = (m_terrainWidth-1) / (cellWidth-1);
m_cellCount = cellRowCount * cellRowCount;
// Create the terrain cell array.
m_TerrainCells = new TerrainCellClass[m_cellCount];
if(!m_TerrainCells)
{
return false;
}
// Loop through and initialize all the terrain cells.
for(j=0; j<cellRowCount; j++)
{
for(i=0; i<cellRowCount; i++)
{
index = (cellRowCount * j) + i;
result = m_TerrainCells[index].Initialize(device, m_terrainModel, i, j, cellHeight, cellWidth, m_terrainWidth);
if(!result)
{
return false;
}
}
}
return true;
}
void TerrainClass::ShutdownTerrainCells()
{
int i;
// Release the terrain cell array.
if(m_TerrainCells)
{
for(i=0; i<m_cellCount; i++)
{
m_TerrainCells[i].Shutdown();
}
delete [] m_TerrainCells;
m_TerrainCells = 0;
}
return;
}
bool TerrainClass::RenderCell(ID3D11DeviceContext* deviceContext, int cellId, FrustumClass* Frustum)
{
float maxWidth, maxHeight, maxDepth, minWidth, minHeight, minDepth;
bool result;
// Get the dimensions of the terrain cell.
m_TerrainCells[cellId].GetCellDimensions(maxWidth, maxHeight, maxDepth, minWidth, minHeight, minDepth);
// Check if the cell is visible. If it is not visible then just return and don't render it.
result = Frustum->CheckRectangle2(maxWidth, maxHeight, maxDepth, minWidth, minHeight, minDepth);
if(!result)
{
// Increment the number of cells that were culled.
m_cellsCulled++;
return false;
}
// If it is visible then render it.
m_TerrainCells[cellId].Render(deviceContext);
// Add the polygons in the cell to the render count.
m_renderCount += (m_TerrainCells[cellId].GetVertexCount() / 3);
// Increment the number of cells that were actually drawn.
m_cellsDrawn++;
return true;
}
void TerrainClass::RenderCellLines(ID3D11DeviceContext* deviceContext, int cellId)
{
m_TerrainCells[cellId].RenderLineBuffers(deviceContext);
return;
}
int TerrainClass::GetCellIndexCount(int cellId)
{
return m_TerrainCells[cellId].GetIndexCount();
}
int TerrainClass::GetCellLinesIndexCount(int cellId)
{
return m_TerrainCells[cellId].GetLineBuffersIndexCount();
}
int TerrainClass::GetCellCount()
{
return m_cellCount;
}
int TerrainClass::GetRenderCount()
{
return m_renderCount;
}
int TerrainClass::GetCellsDrawn()
{
return m_cellsDrawn;
}
int TerrainClass::GetCellsCulled()
{
return m_cellsCulled;
}
bool TerrainClass::GetHeightAtPosition(float inputX, float inputZ, float& height)
{
int i, cellId, index;
float vertex1[3], vertex2[3], vertex3[3];
bool foundHeight;
float maxWidth, maxHeight, maxDepth, minWidth, minHeight, minDepth;
// Loop through all of the terrain cells to find out which one the inputX and inputZ would be inside.
cellId = -1;
for(i=0; i<m_cellCount; i++)
{
// Get the current cell dimensions.
m_TerrainCells[i].GetCellDimensions(maxWidth, maxHeight, maxDepth, minWidth, minHeight, minDepth);
// Check to see if the positions are in this cell.
if((inputX < maxWidth) && (inputX > minWidth) && (inputZ < maxDepth) && (inputZ > minDepth))
{
cellId = i;
i = m_cellCount;
}
}
// If we didn't find a cell then the input position is off the terrain grid.
if(cellId == -1)
{
return false;
}
// If this is the right cell then check all the triangles in this cell to see what the height of the triangle at this position is.
for(i=0; i<(m_TerrainCells[cellId].GetVertexCount() / 3); i++)
{
index = i * 3;
vertex1[0] = m_TerrainCells[cellId].m_vertexList[index].x;
vertex1[1] = m_TerrainCells[cellId].m_vertexList[index].y;
vertex1[2] = m_TerrainCells[cellId].m_vertexList[index].z;
index++;
vertex2[0] = m_TerrainCells[cellId].m_vertexList[index].x;
vertex2[1] = m_TerrainCells[cellId].m_vertexList[index].y;
vertex2[2] = m_TerrainCells[cellId].m_vertexList[index].z;
index++;
vertex3[0] = m_TerrainCells[cellId].m_vertexList[index].x;
vertex3[1] = m_TerrainCells[cellId].m_vertexList[index].y;
vertex3[2] = m_TerrainCells[cellId].m_vertexList[index].z;
// Check to see if this is the polygon we are looking for.
foundHeight = CheckHeightOfTriangle(inputX, inputZ, height, vertex1, vertex2, vertex3);
if(foundHeight)
{
return true;
}
}
return false;
}
bool TerrainClass::CheckHeightOfTriangle(float x, float z, float& height, float v0[3], float v1[3], float v2[3])
{
float startVector[3], directionVector[3], edge1[3], edge2[3], normal[3];
float Q[3], e1[3], e2[3], e3[3], edgeNormal[3], temp[3];
float magnitude, D, denominator, numerator, t, determinant;
// Starting position of the ray that is being cast.
startVector[0] = x;
startVector[1] = 0.0f;
startVector[2] = z;
// The direction the ray is being cast.
directionVector[0] = 0.0f;
directionVector[1] = -1.0f;
directionVector[2] = 0.0f;
// Calculate the two edges from the three points given.
edge1[0] = v1[0] - v0[0];
edge1[1] = v1[1] - v0[1];
edge1[2] = v1[2] - v0[2];
edge2[0] = v2[0] - v0[0];
edge2[1] = v2[1] - v0[1];
edge2[2] = v2[2] - v0[2];
// Calculate the normal of the triangle from the two edges.
normal[0] = (edge1[1] * edge2[2]) - (edge1[2] * edge2[1]);
normal[1] = (edge1[2] * edge2[0]) - (edge1[0] * edge2[2]);
normal[2] = (edge1[0] * edge2[1]) - (edge1[1] * edge2[0]);
magnitude = (float)sqrt((normal[0] * normal[0]) + (normal[1] * normal[1]) + (normal[2] * normal[2]));
normal[0] = normal[0] / magnitude;
normal[1] = normal[1] / magnitude;
normal[2] = normal[2] / magnitude;
// Find the distance from the origin to the plane.
D = ((-normal[0] * v0[0]) + (-normal[1] * v0[1]) + (-normal[2] * v0[2]));
// Get the denominator of the equation.
denominator = ((normal[0] * directionVector[0]) + (normal[1] * directionVector[1]) + (normal[2] * directionVector[2]));
// Make sure the result doesn't get too close to zero to prevent divide by zero.
if(fabs(denominator) < 0.0001f)
{
return false;
}
// Get the numerator of the equation.
numerator = -1.0f * (((normal[0] * startVector[0]) + (normal[1] * startVector[1]) + (normal[2] * startVector[2])) + D);
// Calculate where we intersect the triangle.
t = numerator / denominator;
// Find the intersection vector.
Q[0] = startVector[0] + (directionVector[0] * t);
Q[1] = startVector[1] + (directionVector[1] * t);
Q[2] = startVector[2] + (directionVector[2] * t);
// Find the three edges of the triangle.
e1[0] = v1[0] - v0[0];
e1[1] = v1[1] - v0[1];
e1[2] = v1[2] - v0[2];
e2[0] = v2[0] - v1[0];
e2[1] = v2[1] - v1[1];
e2[2] = v2[2] - v1[2];
e3[0] = v0[0] - v2[0];
e3[1] = v0[1] - v2[1];
e3[2] = v0[2] - v2[2];
// Calculate the normal for the first edge.
edgeNormal[0] = (e1[1] * normal[2]) - (e1[2] * normal[1]);
edgeNormal[1] = (e1[2] * normal[0]) - (e1[0] * normal[2]);
edgeNormal[2] = (e1[0] * normal[1]) - (e1[1] * normal[0]);
// Calculate the determinant to see if it is on the inside, outside, or directly on the edge.
temp[0] = Q[0] - v0[0];
temp[1] = Q[1] - v0[1];
temp[2] = Q[2] - v0[2];
determinant = ((edgeNormal[0] * temp[0]) + (edgeNormal[1] * temp[1]) + (edgeNormal[2] * temp[2]));
// Check if it is outside.
if(determinant > 0.001f)
{
return false;
}
// Calculate the normal for the second edge.
edgeNormal[0] = (e2[1] * normal[2]) - (e2[2] * normal[1]);
edgeNormal[1] = (e2[2] * normal[0]) - (e2[0] * normal[2]);
edgeNormal[2] = (e2[0] * normal[1]) - (e2[1] * normal[0]);
// Calculate the determinant to see if it is on the inside, outside, or directly on the edge.
temp[0] = Q[0] - v1[0];
temp[1] = Q[1] - v1[1];
temp[2] = Q[2] - v1[2];
determinant = ((edgeNormal[0] * temp[0]) + (edgeNormal[1] * temp[1]) + (edgeNormal[2] * temp[2]));
// Check if it is outside.
if (determinant > 0.001f)
{
return false;
}
// Calculate the normal for the third edge.
edgeNormal[0] = (e3[1] * normal[2]) - (e3[2] * normal[1]);
edgeNormal[1] = (e3[2] * normal[0]) - (e3[0] * normal[2]);
edgeNormal[2] = (e3[0] * normal[1]) - (e3[1] * normal[0]);
// Calculate the determinant to see if it is on the inside, outside, or directly on the edge.
temp[0] = Q[0] - v2[0];
temp[1] = Q[1] - v2[1];
temp[2] = Q[2] - v2[2];
determinant = ((edgeNormal[0] * temp[0]) + (edgeNormal[1] * temp[1]) + (edgeNormal[2] * temp[2]));
// Check if it is outside.
if(determinant > 0.001f)
{
return false;
}
// Now we have our height.
height = Q[1];
return true;
}
Terraincellclass.h
////////////////////////////////////////////////////////////////////////////////
// Filename: terraincellclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _TERRAINCELLCLASS_H_
#define _TERRAINCELLCLASS_H_
//////////////
// INCLUDES //
//////////////
#include <d3d11.h>
#include <directxmath.h>
using namespace DirectX;
////////////////////////////////////////////////////////////////////////////////
// Class name: TerrainCellClass
////////////////////////////////////////////////////////////////////////////////
class TerrainCellClass
{
private:
Always remember the model type structure in TerrainCellClass must mimic the model type structure in TerrainClass.
struct ModelType
{
float x, y, z;
float tu, tv;
float nx, ny, nz;
float tx, ty, tz;
float bx, by, bz;
float r, g, b;
float tu2, tv2;
};
The vertex layout now includes the second set of texture coordinates.
struct VertexType
{
XMFLOAT3 position;
XMFLOAT2 texture;
XMFLOAT3 normal;
XMFLOAT3 tangent;
XMFLOAT3 binormal;
XMFLOAT3 color;
XMFLOAT2 texture2;
};
struct VectorType
{
float x, y, z;
};
struct ColorVertexType
{
XMFLOAT3 position;
XMFLOAT4 color;
};
public:
TerrainCellClass();
TerrainCellClass(const TerrainCellClass&);
~TerrainCellClass();
bool Initialize(ID3D11Device*, void*, int, int, int, int, int);
void Shutdown();
void Render(ID3D11DeviceContext*);
void RenderLineBuffers(ID3D11DeviceContext*);
int GetVertexCount();
int GetIndexCount();
int GetLineBuffersIndexCount();
void GetCellDimensions(float&, float&, float&, float&, float&, float&);
private:
bool InitializeBuffers(ID3D11Device*, int, int, int, int, int, ModelType*);
void ShutdownBuffers();
void RenderBuffers(ID3D11DeviceContext*);
void CalculateCellDimensions();
bool BuildLineBuffers(ID3D11Device*);
void ShutdownLineBuffers();
public:
VectorType* m_vertexList;
private:
int m_vertexCount, m_indexCount, m_lineIndexCount;
ID3D11Buffer *m_vertexBuffer, *m_indexBuffer, *m_lineVertexBuffer, *m_lineIndexBuffer;;
float m_maxWidth, m_maxHeight, m_maxDepth, m_minWidth, m_minHeight, m_minDepth;
float m_positionX, m_positionY, m_positionZ;
};
#endif
Terraincellclass.cpp
////////////////////////////////////////////////////////////////////////////////
// Filename: terraincellclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "terraincellclass.h"
TerrainCellClass::TerrainCellClass()
{
m_vertexList = 0;
m_vertexBuffer = 0;
m_indexBuffer = 0;
m_lineVertexBuffer = 0;
m_lineIndexBuffer = 0;
}
TerrainCellClass::TerrainCellClass(const TerrainCellClass& other)
{
}
TerrainCellClass::~TerrainCellClass()
{
}
bool TerrainCellClass::Initialize(ID3D11Device* device, void* terrainModelPtr, int nodeIndexX, int nodeIndexY,
int cellHeight, int cellWidth, int terrainWidth)
{
ModelType* terrainModel;
bool result;
// Coerce the pointer to the terrain model into the model type.
terrainModel = (ModelType*)terrainModelPtr;
// Load the rendering buffers with the terrain data for this cell index.
result = InitializeBuffers(device, nodeIndexX, nodeIndexY, cellHeight, cellWidth, terrainWidth, terrainModel);
if(!result)
{
return false;
}
// Release the pointer to the terrain model now that we no longer need it.
terrainModel = 0;
// Calculuate the dimensions of this cell.
CalculateCellDimensions();
// Build the debug line buffers to produce the bounding box around this cell.
result = BuildLineBuffers(device);
if(!result)
{
return false;
}
return true;
}
void TerrainCellClass::Shutdown()
{
// Release the line rendering buffers.
ShutdownLineBuffers();
// Release the cell rendering buffers.
ShutdownBuffers();
return;
}
void TerrainCellClass::Render(ID3D11DeviceContext* deviceContext)
{
// Put the vertex and index buffers on the graphics pipeline to prepare them for drawing.
RenderBuffers(deviceContext);
return;
}
int TerrainCellClass::GetVertexCount()
{
return m_vertexCount;
}
int TerrainCellClass::GetIndexCount()
{
return m_indexCount;
}
bool TerrainCellClass::InitializeBuffers(ID3D11Device* device, int nodeIndexX, int nodeIndexY, int cellHeight, int cellWidth,
int terrainWidth, ModelType* terrainModel)
{
VertexType* vertices;
unsigned long* indices;
int i, j, modelIndex, index;
D3D11_BUFFER_DESC vertexBufferDesc, indexBufferDesc;
D3D11_SUBRESOURCE_DATA vertexData, indexData;
HRESULT result;
// Calculate the number of vertices in this terrain cell.
m_vertexCount = (cellHeight - 1) * (cellWidth - 1) * 6;
// Set the index count to the same as the vertex count.
m_indexCount = m_vertexCount;
// Create the vertex array.
vertices = new VertexType[m_vertexCount];
if(!vertices)
{
return false;
}
// Create the index array.
indices = new unsigned long[m_indexCount];
if(!indices)
{
return false;
}
// Setup the indexes into the terrain model data and the local vertex/index array.
modelIndex = ((nodeIndexX * (cellWidth - 1)) + (nodeIndexY * (cellHeight - 1) * (terrainWidth - 1))) * 6;
index = 0;
When we build the vertex buffer for this terrain cell we now incorporate the second set of texture uv coordinates for distance normal mapping from the terrain model.
// Load the vertex array and index array with data.
for(j=0; j<(cellHeight - 1); j++)
{
for(i=0; i<((cellWidth - 1) * 6); i++)
{
vertices[index].position = XMFLOAT3(terrainModel[modelIndex].x, terrainModel[modelIndex].y, terrainModel[modelIndex].z);
vertices[index].texture = XMFLOAT2(terrainModel[modelIndex].tu, terrainModel[modelIndex].tv);
vertices[index].normal = XMFLOAT3(terrainModel[modelIndex].nx, terrainModel[modelIndex].ny, terrainModel[modelIndex].nz);
vertices[index].tangent = XMFLOAT3(terrainModel[modelIndex].tx, terrainModel[modelIndex].ty, terrainModel[modelIndex].tz);
vertices[index].binormal = XMFLOAT3(terrainModel[modelIndex].bx, terrainModel[modelIndex].by, terrainModel[modelIndex].bz);
vertices[index].color = XMFLOAT3(terrainModel[modelIndex].r, terrainModel[modelIndex].g, terrainModel[modelIndex].b);
vertices[index].texture2 = XMFLOAT2(terrainModel[modelIndex].tu2, terrainModel[modelIndex].tv2);
indices[index] = index;
modelIndex++;
index++;
}
modelIndex += (terrainWidth * 6) - (cellWidth * 6);
}
// Set up the description of the static vertex buffer.
vertexBufferDesc.Usage = D3D11_USAGE_DEFAULT;
vertexBufferDesc.ByteWidth = sizeof(VertexType) * m_vertexCount;
vertexBufferDesc.BindFlags = D3D11_BIND_VERTEX_BUFFER;
vertexBufferDesc.CPUAccessFlags = 0;
vertexBufferDesc.MiscFlags = 0;
vertexBufferDesc.StructureByteStride = 0;
// Give the subresource structure a pointer to the vertex data.
vertexData.pSysMem = vertices;
vertexData.SysMemPitch = 0;
vertexData.SysMemSlicePitch = 0;
// Now create the vertex buffer.
result = device->CreateBuffer(&vertexBufferDesc, &vertexData, &m_vertexBuffer);
if(FAILED(result))
{
return false;
}
// Set up the description of the static index buffer.
indexBufferDesc.Usage = D3D11_USAGE_DEFAULT;
indexBufferDesc.ByteWidth = sizeof(unsigned long) * m_indexCount;
indexBufferDesc.BindFlags = D3D11_BIND_INDEX_BUFFER;
indexBufferDesc.CPUAccessFlags = 0;
indexBufferDesc.MiscFlags = 0;
indexBufferDesc.StructureByteStride = 0;
// Give the subresource structure a pointer to the index data.
indexData.pSysMem = indices;
indexData.SysMemPitch = 0;
indexData.SysMemSlicePitch = 0;
// Create the index buffer.
result = device->CreateBuffer(&indexBufferDesc, &indexData, &m_indexBuffer);
if(FAILED(result))
{
return false;
}
// Create a public vertex array that will be used for accessing vertex information about this cell.
m_vertexList = new VectorType[m_vertexCount];
if(!m_vertexList)
{
return false;
}
// Keep a local copy of the vertex position data for this cell.
for(i=0; i<m_vertexCount; i++)
{
m_vertexList[i].x = vertices[i].position.x;
m_vertexList[i].y = vertices[i].position.y;
m_vertexList[i].z = vertices[i].position.z;
}
// Release the arrays now that the buffers have been created and loaded.
delete [] vertices;
vertices = 0;
delete [] indices;
indices = 0;
return true;
}
void TerrainCellClass::ShutdownBuffers()
{
// Release the public vertex list.
if(m_vertexList)
{
delete [] m_vertexList;
m_vertexList = 0;
}
// Release the index buffer.
if(m_indexBuffer)
{
m_indexBuffer->Release();
m_indexBuffer = 0;
}
// Release the vertex buffer.
if(m_vertexBuffer)
{
m_vertexBuffer->Release();
m_vertexBuffer = 0;
}
return;
}
void TerrainCellClass::RenderBuffers(ID3D11DeviceContext* deviceContext)
{
unsigned int stride;
unsigned int offset;
// Set vertex buffer stride and offset.
stride = sizeof(VertexType);
offset = 0;
// Set the vertex buffer to active in the input assembler so it can be rendered.
deviceContext->IASetVertexBuffers(0, 1, &m_vertexBuffer, &stride, &offset);
// Set the index buffer to active in the input assembler so it can be rendered.
deviceContext->IASetIndexBuffer(m_indexBuffer, DXGI_FORMAT_R32_UINT, 0);
// Set the type of primitive that should be rendered from this vertex buffer, in this case triangles.
deviceContext->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
return;
}
void TerrainCellClass::CalculateCellDimensions()
{
int i;
float width, height, depth;
// Initialize the dimensions of the node.
m_maxWidth = -1000000.0f;
m_maxHeight = -1000000.0f;
m_maxDepth = -1000000.0f;
m_minWidth = 1000000.0f;
m_minHeight = 1000000.0f;
m_minDepth = 1000000.0f;
for(i=0; i<m_vertexCount; i++)
{
width = m_vertexList[i].x;
height = m_vertexList[i].y;
depth = m_vertexList[i].z;
// Check if the width exceeds the minimum or maximum.
if(width > m_maxWidth)
{
m_maxWidth = width;
}
if(width < m_minWidth)
{
m_minWidth = width;
}
// Check if the height exceeds the minimum or maximum.
if(height > m_maxHeight)
{
m_maxHeight = height;
}
if(height < m_minHeight)
{
m_minHeight = height;
}
// Check if the depth exceeds the minimum or maximum.
if(depth > m_maxDepth)
{
m_maxDepth = depth;
}
if(depth < m_minDepth)
{
m_minDepth = depth;
}
}
// Calculate the center position of this cell.
m_positionX = (m_maxWidth - m_minWidth) + m_minWidth;
m_positionY = (m_maxHeight - m_minHeight) + m_minHeight;
m_positionZ = (m_maxDepth - m_minDepth) + m_minDepth;
return;
}
bool TerrainCellClass::BuildLineBuffers(ID3D11Device* device)
{
ColorVertexType* vertices;
unsigned long* indices;
D3D11_BUFFER_DESC vertexBufferDesc, indexBufferDesc;
D3D11_SUBRESOURCE_DATA vertexData, indexData;
HRESULT result;
XMFLOAT4 lineColor;
int index, vertexCount, indexCount;
// Set the color of the lines to orange.
lineColor = XMFLOAT4(1.0f, 0.5f, 0.0f, 1.0f);
// Set the number of vertices in the vertex array.
vertexCount = 24;
// Set the number of indices in the index array.
indexCount = vertexCount;
// Create the vertex array.
vertices = new ColorVertexType[vertexCount];
if(!vertices)
{
return false;
}
// Create the index array.
indices = new unsigned long[indexCount];
if(!indices)
{
return false;
}
// Set up the description of the vertex buffer.
vertexBufferDesc.Usage = D3D11_USAGE_DEFAULT;
vertexBufferDesc.ByteWidth = sizeof(ColorVertexType) * vertexCount;
vertexBufferDesc.BindFlags = D3D11_BIND_VERTEX_BUFFER;
vertexBufferDesc.CPUAccessFlags = 0;
vertexBufferDesc.MiscFlags = 0;
vertexBufferDesc.StructureByteStride = 0;
// Give the subresource structure a pointer to the vertex data.
vertexData.pSysMem = vertices;
vertexData.SysMemPitch = 0;
vertexData.SysMemSlicePitch = 0;
// Set up the description of the index buffer.
indexBufferDesc.Usage = D3D11_USAGE_DEFAULT;
indexBufferDesc.ByteWidth = sizeof(unsigned long) * indexCount;
indexBufferDesc.BindFlags = D3D11_BIND_INDEX_BUFFER;
indexBufferDesc.CPUAccessFlags = 0;
indexBufferDesc.MiscFlags = 0;
indexBufferDesc.StructureByteStride = 0;
// Give the subresource structure a pointer to the index data.
indexData.pSysMem = indices;
indexData.SysMemPitch = 0;
indexData.SysMemSlicePitch = 0;
// Load the vertex and index array with data.
index = 0;
// 8 Horizontal lines.
vertices[index].position = XMFLOAT3(m_minWidth, m_minHeight, m_minDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_maxWidth, m_minHeight, m_minDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_minWidth, m_minHeight, m_maxDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_maxWidth, m_minHeight, m_maxDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_minWidth, m_minHeight, m_minDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_minWidth, m_minHeight, m_maxDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_maxWidth, m_minHeight, m_minDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_maxWidth, m_minHeight, m_maxDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_minWidth, m_maxHeight, m_minDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_maxWidth, m_maxHeight, m_minDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_minWidth, m_maxHeight, m_maxDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_maxWidth, m_maxHeight, m_maxDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_minWidth, m_maxHeight, m_minDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_minWidth, m_maxHeight, m_maxDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_maxWidth, m_maxHeight, m_minDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_maxWidth, m_maxHeight, m_maxDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
// 4 Verticle lines.
vertices[index].position = XMFLOAT3(m_maxWidth, m_maxHeight, m_maxDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_maxWidth, m_minHeight, m_maxDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_minWidth, m_maxHeight, m_maxDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_minWidth, m_minHeight, m_maxDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_maxWidth, m_maxHeight, m_minDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_maxWidth, m_minHeight, m_minDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_minWidth, m_maxHeight, m_minDepth);
vertices[index].color = lineColor;
indices[index] = index;
index++;
vertices[index].position = XMFLOAT3(m_minWidth, m_minHeight, m_minDepth);
vertices[index].color = lineColor;
indices[index] = index;
// Create the vertex buffer.
result = device->CreateBuffer(&vertexBufferDesc, &vertexData, &m_lineVertexBuffer);
if(FAILED(result))
{
return false;
}
// Create the index buffer.
result = device->CreateBuffer(&indexBufferDesc, &indexData, &m_lineIndexBuffer);
if(FAILED(result))
{
return false;
}
// Store the index count for rendering.
m_lineIndexCount = indexCount;
// Release the arrays now that the vertex and index buffers have been created and loaded.
delete [] vertices;
vertices = 0;
delete [] indices;
indices = 0;
return true;
}
void TerrainCellClass::ShutdownLineBuffers()
{
// Release the index buffer.
if(m_lineIndexBuffer)
{
m_lineIndexBuffer->Release();
m_lineIndexBuffer = 0;
}
// Release the vertex buffer.
if(m_lineVertexBuffer)
{
m_lineVertexBuffer->Release();
m_lineVertexBuffer = 0;
}
return;
}
void TerrainCellClass::RenderLineBuffers(ID3D11DeviceContext* deviceContext)
{
unsigned int stride;
unsigned int offset;
// Set vertex buffer stride and offset.
stride = sizeof(ColorVertexType);
offset = 0;
// Set the vertex buffer to active in the input assembler so it can be rendered.
deviceContext->IASetVertexBuffers(0, 1, &m_lineVertexBuffer, &stride, &offset);
// Set the index buffer to active in the input assembler so it can be rendered.
deviceContext->IASetIndexBuffer(m_lineIndexBuffer, DXGI_FORMAT_R32_UINT, 0);
// Set the type of primitive that should be rendered from this vertex buffer, in this case lines.
deviceContext->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_LINELIST);
return;
}
int TerrainCellClass::GetLineBuffersIndexCount()
{
return m_lineIndexCount;
}
void TerrainCellClass::GetCellDimensions(float& maxWidth, float& maxHeight, float& maxDepth,
float& minWidth, float& minHeight, float& minDepth)
{
maxWidth = m_maxWidth;
maxHeight = m_maxHeight;
maxDepth = m_maxDepth;
minWidth = m_minWidth;
minHeight = m_minHeight;
minDepth = m_minDepth;
return;
}
Terrain.vs
The vertex shader has been modified to add both the new texture coordinates as well as a depth calculation that is sent to the pixel shader.
////////////////////////////////////////////////////////////////////////////////
// Filename: terrain.vs
////////////////////////////////////////////////////////////////////////////////
/////////////
// GLOBALS //
/////////////
cbuffer MatrixBuffer
{
matrix worldMatrix;
matrix viewMatrix;
matrix projectionMatrix;
};
//////////////
// TYPEDEFS //
//////////////
struct VertexInputType
{
float4 position : POSITION;
float2 tex : TEXCOORD0;
float3 normal : NORMAL;
float3 tangent : TANGENT;
float3 binormal : BINORMAL;
float3 color : COLOR;
float2 tex2 : TEXCOORD1;
};
struct PixelInputType
{
float4 position : SV_POSITION;
float2 tex : TEXCOORD0;
float3 normal : NORMAL;
float3 tangent : TANGENT;
float3 binormal : BINORMAL;
float4 color : COLOR;
float2 tex2 : TEXCOORD1;
float4 depthPosition : TEXCOORD2;
};
////////////////////////////////////////////////////////////////////////////////
// Vertex Shader
////////////////////////////////////////////////////////////////////////////////
PixelInputType TerrainVertexShader(VertexInputType input)
{
PixelInputType output;
// Change the position vector to be 4 units for proper matrix calculations.
input.position.w = 1.0f;
// Calculate the position of the vertex against the world, view, and projection matrices.
output.position = mul(input.position, worldMatrix);
output.position = mul(output.position, viewMatrix);
output.position = mul(output.position, projectionMatrix);
// Store the texture coordinates for the pixel shader.
output.tex = input.tex;
output.tex2 = input.tex2;
// Calculate the normal vector against the world matrix only and then normalize the final value.
output.normal = mul(input.normal, (float3x3)worldMatrix);
output.normal = normalize(output.normal);
// Calculate the tangent vector against the world matrix only and then normalize the final value.
output.tangent = mul(input.tangent, (float3x3)worldMatrix);
output.tangent = normalize(output.tangent);
// Calculate the binormal vector against the world matrix only and then normalize the final value.
output.binormal = mul(input.binormal, (float3x3)worldMatrix);
output.binormal = normalize(output.binormal);
// Store the input color for the pixel shader to use.
output.color = float4(input.color, 1.0f);
// Store the position value in a second input value for depth value calculations.
output.depthPosition = output.position;
return output;
}
Terrain.ps
In the modified terrain pixel shader we add a new normal map texture for the distance normal mapping.
The pixel input structure now has the second set of texture coordinates as well as the depth.
At the start of the shader we calculate the depth of this pixel using the input depth.
Then with that depth we sample either the regular normal map,
or if it is further away we now sample the distance normal map and use the second set of uv texture coordinates to do so.
Note we only do this with the rock material as the snow should not have a distance normal map since it should appear flat.
////////////////////////////////////////////////////////////////////////////////
// Filename: terrain.ps
////////////////////////////////////////////////////////////////////////////////
//////////////
// TEXTURES //
//////////////
Texture2D diffuseTexture1 : register(t0);
Texture2D normalTexture1 : register(t1);
Texture2D normalTexture2 : register(t2);
Texture2D normalTexture3 : register(t3);
//////////////
// SAMPLERS //
//////////////
SamplerState SampleType : register(s0);
//////////////////////
// CONSTANT BUFFERS //
//////////////////////
cbuffer LightBuffer
{
float4 diffuseColor;
float3 lightDirection;
float padding;
};
//////////////
// TYPEDEFS //
//////////////
struct PixelInputType
{
float4 position : SV_POSITION;
float2 tex : TEXCOORD0;
float3 normal : NORMAL;
float3 tangent : TANGENT;
float3 binormal : BINORMAL;
float4 color : COLOR;
float2 tex2 : TEXCOORD1;
float4 depthPosition : TEXCOORD2;
};
////////////////////////////////////////////////////////////////////////////////
// Pixel Shader
////////////////////////////////////////////////////////////////////////////////
float4 TerrainPixelShader(PixelInputType input) : SV_TARGET
{
float slope;
float3 lightDir;
float4 textureColor1;
float4 textureColor2;
float4 bumpMap;
float3 bumpNormal;
float lightIntensity;
float4 material1;
float4 material2;
float blendAmount;
float4 color;
float depthValue;
// Calculate the slope of this point.
slope = 1.0f - input.normal.y;
// Get the depth value of the pixel by dividing the Z pixel depth by the homogeneous W coordinate.
depthValue = input.depthPosition.z / input.depthPosition.w;
// Invert the light direction for calculations.
lightDir = -lightDirection;
// Setup the first material.
textureColor1 = diffuseTexture1.Sample(SampleType, input.tex);
// Select the normal map for the first material based on the distance.
if(depthValue > 0.998f)
{
bumpMap = normalTexture3.Sample(SampleType, input.tex2);
}
else
{
bumpMap = normalTexture1.Sample(SampleType, input.tex);
}
bumpMap = (bumpMap * 2.0f) - 1.0f;
bumpNormal = (bumpMap.x * input.tangent) + (bumpMap.y * input.binormal) + (bumpMap.z * input.normal);
bumpNormal = normalize(bumpNormal);
lightIntensity = saturate(dot(bumpNormal, lightDir));
material1 = saturate(textureColor1 * lightIntensity);
// Setup the second material.
textureColor2 = float4(1.0f, 1.0f, 1.0f, 1.0f); // Snow color.
bumpMap = normalTexture2.Sample(SampleType, input.tex);
bumpMap = (bumpMap * 2.0f) - 1.0f;
bumpNormal = (bumpMap.x * input.tangent) + (bumpMap.y * input.binormal) + (bumpMap.z * input.normal);
bumpNormal = normalize(bumpNormal);
lightIntensity = saturate(dot(bumpNormal, lightDir));
material2 = saturate(textureColor2 * lightIntensity);
// Determine which material to use based on slope.
if(slope < 0.2)
{
blendAmount = slope / 0.2f;
color = lerp(material2, material1, blendAmount);
}
if(slope >= 0.2)
{
color = material1;
}
return color;
}
Terrainshaderclass.h
The TerrainShaderClass now using an additional texture input for the distance normal map.
////////////////////////////////////////////////////////////////////////////////
// Filename: terrainshaderclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _TERRAINSHADERCLASS_H_
#define _TERRAINSHADERCLASS_H_
//////////////
// INCLUDES //
//////////////
#include <d3d11.h>
#include <d3dcompiler.h>
#include <directxmath.h>
#include <fstream>
using namespace DirectX;
using namespace std;
////////////////////////////////////////////////////////////////////////////////
// Class name: TerrainShaderClass
////////////////////////////////////////////////////////////////////////////////
class TerrainShaderClass
{
private:
struct MatrixBufferType
{
XMMATRIX world;
XMMATRIX view;
XMMATRIX projection;
};
struct LightBufferType
{
XMFLOAT4 diffuseColor;
XMFLOAT3 lightDirection;
float padding;
};
public:
TerrainShaderClass();
TerrainShaderClass(const TerrainShaderClass&);
~TerrainShaderClass();
bool Initialize(ID3D11Device*, HWND);
void Shutdown();
bool Render(ID3D11DeviceContext*, int, XMMATRIX, XMMATRIX, XMMATRIX, ID3D11ShaderResourceView*, ID3D11ShaderResourceView*,
ID3D11ShaderResourceView*, ID3D11ShaderResourceView*, XMFLOAT3, XMFLOAT4);
private:
bool InitializeShader(ID3D11Device*, HWND, WCHAR*, WCHAR*);
void ShutdownShader();
void OutputShaderErrorMessage(ID3D10Blob*, HWND, WCHAR*);
bool SetShaderParameters(ID3D11DeviceContext*, XMMATRIX, XMMATRIX, XMMATRIX, ID3D11ShaderResourceView*, ID3D11ShaderResourceView*,
ID3D11ShaderResourceView*, ID3D11ShaderResourceView*, XMFLOAT3, XMFLOAT4);
void RenderShader(ID3D11DeviceContext*, int);
private:
ID3D11VertexShader* m_vertexShader;
ID3D11PixelShader* m_pixelShader;
ID3D11InputLayout* m_layout;
ID3D11Buffer* m_matrixBuffer;
ID3D11SamplerState* m_sampleState;
ID3D11Buffer* m_lightBuffer;
};
#endif
Terrainshaderclass.cpp
////////////////////////////////////////////////////////////////////////////////
// Filename: terrainshaderclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "terrainshaderclass.h"
TerrainShaderClass::TerrainShaderClass()
{
m_vertexShader = 0;
m_pixelShader = 0;
m_layout = 0;
m_matrixBuffer = 0;
m_sampleState = 0;
m_lightBuffer = 0;
}
TerrainShaderClass::TerrainShaderClass(const TerrainShaderClass& other)
{
}
TerrainShaderClass::~TerrainShaderClass()
{
}
bool TerrainShaderClass::Initialize(ID3D11Device* device, HWND hwnd)
{
bool result;
// Initialize the vertex and pixel shaders.
result = InitializeShader(device, hwnd, L"../Engine/terrain.vs", L"../Engine/terrain.ps");
if(!result)
{
return false;
}
return true;
}
void TerrainShaderClass::Shutdown()
{
// Shutdown the vertex and pixel shaders as well as the related objects.
ShutdownShader();
return;
}
Render now uses an additional normal map input for the distance normal map.
bool TerrainShaderClass::Render(ID3D11DeviceContext* deviceContext, int indexCount, XMMATRIX worldMatrix, XMMATRIX viewMatrix,
XMMATRIX projectionMatrix, ID3D11ShaderResourceView* texture, ID3D11ShaderResourceView* normalMap,
ID3D11ShaderResourceView* normalMap2, ID3D11ShaderResourceView* normalMap3,
XMFLOAT3 lightDirection, XMFLOAT4 diffuseColor)
{
bool result;
// Set the shader parameters that it will use for rendering.
result = SetShaderParameters(deviceContext, worldMatrix, viewMatrix, projectionMatrix, texture, normalMap, normalMap2, normalMap3,
lightDirection, diffuseColor);
if(!result)
{
return false;
}
// Now render the prepared buffers with the shader.
RenderShader(deviceContext, indexCount);
return true;
}
bool TerrainShaderClass::InitializeShader(ID3D11Device* device, HWND hwnd, WCHAR* vsFilename, WCHAR* psFilename)
{
HRESULT result;
ID3D10Blob* errorMessage;
ID3D10Blob* vertexShaderBuffer;
ID3D10Blob* pixelShaderBuffer;
D3D11_INPUT_ELEMENT_DESC polygonLayout[7];
unsigned int numElements;
D3D11_BUFFER_DESC matrixBufferDesc;
D3D11_SAMPLER_DESC samplerDesc;
D3D11_BUFFER_DESC lightBufferDesc;
// Initialize the pointers this function will use to null.
errorMessage = 0;
vertexShaderBuffer = 0;
pixelShaderBuffer = 0;
// Compile the vertex shader code.
result = D3DCompileFromFile(vsFilename, NULL, NULL, "TerrainVertexShader", "vs_5_0", D3D10_SHADER_ENABLE_STRICTNESS, 0,
&vertexShaderBuffer, &errorMessage);
if(FAILED(result))
{
// If the shader failed to compile it should have writen something to the error message.
if(errorMessage)
{
OutputShaderErrorMessage(errorMessage, hwnd, vsFilename);
}
// If there was nothing in the error message then it simply could not find the shader file itself.
else
{
MessageBox(hwnd, vsFilename, L"Missing Shader File", MB_OK);
}
return false;
}
// Compile the pixel shader code.
result = D3DCompileFromFile(psFilename, NULL, NULL, "TerrainPixelShader", "ps_5_0", D3D10_SHADER_ENABLE_STRICTNESS, 0,
&pixelShaderBuffer, &errorMessage);
if(FAILED(result))
{
// If the shader failed to compile it should have writen something to the error message.
if(errorMessage)
{
OutputShaderErrorMessage(errorMessage, hwnd, psFilename);
}
// If there was nothing in the error message then it simply could not find the file itself.
else
{
MessageBox(hwnd, psFilename, L"Missing Shader File", MB_OK);
}
return false;
}
// Create the vertex shader from the buffer.
result = device->CreateVertexShader(vertexShaderBuffer->GetBufferPointer(), vertexShaderBuffer->GetBufferSize(), NULL, &m_vertexShader);
if(FAILED(result))
{
return false;
}
// Create the pixel shader from the buffer.
result = device->CreatePixelShader(pixelShaderBuffer->GetBufferPointer(), pixelShaderBuffer->GetBufferSize(), NULL, &m_pixelShader);
if(FAILED(result))
{
return false;
}
The polygon layout has been updated to include the second set of uv texture coordinates for the distance normal mapping.
// Create the vertex input layout description.
polygonLayout[0].SemanticName = "POSITION";
polygonLayout[0].SemanticIndex = 0;
polygonLayout[0].Format = DXGI_FORMAT_R32G32B32_FLOAT;
polygonLayout[0].InputSlot = 0;
polygonLayout[0].AlignedByteOffset = 0;
polygonLayout[0].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[0].InstanceDataStepRate = 0;
polygonLayout[1].SemanticName = "TEXCOORD";
polygonLayout[1].SemanticIndex = 0;
polygonLayout[1].Format = DXGI_FORMAT_R32G32_FLOAT;
polygonLayout[1].InputSlot = 0;
polygonLayout[1].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
polygonLayout[1].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[1].InstanceDataStepRate = 0;
polygonLayout[2].SemanticName = "NORMAL";
polygonLayout[2].SemanticIndex = 0;
polygonLayout[2].Format = DXGI_FORMAT_R32G32B32_FLOAT;
polygonLayout[2].InputSlot = 0;
polygonLayout[2].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
polygonLayout[2].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[2].InstanceDataStepRate = 0;
polygonLayout[3].SemanticName = "TANGENT";
polygonLayout[3].SemanticIndex = 0;
polygonLayout[3].Format = DXGI_FORMAT_R32G32B32_FLOAT;
polygonLayout[3].InputSlot = 0;
polygonLayout[3].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
polygonLayout[3].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[3].InstanceDataStepRate = 0;
polygonLayout[4].SemanticName = "BINORMAL";
polygonLayout[4].SemanticIndex = 0;
polygonLayout[4].Format = DXGI_FORMAT_R32G32B32_FLOAT;
polygonLayout[4].InputSlot = 0;
polygonLayout[4].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
polygonLayout[4].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[4].InstanceDataStepRate = 0;
polygonLayout[5].SemanticName = "COLOR";
polygonLayout[5].SemanticIndex = 0;
polygonLayout[5].Format = DXGI_FORMAT_R32G32B32_FLOAT;
polygonLayout[5].InputSlot = 0;
polygonLayout[5].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
polygonLayout[5].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[5].InstanceDataStepRate = 0;
polygonLayout[6].SemanticName = "TEXCOORD";
polygonLayout[6].SemanticIndex = 1;
polygonLayout[6].Format = DXGI_FORMAT_R32G32_FLOAT;
polygonLayout[6].InputSlot = 0;
polygonLayout[6].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
polygonLayout[6].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[6].InstanceDataStepRate = 0;
// Get a count of the elements in the layout.
numElements = sizeof(polygonLayout) / sizeof(polygonLayout[0]);
// Create the vertex input layout.
result = device->CreateInputLayout(polygonLayout, numElements, vertexShaderBuffer->GetBufferPointer(),
vertexShaderBuffer->GetBufferSize(), &m_layout);
if(FAILED(result))
{
return false;
}
// Release the vertex shader buffer and pixel shader buffer since they are no longer needed.
vertexShaderBuffer->Release();
vertexShaderBuffer = 0;
pixelShaderBuffer->Release();
pixelShaderBuffer = 0;
// Setup the description of the dynamic matrix constant buffer that is in the vertex shader.
matrixBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
matrixBufferDesc.ByteWidth = sizeof(MatrixBufferType);
matrixBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
matrixBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
matrixBufferDesc.MiscFlags = 0;
matrixBufferDesc.StructureByteStride = 0;
// Create the constant buffer pointer so we can access the vertex shader constant buffer from within this class.
result = device->CreateBuffer(&matrixBufferDesc, NULL, &m_matrixBuffer);
if(FAILED(result))
{
return false;
}
// Create a texture sampler state description.
samplerDesc.Filter = D3D11_FILTER_MIN_MAG_MIP_LINEAR;
samplerDesc.AddressU = D3D11_TEXTURE_ADDRESS_CLAMP;
samplerDesc.AddressV = D3D11_TEXTURE_ADDRESS_CLAMP;
samplerDesc.AddressW = D3D11_TEXTURE_ADDRESS_CLAMP;
samplerDesc.MipLODBias = 0.0f;
samplerDesc.MaxAnisotropy = 1;
samplerDesc.ComparisonFunc = D3D11_COMPARISON_ALWAYS;
samplerDesc.BorderColor[0] = 0;
samplerDesc.BorderColor[1] = 0;
samplerDesc.BorderColor[2] = 0;
samplerDesc.BorderColor[3] = 0;
samplerDesc.MinLOD = 0;
samplerDesc.MaxLOD = D3D11_FLOAT32_MAX;
// Create the texture sampler state.
result = device->CreateSamplerState(&samplerDesc, &m_sampleState);
if(FAILED(result))
{
return false;
}
// Setup the description of the light dynamic constant buffer that is in the pixel shader.
lightBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
lightBufferDesc.ByteWidth = sizeof(LightBufferType);
lightBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
lightBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
lightBufferDesc.MiscFlags = 0;
lightBufferDesc.StructureByteStride = 0;
// Create the constant buffer pointer so we can access the pixel shader constant buffer from within this class.
result = device->CreateBuffer(&lightBufferDesc, NULL, &m_lightBuffer);
if(FAILED(result))
{
return false;
}
return true;
}
void TerrainShaderClass::ShutdownShader()
{
// Release the light constant buffer.
if(m_lightBuffer)
{
m_lightBuffer->Release();
m_lightBuffer = 0;
}
// Release the sampler state.
if(m_sampleState)
{
m_sampleState->Release();
m_sampleState = 0;
}
// Release the matrix constant buffer.
if(m_matrixBuffer)
{
m_matrixBuffer->Release();
m_matrixBuffer = 0;
}
// Release the layout.
if(m_layout)
{
m_layout->Release();
m_layout = 0;
}
// Release the pixel shader.
if(m_pixelShader)
{
m_pixelShader->Release();
m_pixelShader = 0;
}
// Release the vertex shader.
if(m_vertexShader)
{
m_vertexShader->Release();
m_vertexShader = 0;
}
return;
}
void TerrainShaderClass::OutputShaderErrorMessage(ID3D10Blob* errorMessage, HWND hwnd, WCHAR* shaderFilename)
{
char* compileErrors;
unsigned long long bufferSize, i;
ofstream fout;
// Get a pointer to the error message text buffer.
compileErrors = (char*)(errorMessage->GetBufferPointer());
// Get the length of the message.
bufferSize = errorMessage->GetBufferSize();
// Open a file to write the error message to.
fout.open("shader-error.txt");
// Write out the error message.
for(i=0; i<bufferSize; i++)
{
fout << compileErrors[i];
}
// Close the file.
fout.close();
// Release the error message.
errorMessage->Release();
errorMessage = 0;
// Pop a message up on the screen to notify the user to check the text file for compile errors.
MessageBox(hwnd, L"Error compiling shader. Check shader-error.txt for message.", shaderFilename, MB_OK);
return;
}
The SetShaderParameter function now takes the new distance normal map as input.
bool TerrainShaderClass::SetShaderParameters(ID3D11DeviceContext* deviceContext, XMMATRIX worldMatrix, XMMATRIX viewMatrix,
XMMATRIX projectionMatrix, ID3D11ShaderResourceView* texture, ID3D11ShaderResourceView* normalMap,
ID3D11ShaderResourceView* normalMap2, ID3D11ShaderResourceView* normalMap3,
XMFLOAT3 lightDirection, XMFLOAT4 diffuseColor)
{
HRESULT result;
D3D11_MAPPED_SUBRESOURCE mappedResource;
MatrixBufferType* dataPtr;
unsigned int bufferNumber;
LightBufferType* dataPtr2;
// Transpose the matrices to prepare them for the shader.
worldMatrix = XMMatrixTranspose(worldMatrix);
viewMatrix = XMMatrixTranspose(viewMatrix);
projectionMatrix = XMMatrixTranspose(projectionMatrix);
// Lock the constant buffer so it can be written to.
result = deviceContext->Map(m_matrixBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
if(FAILED(result))
{
return false;
}
// Get a pointer to the data in the constant buffer.
dataPtr = (MatrixBufferType*)mappedResource.pData;
// Copy the matrices into the constant buffer.
dataPtr->world = worldMatrix;
dataPtr->view = viewMatrix;
dataPtr->projection = projectionMatrix;
// Unlock the constant buffer.
deviceContext->Unmap(m_matrixBuffer, 0);
// Set the position of the constant buffer in the vertex shader.
bufferNumber = 0;
// Finanly set the constant buffer in the vertex shader with the updated values.
deviceContext->VSSetConstantBuffers(bufferNumber, 1, &m_matrixBuffer);
The distance normal map is set in the pixel shader here.
// Set shader texture resources in the pixel shader.
deviceContext->PSSetShaderResources(0, 1, &texture);
deviceContext->PSSetShaderResources(1, 1, &normalMap);
deviceContext->PSSetShaderResources(2, 1, &normalMap2);
deviceContext->PSSetShaderResources(3, 1, &normalMap3);
// Lock the light constant buffer so it can be written to.
result = deviceContext->Map(m_lightBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
if(FAILED(result))
{
return false;
}
// Get a pointer to the data in the light constant buffer.
dataPtr2 = (LightBufferType*)mappedResource.pData;
// Copy the lighting variables into the constant buffer.
dataPtr2->diffuseColor = diffuseColor;
dataPtr2->lightDirection = lightDirection;
dataPtr2->padding = 0.0f;
// Unlock the light constant buffer.
deviceContext->Unmap(m_lightBuffer, 0);
// Set the position of the light constant buffer in the pixel shader.
bufferNumber = 0;
// Finally set the light constant buffer in the pixel shader with the updated values.
deviceContext->PSSetConstantBuffers(bufferNumber, 1, &m_lightBuffer);
return true;
}
void TerrainShaderClass::RenderShader(ID3D11DeviceContext* deviceContext, int indexCount)
{
// Set the vertex input layout.
deviceContext->IASetInputLayout(m_layout);
// Set the vertex and pixel shaders that will be used to render.
deviceContext->VSSetShader(m_vertexShader, NULL, 0);
deviceContext->PSSetShader(m_pixelShader, NULL, 0);
// Set the sampler state in the pixel shader.
deviceContext->PSSetSamplers(0, 1, &m_sampleState);
// Render the polygon data.
deviceContext->DrawIndexed(indexCount, 0, 0);
return;
}
Shadermanagerclass.h
The RenderTerrainShader now takes the new distance normal map as input.
////////////////////////////////////////////////////////////////////////////////
// Filename: shadermanagerclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _SHADERMANAGERCLASS_H_
#define _SHADERMANAGERCLASS_H_
///////////////////////
// MY CLASS INCLUDES //
///////////////////////
#include "d3dclass.h"
#include "colorshaderclass.h"
#include "textureshaderclass.h"
#include "lightshaderclass.h"
#include "fontshaderclass.h"
#include "skydomeshaderclass.h"
#include "terrainshaderclass.h"
////////////////////////////////////////////////////////////////////////////////
// Class name: ShaderManagerClass
////////////////////////////////////////////////////////////////////////////////
class ShaderManagerClass
{
public:
ShaderManagerClass();
ShaderManagerClass(const ShaderManagerClass&);
~ShaderManagerClass();
bool Initialize(ID3D11Device*, HWND);
void Shutdown();
bool RenderColorShader(ID3D11DeviceContext*, int, XMMATRIX, XMMATRIX, XMMATRIX);
bool RenderTextureShader(ID3D11DeviceContext*, int, XMMATRIX, XMMATRIX, XMMATRIX, ID3D11ShaderResourceView*);
bool RenderLightShader(ID3D11DeviceContext*, int, XMMATRIX, XMMATRIX, XMMATRIX, ID3D11ShaderResourceView*, XMFLOAT3, XMFLOAT4);
bool RenderFontShader(ID3D11DeviceContext*, int, XMMATRIX, XMMATRIX, XMMATRIX, ID3D11ShaderResourceView*, XMFLOAT4);
bool RenderSkyDomeShader(ID3D11DeviceContext*, int, XMMATRIX, XMMATRIX, XMMATRIX, XMFLOAT4, XMFLOAT4);
bool RenderTerrainShader(ID3D11DeviceContext*, int, XMMATRIX, XMMATRIX, XMMATRIX, ID3D11ShaderResourceView*, ID3D11ShaderResourceView*,
ID3D11ShaderResourceView*, ID3D11ShaderResourceView*, XMFLOAT3, XMFLOAT4);
private:
ColorShaderClass* m_ColorShader;
TextureShaderClass* m_TextureShader;
LightShaderClass* m_LightShader;
FontShaderClass* m_FontShader;
SkyDomeShaderClass* m_SkyDomeShader;
TerrainShaderClass* m_TerrainShader;
};
#endif
Shadermanagerclass.cpp
////////////////////////////////////////////////////////////////////////////////
// Filename: shadermanagerclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "shadermanagerclass.h"
ShaderManagerClass::ShaderManagerClass()
{
m_ColorShader = 0;
m_TextureShader = 0;
m_LightShader = 0;
m_FontShader = 0;
m_SkyDomeShader = 0;
m_TerrainShader = 0;
}
ShaderManagerClass::ShaderManagerClass(const ShaderManagerClass& other)
{
}
ShaderManagerClass::~ShaderManagerClass()
{
}
bool ShaderManagerClass::Initialize(ID3D11Device* device, HWND hwnd)
{
bool result;
// Create the color shader object.
m_ColorShader = new ColorShaderClass;
if(!m_ColorShader)
{
return false;
}
// Initialize the color shader object.
result = m_ColorShader->Initialize(device, hwnd);
if(!result)
{
return false;
}
// Create the texture shader object.
m_TextureShader = new TextureShaderClass;
if(!m_TextureShader)
{
return false;
}
// Initialize the texture shader object.
result = m_TextureShader->Initialize(device, hwnd);
if(!result)
{
return false;
}
// Create the light shader object.
m_LightShader = new LightShaderClass;
if(!m_LightShader)
{
return false;
}
// Initialize the light shader object.
result = m_LightShader->Initialize(device, hwnd);
if(!result)
{
return false;
}
// Create the font shader object.
m_FontShader = new FontShaderClass;
if(!m_FontShader)
{
return false;
}
// Initialize the font shader object.
result = m_FontShader->Initialize(device, hwnd);
if(!result)
{
return false;
}
// Create the sky dome shader object.
m_SkyDomeShader = new SkyDomeShaderClass;
if(!m_SkyDomeShader)
{
return false;
}
// Initialize the sky dome shader object.
result = m_SkyDomeShader->Initialize(device, hwnd);
if(!result)
{
return false;
}
// Create the terrain shader object.
m_TerrainShader = new TerrainShaderClass;
if (!m_TerrainShader)
{
return false;
}
// Initialize the terrain shader object.
result = m_TerrainShader->Initialize(device, hwnd);
if (!result)
{
return false;
}
return true;
}
void ShaderManagerClass::Shutdown()
{
// Release the terrain shader object.
if (m_TerrainShader)
{
m_TerrainShader->Shutdown();
delete m_TerrainShader;
m_TerrainShader = 0;
}
// Release the sky dome shader object.
if (m_SkyDomeShader)
{
m_SkyDomeShader->Shutdown();
delete m_SkyDomeShader;
m_SkyDomeShader = 0;
}
// Release the font shader object.
if(m_FontShader)
{
m_FontShader->Shutdown();
delete m_FontShader;
m_FontShader = 0;
}
// Release the light shader object.
if(m_LightShader)
{
m_LightShader->Shutdown();
delete m_LightShader;
m_LightShader = 0;
}
// Release the texture shader object.
if(m_TextureShader)
{
m_TextureShader->Shutdown();
delete m_TextureShader;
m_TextureShader = 0;
}
// Release the color shader object.
if(m_ColorShader)
{
m_ColorShader->Shutdown();
delete m_ColorShader;
m_ColorShader = 0;
}
return;
}
bool ShaderManagerClass::RenderColorShader(ID3D11DeviceContext* deviceContext, int indexCount, XMMATRIX worldMatrix, XMMATRIX viewMatrix,
XMMATRIX projectionMatrix)
{
return m_ColorShader->Render(deviceContext, indexCount, worldMatrix, viewMatrix, projectionMatrix);
}
bool ShaderManagerClass::RenderTextureShader(ID3D11DeviceContext* deviceContext, int indexCount, XMMATRIX worldMatrix, XMMATRIX viewMatrix,
XMMATRIX projectionMatrix, ID3D11ShaderResourceView* texture)
{
return m_TextureShader->Render(deviceContext, indexCount, worldMatrix, viewMatrix, projectionMatrix, texture);
}
bool ShaderManagerClass::RenderLightShader(ID3D11DeviceContext* deviceContext, int indexCount, XMMATRIX worldMatrix, XMMATRIX viewMatrix,
XMMATRIX projectionMatrix, ID3D11ShaderResourceView* texture, XMFLOAT3 lightDirection,
XMFLOAT4 diffuseColor)
{
return m_LightShader->Render(deviceContext, indexCount, worldMatrix, viewMatrix, projectionMatrix, texture, lightDirection, diffuseColor);
}
bool ShaderManagerClass::RenderFontShader(ID3D11DeviceContext* deviceContext, int indexCount, XMMATRIX worldMatrix, XMMATRIX viewMatrix,
XMMATRIX projectionMatrix, ID3D11ShaderResourceView* texture, XMFLOAT4 color)
{
return m_FontShader->Render(deviceContext, indexCount, worldMatrix, viewMatrix, projectionMatrix, texture, color);
}
bool ShaderManagerClass::RenderSkyDomeShader(ID3D11DeviceContext* deviceContext, int indexCount, XMMATRIX worldMatrix, XMMATRIX viewMatrix,
XMMATRIX projectionMatrix, XMFLOAT4 apexColor, XMFLOAT4 centerColor)
{
return m_SkyDomeShader->Render(deviceContext, indexCount, worldMatrix, viewMatrix, projectionMatrix, apexColor, centerColor);
}
The RenderTerrainShader function now takes a third normal map as input to be used for the new distance normal map.
bool ShaderManagerClass::RenderTerrainShader(ID3D11DeviceContext* deviceContext, int indexCount, XMMATRIX worldMatrix, XMMATRIX viewMatrix,
XMMATRIX projectionMatrix, ID3D11ShaderResourceView* texture, ID3D11ShaderResourceView* normalMap,
ID3D11ShaderResourceView* normalMap2, ID3D11ShaderResourceView* normalMap3,
XMFLOAT3 lightDirection, XMFLOAT4 diffuseColor)
{
return m_TerrainShader->Render(deviceContext, indexCount, worldMatrix, viewMatrix, projectionMatrix, texture, normalMap, normalMap2, normalMap3,
lightDirection, diffuseColor);
}
Applicationclass.h
///////////////////////////////////////////////////////////////////////////////
// Filename: applicationclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _APPLICATIONCLASS_H_
#define _APPLICATIONCLASS_H_
/////////////
// GLOBALS //
/////////////
const bool FULL_SCREEN = true;
const bool VSYNC_ENABLED = true;
const float SCREEN_DEPTH = 1500.0f;
const float SCREEN_NEAR = 0.1f;
///////////////////////
// MY CLASS INCLUDES //
///////////////////////
#include "inputclass.h"
#include "d3dclass.h"
#include "shadermanagerclass.h"
#include "texturemanagerclass.h"
#include "timerclass.h"
#include "fpsclass.h"
#include "zoneclass.h"
////////////////////////////////////////////////////////////////////////////////
// Class name: ApplicationClass
////////////////////////////////////////////////////////////////////////////////
class ApplicationClass
{
public:
ApplicationClass();
ApplicationClass(const ApplicationClass&);
~ApplicationClass();
bool Initialize(HINSTANCE, HWND, int, int);
void Shutdown();
bool Frame();
private:
InputClass* m_Input;
D3DClass* m_Direct3D;
ShaderManagerClass* m_ShaderManager;
TextureManagerClass* m_TextureManager;
TimerClass* m_Timer;
FpsClass* m_Fps;
ZoneClass* m_Zone;
};
#endif
Applicationclass.cpp
////////////////////////////////////////////////////////////////////////////////
// Filename: applicationclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "applicationclass.h"
ApplicationClass::ApplicationClass()
{
m_Input = 0;
m_Direct3D = 0;
m_Timer = 0;
m_Fps = 0;
m_ShaderManager = 0;
m_TextureManager = 0;
m_Zone = 0;
}
ApplicationClass::ApplicationClass(const ApplicationClass& other)
{
}
ApplicationClass::~ApplicationClass()
{
}
bool ApplicationClass::Initialize(HINSTANCE hinstance, HWND hwnd, int screenWidth, int screenHeight)
{
bool result;
// Create the input object.
m_Input = new InputClass;
if (!m_Input)
{
return false;
}
// Initialize the input object.
result = m_Input->Initialize(hinstance, hwnd, screenWidth, screenHeight);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the input object.", L"Error", MB_OK);
return false;
}
// Create the Direct3D object.
m_Direct3D = new D3DClass;
if(!m_Direct3D)
{
return false;
}
// Initialize the Direct3D object.
result = m_Direct3D->Initialize(screenWidth, screenHeight, VSYNC_ENABLED, hwnd, FULL_SCREEN, SCREEN_DEPTH, SCREEN_NEAR);
if(!result)
{
MessageBox(hwnd, L"Could not initialize Direct3D.", L"Error", MB_OK);
return false;
}
// Create the shader manager object.
m_ShaderManager = new ShaderManagerClass;
if(!m_ShaderManager)
{
return false;
}
// Initialize the shader manager object.
result = m_ShaderManager->Initialize(m_Direct3D->GetDevice(), hwnd);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the shader manager object.", L"Error", MB_OK);
return false;
}
// Create the texture manager object.
m_TextureManager = new TextureManagerClass;
if(!m_TextureManager)
{
return false;
}
// Initialize the texture manager object.
result = m_TextureManager->Initialize(10);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the texture manager object.", L"Error", MB_OK);
return false;
}
// Load textures into the texture manager.
result = m_TextureManager->LoadTexture(m_Direct3D->GetDevice(), m_Direct3D->GetDeviceContext(), "../Engine/data/textures/rock01d.tga", 0);
if(!result)
{
return false;
}
result = m_TextureManager->LoadTexture(m_Direct3D->GetDevice(), m_Direct3D->GetDeviceContext(), "../Engine/data/textures/rock01n.tga", 1);
if(!result)
{
return false;
}
result = m_TextureManager->LoadTexture(m_Direct3D->GetDevice(), m_Direct3D->GetDeviceContext(), "../Engine/data/textures/snow01n.tga", 2);
if(!result)
{
return false;
}
The distance normal map texture is loaded into the texture manager using id number three.
result = m_TextureManager->LoadTexture(m_Direct3D->GetDevice(), m_Direct3D->GetDeviceContext(), "../Engine/data/textures/distance01n.tga", 3);
if(!result)
{
return false;
}
// Create the timer object.
m_Timer = new TimerClass;
if(!m_Timer)
{
return false;
}
// Initialize the timer object.
result = m_Timer->Initialize();
if(!result)
{
MessageBox(hwnd, L"Could not initialize the timer object.", L"Error", MB_OK);
return false;
}
// Create the fps object.
m_Fps = new FpsClass;
if(!m_Fps)
{
return false;
}
// Initialize the fps object.
m_Fps->Initialize();
// Create the zone object.
m_Zone = new ZoneClass;
if(!m_Zone)
{
return false;
}
// Initialize the zone object.
result = m_Zone->Initialize(m_Direct3D, hwnd, screenWidth, screenHeight, SCREEN_DEPTH);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the zone object.", L"Error", MB_OK);
return false;
}
return true;
}
void ApplicationClass::Shutdown()
{
// Release the zone object.
if(m_Zone)
{
m_Zone->Shutdown();
delete m_Zone;
m_Zone = 0;
}
// Release the fps object.
if(m_Fps)
{
delete m_Fps;
m_Fps = 0;
}
// Release the timer object.
if(m_Timer)
{
delete m_Timer;
m_Timer = 0;
}
// Release the texture manager object.
if(m_TextureManager)
{
m_TextureManager->Shutdown();
delete m_TextureManager;
m_TextureManager = 0;
}
// Release the shader manager object.
if(m_ShaderManager)
{
m_ShaderManager->Shutdown();
delete m_ShaderManager;
m_ShaderManager = 0;
}
// Release the Direct3D object.
if(m_Direct3D)
{
m_Direct3D->Shutdown();
delete m_Direct3D;
m_Direct3D = 0;
}
// Release the input object.
if(m_Input)
{
m_Input->Shutdown();
delete m_Input;
m_Input = 0;
}
return;
}
bool ApplicationClass::Frame()
{
bool result;
// Update the system stats.
m_Fps->Frame();
m_Timer->Frame();
// Do the input frame processing.
result = m_Input->Frame();
if(!result)
{
return false;
}
// Check if the user pressed escape and wants to exit the application.
if(m_Input->IsEscapePressed() == true)
{
return false;
}
// Do the zone frame processing.
result = m_Zone->Frame(m_Direct3D, m_Input, m_ShaderManager, m_TextureManager, m_Timer->GetTime(), m_Fps->GetFps());
if(!result)
{
return false;
}
return result;
}
Zoneclass.h
////////////////////////////////////////////////////////////////////////////////
// Filename: zoneclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _ZONECLASS_H_
#define _ZONECLASS_H_
///////////////////////
// MY CLASS INCLUDES //
///////////////////////
#include "d3dclass.h"
#include "inputclass.h"
#include "shadermanagerclass.h"
#include "texturemanagerclass.h"
#include "timerclass.h"
#include "userinterfaceclass.h"
#include "cameraclass.h"
#include "lightclass.h"
#include "positionclass.h"
#include "frustumclass.h"
#include "skydomeclass.h"
#include "terrainclass.h"
////////////////////////////////////////////////////////////////////////////////
// Class name: ZoneClass
////////////////////////////////////////////////////////////////////////////////
class ZoneClass
{
public:
ZoneClass();
ZoneClass(const ZoneClass&);
~ZoneClass();
bool Initialize(D3DClass*, HWND, int, int, float);
void Shutdown();
bool Frame(D3DClass*, InputClass*, ShaderManagerClass*, TextureManagerClass*, float, int);
private:
void HandleMovementInput(InputClass*, float);
bool Render(D3DClass*, ShaderManagerClass*, TextureManagerClass*);
private:
UserInterfaceClass* m_UserInterface;
CameraClass* m_Camera;
LightClass* m_Light;
PositionClass* m_Position;
FrustumClass* m_Frustum;
SkyDomeClass* m_SkyDome;
TerrainClass* m_Terrain;
bool m_displayUI, m_wireFrame, m_cellLines, m_heightLocked;
};
#endif
Zoneclass.cpp
////////////////////////////////////////////////////////////////////////////////
// Filename: zoneclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "zoneclass.h"
ZoneClass::ZoneClass()
{
m_UserInterface = 0;
m_Camera = 0;
m_Light = 0;
m_Position = 0;
m_Frustum = 0;
m_SkyDome = 0;
m_Terrain = 0;
}
ZoneClass::ZoneClass(const ZoneClass& other)
{
}
ZoneClass::~ZoneClass()
{
}
bool ZoneClass::Initialize(D3DClass* Direct3D, HWND hwnd, int screenWidth, int screenHeight, float screenDepth)
{
bool result;
// Create the user interface object.
m_UserInterface = new UserInterfaceClass;
if(!m_UserInterface)
{
return false;
}
// Initialize the user interface object.
result = m_UserInterface->Initialize(Direct3D, screenHeight, screenWidth);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the user interface object.", L"Error", MB_OK);
return false;
}
// Create the camera object.
m_Camera = new CameraClass;
if(!m_Camera)
{
return false;
}
// Set the initial position of the camera and build the matrices needed for rendering.
m_Camera->SetPosition(0.0f, 0.0f, -10.0f);
m_Camera->Render();
m_Camera->RenderBaseViewMatrix();
// Create the light object.
m_Light = new LightClass;
if(!m_Light)
{
return false;
}
// Initialize the light object.
m_Light->SetDiffuseColor(1.0f, 1.0f, 1.0f, 1.0f);
m_Light->SetDirection(-0.5f, -1.0f, -0.5f);
// Create the position object.
m_Position = new PositionClass;
if(!m_Position)
{
return false;
}
// Set the initial position and rotation.
m_Position->SetPosition(512.5f, 10.0f, 10.0f);
m_Position->SetRotation(0.0f, 0.0f, 0.0f);
// Create the frustum object.
m_Frustum = new FrustumClass;
if(!m_Frustum)
{
return false;
}
// Initialize the frustum object.
m_Frustum->Initialize(screenDepth);
// Create the sky dome object.
m_SkyDome = new SkyDomeClass;
if(!m_SkyDome)
{
return false;
}
// Initialize the sky dome object.
result = m_SkyDome->Initialize(Direct3D->GetDevice());
if(!result)
{
MessageBox(hwnd, L"Could not initialize the sky dome object.", L"Error", MB_OK);
return false;
}
// Create the terrain object.
m_Terrain = new TerrainClass;
if(!m_Terrain)
{
return false;
}
// Initialize the terrain object.
result = m_Terrain->Initialize(Direct3D->GetDevice(), "../Engine/data/setup.txt");
if(!result)
{
MessageBox(hwnd, L"Could not initialize the terrain object.", L"Error", MB_OK);
return false;
}
// Set the UI to display by default.
m_displayUI = true;
// Set wire frame rendering initially to disabled.
m_wireFrame = false;
// Set the rendering of cell lines initially to disabled.
m_cellLines = false;
// Set the user locked to the terrain height for movement.
m_heightLocked = true;
return true;
}
void ZoneClass::Shutdown()
{
// Release the terrain object.
if(m_Terrain)
{
m_Terrain->Shutdown();
delete m_Terrain;
m_Terrain = 0;
}
// Release the sky dome object.
if(m_SkyDome)
{
m_SkyDome->Shutdown();
delete m_SkyDome;
m_SkyDome = 0;
}
// Release the frustum object.
if(m_Frustum)
{
delete m_Frustum;
m_Frustum = 0;
}
// Release the position object.
if(m_Position)
{
delete m_Position;
m_Position = 0;
}
// Release the light object.
if(m_Light)
{
delete m_Light;
m_Light = 0;
}
// Release the camera object.
if(m_Camera)
{
delete m_Camera;
m_Camera = 0;
}
// Release the user interface object.
if(m_UserInterface)
{
m_UserInterface->Shutdown();
delete m_UserInterface;
m_UserInterface = 0;
}
return;
}
bool ZoneClass::Frame(D3DClass* Direct3D, InputClass* Input, ShaderManagerClass* ShaderManager, TextureManagerClass* TextureManager,
float frameTime, int fps)
{
bool result, foundHeight;
float posX, posY, posZ, rotX, rotY, rotZ, height;
// Do the frame input processing.
HandleMovementInput(Input, frameTime);
// Get the view point position/rotation.
m_Position->GetPosition(posX, posY, posZ);
m_Position->GetRotation(rotX, rotY, rotZ);
// Do the frame processing for the user interface.
result = m_UserInterface->Frame(Direct3D->GetDeviceContext(), fps, posX, posY, posZ, rotX, rotY, rotZ);
if(!result)
{
return false;
}
// Do the terrain frame processing.
m_Terrain->Frame();
// If the height is locked to the terrain then position the camera on top of it.
if(m_heightLocked)
{
// Get the height of the triangle that is directly underneath the given camera position.
foundHeight = m_Terrain->GetHeightAtPosition(posX, posZ, height);
if(foundHeight)
{
// If there was a triangle under the camera then position the camera just above it by one meter.
m_Position->SetPosition(posX, height + 1.0f, posZ);
m_Camera->SetPosition(posX, height + 1.0f, posZ);
}
}
// Render the graphics.
result = Render(Direct3D, ShaderManager, TextureManager);
if(!result)
{
return false;
}
return true;
}
void ZoneClass::HandleMovementInput(InputClass* Input, float frameTime)
{
bool keyDown;
float posX, posY, posZ, rotX, rotY, rotZ;
// Set the frame time for calculating the updated position.
m_Position->SetFrameTime(frameTime);
// Handle the input.
keyDown = Input->IsLeftPressed();
m_Position->TurnLeft(keyDown);
keyDown = Input->IsRightPressed();
m_Position->TurnRight(keyDown);
keyDown = Input->IsUpPressed();
m_Position->MoveForward(keyDown);
keyDown = Input->IsDownPressed();
m_Position->MoveBackward(keyDown);
keyDown = Input->IsAPressed();
m_Position->MoveUpward(keyDown);
keyDown = Input->IsZPressed();
m_Position->MoveDownward(keyDown);
keyDown = Input->IsPgUpPressed();
m_Position->LookUpward(keyDown);
keyDown = Input->IsPgDownPressed();
m_Position->LookDownward(keyDown);
// Get the view point position/rotation.
m_Position->GetPosition(posX, posY, posZ);
m_Position->GetRotation(rotX, rotY, rotZ);
// Set the position of the camera.
m_Camera->SetPosition(posX, posY, posZ);
m_Camera->SetRotation(rotX, rotY, rotZ);
// Determine if the user interface should be displayed or not.
if(Input->IsF1Toggled())
{
m_displayUI = !m_displayUI;
}
// Determine if the terrain should be rendered in wireframe or not.
if(Input->IsF2Toggled())
{
m_wireFrame = !m_wireFrame;
}
// Determine if we should render the lines around each terrain cell.
if(Input->IsF3Toggled())
{
m_cellLines = !m_cellLines;
}
// Determine if we should be locked to the terrain height when we move around or not.
if(Input->IsF4Toggled())
{
m_heightLocked = !m_heightLocked;
}
return;
}
bool ZoneClass::Render(D3DClass* Direct3D, ShaderManagerClass* ShaderManager, TextureManagerClass* TextureManager)
{
XMMATRIX worldMatrix, viewMatrix, projectionMatrix, baseViewMatrix, orthoMatrix;
bool result;
XMFLOAT3 cameraPosition;
int i;
// Generate the view matrix based on the camera's position.
m_Camera->Render();
// Get the world, view, and projection matrices from the camera and d3d objects.
Direct3D->GetWorldMatrix(worldMatrix);
m_Camera->GetViewMatrix(viewMatrix);
Direct3D->GetProjectionMatrix(projectionMatrix);
m_Camera->GetBaseViewMatrix(baseViewMatrix);
Direct3D->GetOrthoMatrix(orthoMatrix);
// Get the position of the camera.
cameraPosition = m_Camera->GetPosition();
// Construct the frustum.
m_Frustum->ConstructFrustum(projectionMatrix, viewMatrix);
// Clear the buffers to begin the scene.
Direct3D->BeginScene(0.0f, 0.0f, 0.0f, 1.0f);
// Turn off back face culling and turn off the Z buffer.
Direct3D->TurnOffCulling();
Direct3D->TurnZBufferOff();
// Translate the sky dome to be centered around the camera position.
worldMatrix = XMMatrixTranslation(cameraPosition.x, cameraPosition.y, cameraPosition.z);
// Render the sky dome using the sky dome shader.
m_SkyDome->Render(Direct3D->GetDeviceContext());
result = ShaderManager->RenderSkyDomeShader(Direct3D->GetDeviceContext(), m_SkyDome->GetIndexCount(), worldMatrix, viewMatrix,
projectionMatrix, m_SkyDome->GetApexColor(), m_SkyDome->GetCenterColor());
if(!result)
{
return false;
}
// Reset the world matrix.
Direct3D->GetWorldMatrix(worldMatrix);
// Turn the Z buffer back and back face culling on.
Direct3D->TurnZBufferOn();
Direct3D->TurnOnCulling();
// Turn on wire frame rendering of the terrain if needed.
if(m_wireFrame)
{
Direct3D->EnableWireframe();
}
// Render the terrain cells (and cell lines if needed).
for(i=0; i<m_Terrain->GetCellCount(); i++)
{
// Render each terrain cell if it is visible only.
result = m_Terrain->RenderCell(Direct3D->GetDeviceContext(), i, m_Frustum);
if(result)
{
The terrain cell is now rendered with the additional distance normal map texture.
// Render the cell buffers using the hgih quality terrain shader.
result = ShaderManager->RenderTerrainShader(Direct3D->GetDeviceContext(), m_Terrain->GetCellIndexCount(i), worldMatrix, viewMatrix,
projectionMatrix, TextureManager->GetTexture(0), TextureManager->GetTexture(1),
TextureManager->GetTexture(2), TextureManager->GetTexture(3),
m_Light->GetDirection(), m_Light->GetDiffuseColor());
if(!result)
{
return false;
}
// If needed then render the bounding box around this terrain cell using the color shader.
if(m_cellLines)
{
m_Terrain->RenderCellLines(Direct3D->GetDeviceContext(), i);
ShaderManager->RenderColorShader(Direct3D->GetDeviceContext(), m_Terrain->GetCellLinesIndexCount(i), worldMatrix,
viewMatrix, projectionMatrix);
if(!result)
{
return false;
}
}
}
}
// Turn off wire frame rendering of the terrain if it was on.
if(m_wireFrame)
{
Direct3D->DisableWireframe();
}
// Update the render counts in the UI.
result = m_UserInterface->UpdateRenderCounts(Direct3D->GetDeviceContext(), m_Terrain->GetRenderCount(), m_Terrain->GetCellsDrawn(),
m_Terrain->GetCellsCulled());
if(!result)
{
return false;
}
// Render the user interface.
if(m_displayUI)
{
result = m_UserInterface->Render(Direct3D, ShaderManager, worldMatrix, baseViewMatrix, orthoMatrix);
if(!result)
{
return false;
}
}
// Present the rendered scene to the screen.
Direct3D->EndScene();
return true;
}
Summary
The appearance of our distant terrain has been improved by the use of a distance normal map.
To Do Exercises
1. Recompile the code in 64 bit mode and run the program. Move around watching the effect your distance has on the appearance of the new distance normal map.
2. Create your own distance normal map.
3. Play around with the depth value to modify when the distance normal map or the high quality normal map is be used.
4. Try a different mapping other than one normal map per cell.
5. If your terrain generator supports it then output a normal map for each section of your terrain.
Source Code
Source Code and Data Files: dx11ter14_src.zip
Executable: dx11ter14_exe.zip
