Tutorial 4: Terrain Texturing
This tutorial will cover how apply a single texture to a terrain model using C++ with DirectX 11 and HLSL. The code in this tutorial is based on the previous terrain tutorial.
The easiest way to texture a terrain is just to apply a single texture to each quad in the terrain. However this creates a highly repeatable pattern that doesn't look very good on high poly terrains. The other extreme is to map a single high resolution texture over the entire terrain grid. The down side to this is if the terrain is somewhat sizable the details in the texture get stretched too far and once again creates an unrealistic look to the terrain.
The best solution when using a single texture for terrain is to instead use a high detail texture and map it several times evenly over then terrain grid. The number of times to map it over the terrain is dependent on the amount of detail in the texture itself. You can create the illusion of a much larger terrain by using a texture that has a lot of fine detail in it. As well the reverse applies too so you can use a texture with less fine details and it will change the terrain look to appear smaller. The real key is using a texture that has the right amount of detail and repeating it just the right amount of times to create the terrain look you are going for.
We will start the tutorial by examining the terrain HLSL shader files which have been updated to accommodate textured terrain.
Terrain.vs
////////////////////////////////////////////////////////////////////////////////
// Filename: terrain.vs
////////////////////////////////////////////////////////////////////////////////
/////////////
// GLOBALS //
/////////////
cbuffer MatrixBuffer
{
matrix worldMatrix;
matrix viewMatrix;
matrix projectionMatrix;
};
//////////////
// TYPEDEFS //
//////////////
Both the vertex and pixel input structures have a new texture coordinate component.
struct VertexInputType
{
float4 position : POSITION;
float2 tex : TEXCOORD0;
float3 normal : NORMAL;
};
struct PixelInputType
{
float4 position : SV_POSITION;
float2 tex : TEXCOORD0;
float3 normal : NORMAL;
};
////////////////////////////////////////////////////////////////////////////////
// Vertex Shader
////////////////////////////////////////////////////////////////////////////////
PixelInputType TerrainVertexShader(VertexInputType input)
{
PixelInputType output;
// Change the position vector to be 4 units for proper matrix calculations.
input.position.w = 1.0f;
// Calculate the position of the vertex against the world, view, and projection matrices.
output.position = mul(input.position, worldMatrix);
output.position = mul(output.position, viewMatrix);
output.position = mul(output.position, projectionMatrix);
The texture coordinates are now sent into the pixel shader.
// Store the texture coordinates for the pixel shader.
output.tex = input.tex;
// Calculate the normal vector against the world matrix only.
output.normal = mul(input.normal, (float3x3)worldMatrix);
// Normalize the normal vector.
output.normal = normalize(output.normal);
return output;
}
Terrain.ps
//////////////////////////////////////////////////////////////////////////////// // Filename: terrain.ps //////////////////////////////////////////////////////////////////////////////// ///////////// // GLOBALS // /////////////
We add a texture shader resource for the terrain texture.
Texture2D shaderTexture;
SamplerState SampleType;
cbuffer LightBuffer
{
float4 ambientColor;
float4 diffuseColor;
float3 lightDirection;
float padding;
};
//////////////
// TYPEDEFS //
//////////////
Just like the vertex shader file we add a texture coordinate component to the pixel input type structure.
struct PixelInputType
{
float4 position : SV_POSITION;
float2 tex : TEXCOORD0;
float3 normal : NORMAL;
};
////////////////////////////////////////////////////////////////////////////////
// Pixel Shader
////////////////////////////////////////////////////////////////////////////////
float4 TerrainPixelShader(PixelInputType input) : SV_TARGET
{
float4 textureColor;
float3 lightDir;
float lightIntensity;
float4 color;
The pixel shader now starts by first sampling the terrain texture for the pixel at this location.
// Sample the pixel color from the texture using the sampler at this texture coordinate location.
textureColor = shaderTexture.Sample(SampleType, input.tex);
// Set the default output color to the ambient light value for all pixels.
color = ambientColor;
// Invert the light direction for calculations.
lightDir = -lightDirection;
// Calculate the amount of light on this pixel.
lightIntensity = saturate(dot(input.normal, lightDir));
if(lightIntensity > 0.0f)
{
// Determine the final diffuse color based on the diffuse color and the amount of light intensity.
color += (diffuseColor * lightIntensity);
}
// Saturate the final light color.
color = saturate(color);
The texture pixel is combined with the light color to create the final color result.
// Multiply the texture pixel and the final light color to get the result.
color = color * textureColor;
return color;
}
Terrainshaderclass.h
The TerrainShaderClass has been updated to accommodate texturing.
////////////////////////////////////////////////////////////////////////////////
// Filename: terrainshaderclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _TERRAINSHADERCLASS_H_
#define _TERRAINSHADERCLASS_H_
//////////////
// INCLUDES //
//////////////
#include <d3d11.h>
#include <d3dx10math.h>
#include <d3dx11async.h>
#include <fstream>
using namespace std;
////////////////////////////////////////////////////////////////////////////////
// Class name: TerrainShaderClass
////////////////////////////////////////////////////////////////////////////////
class TerrainShaderClass
{
private:
struct MatrixBufferType
{
D3DXMATRIX world;
D3DXMATRIX view;
D3DXMATRIX projection;
};
struct LightBufferType
{
D3DXVECTOR4 ambientColor;
D3DXVECTOR4 diffuseColor;
D3DXVECTOR3 lightDirection;
float padding;
};
public:
TerrainShaderClass();
TerrainShaderClass(const TerrainShaderClass&);
~TerrainShaderClass();
bool Initialize(ID3D11Device*, HWND);
void Shutdown();
bool Render(ID3D11DeviceContext*, int, D3DXMATRIX, D3DXMATRIX, D3DXMATRIX, D3DXVECTOR4, D3DXVECTOR4, D3DXVECTOR3, ID3D11ShaderResourceView*);
private:
bool InitializeShader(ID3D11Device*, HWND, WCHAR*, WCHAR*);
void ShutdownShader();
void OutputShaderErrorMessage(ID3D10Blob*, HWND, WCHAR*);
bool SetShaderParameters(ID3D11DeviceContext*, D3DXMATRIX, D3DXMATRIX, D3DXMATRIX, D3DXVECTOR4, D3DXVECTOR4, D3DXVECTOR3, ID3D11ShaderResourceView*);
void RenderShader(ID3D11DeviceContext*, int);
private:
ID3D11VertexShader* m_vertexShader;
ID3D11PixelShader* m_pixelShader;
ID3D11InputLayout* m_layout;
ID3D11SamplerState* m_sampleState;
ID3D11Buffer* m_matrixBuffer;
ID3D11Buffer* m_lightBuffer;
};
#endif
Terrainshaderclass.cpp
////////////////////////////////////////////////////////////////////////////////
// Filename: terrainshaderclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "terrainshaderclass.h"
TerrainShaderClass::TerrainShaderClass()
{
m_vertexShader = 0;
m_pixelShader = 0;
m_layout = 0;
m_sampleState = 0;
m_matrixBuffer = 0;
m_lightBuffer = 0;
}
TerrainShaderClass::TerrainShaderClass(const TerrainShaderClass& other)
{
}
TerrainShaderClass::~TerrainShaderClass()
{
}
bool TerrainShaderClass::Initialize(ID3D11Device* device, HWND hwnd)
{
bool result;
// Initialize the vertex and pixel shaders.
result = InitializeShader(device, hwnd, L"../Engine/terrain.vs", L"../Engine/terrain.ps");
if(!result)
{
return false;
}
return true;
}
void TerrainShaderClass::Shutdown()
{
// Shutdown the vertex and pixel shaders as well as the related objects.
ShutdownShader();
return;
}
The Render function now takes a texture resource as input and sends it into the SetShaderParameter function before calling RenderShader.
bool TerrainShaderClass::Render(ID3D11DeviceContext* deviceContext, int indexCount, D3DXMATRIX worldMatrix, D3DXMATRIX viewMatrix,
D3DXMATRIX projectionMatrix, D3DXVECTOR4 ambientColor, D3DXVECTOR4 diffuseColor, D3DXVECTOR3 lightDirection,
ID3D11ShaderResourceView* texture)
{
bool result;
// Set the shader parameters that it will use for rendering.
result = SetShaderParameters(deviceContext, worldMatrix, viewMatrix, projectionMatrix, ambientColor, diffuseColor, lightDirection, texture);
if(!result)
{
return false;
}
// Now render the prepared buffers with the shader.
RenderShader(deviceContext, indexCount);
return true;
}
bool TerrainShaderClass::InitializeShader(ID3D11Device* device, HWND hwnd, WCHAR* vsFilename, WCHAR* psFilename)
{
HRESULT result;
ID3D10Blob* errorMessage;
ID3D10Blob* vertexShaderBuffer;
ID3D10Blob* pixelShaderBuffer;
We will be adding a third element to the polygon layout.
D3D11_INPUT_ELEMENT_DESC polygonLayout[3];
unsigned int numElements;
D3D11_SAMPLER_DESC samplerDesc;
D3D11_BUFFER_DESC matrixBufferDesc;
D3D11_BUFFER_DESC lightBufferDesc;
// Initialize the pointers this function will use to null.
errorMessage = 0;
vertexShaderBuffer = 0;
pixelShaderBuffer = 0;
// Compile the vertex shader code.
result = D3DX11CompileFromFile(vsFilename, NULL, NULL, "TerrainVertexShader", "vs_5_0", D3D10_SHADER_ENABLE_STRICTNESS, 0, NULL,
&vertexShaderBuffer, &errorMessage, NULL);
if(FAILED(result))
{
// If the shader failed to compile it should have writen something to the error message.
if(errorMessage)
{
OutputShaderErrorMessage(errorMessage, hwnd, vsFilename);
}
// If there was nothing in the error message then it simply could not find the shader file itself.
else
{
MessageBox(hwnd, vsFilename, L"Missing Shader File", MB_OK);
}
return false;
}
// Compile the pixel shader code.
result = D3DX11CompileFromFile(psFilename, NULL, NULL, "TerrainPixelShader", "ps_5_0", D3D10_SHADER_ENABLE_STRICTNESS, 0, NULL,
&pixelShaderBuffer, &errorMessage, NULL);
if(FAILED(result))
{
// If the shader failed to compile it should have writen something to the error message.
if(errorMessage)
{
OutputShaderErrorMessage(errorMessage, hwnd, psFilename);
}
// If there was nothing in the error message then it simply could not find the file itself.
else
{
MessageBox(hwnd, psFilename, L"Missing Shader File", MB_OK);
}
return false;
}
// Create the vertex shader from the buffer.
result = device->CreateVertexShader(vertexShaderBuffer->GetBufferPointer(), vertexShaderBuffer->GetBufferSize(), NULL, &m_vertexShader);
if(FAILED(result))
{
return false;
}
// Create the pixel shader from the buffer.
result = device->CreatePixelShader(pixelShaderBuffer->GetBufferPointer(), pixelShaderBuffer->GetBufferSize(), NULL, &m_pixelShader);
if(FAILED(result))
{
return false;
}
// Create the vertex input layout description.
polygonLayout[0].SemanticName = "POSITION";
polygonLayout[0].SemanticIndex = 0;
polygonLayout[0].Format = DXGI_FORMAT_R32G32B32_FLOAT;
polygonLayout[0].InputSlot = 0;
polygonLayout[0].AlignedByteOffset = 0;
polygonLayout[0].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[0].InstanceDataStepRate = 0;
The polygon layout for the terrain has changed. It now has an additional element called TEXCOORD which will be used for tu and tv texture coordinates. The normals have been moved to the third element in the polygon layout.
polygonLayout[1].SemanticName = "TEXCOORD";
polygonLayout[1].SemanticIndex = 0;
polygonLayout[1].Format = DXGI_FORMAT_R32G32_FLOAT;
polygonLayout[1].InputSlot = 0;
polygonLayout[1].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
polygonLayout[1].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[1].InstanceDataStepRate = 0;
polygonLayout[2].SemanticName = "NORMAL";
polygonLayout[2].SemanticIndex = 0;
polygonLayout[2].Format = DXGI_FORMAT_R32G32B32_FLOAT;
polygonLayout[2].InputSlot = 0;
polygonLayout[2].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
polygonLayout[2].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[2].InstanceDataStepRate = 0;
// Get a count of the elements in the layout.
numElements = sizeof(polygonLayout) / sizeof(polygonLayout[0]);
// Create the vertex input layout.
result = device->CreateInputLayout(polygonLayout, numElements, vertexShaderBuffer->GetBufferPointer(), vertexShaderBuffer->GetBufferSize(),
&m_layout);
if(FAILED(result))
{
return false;
}
// Release the vertex shader buffer and pixel shader buffer since they are no longer needed.
vertexShaderBuffer->Release();
vertexShaderBuffer = 0;
pixelShaderBuffer->Release();
pixelShaderBuffer = 0;
// Create a texture sampler state description.
samplerDesc.Filter = D3D11_FILTER_MIN_MAG_MIP_LINEAR;
samplerDesc.AddressU = D3D11_TEXTURE_ADDRESS_WRAP;
samplerDesc.AddressV = D3D11_TEXTURE_ADDRESS_WRAP;
samplerDesc.AddressW = D3D11_TEXTURE_ADDRESS_WRAP;
samplerDesc.MipLODBias = 0.0f;
samplerDesc.MaxAnisotropy = 1;
samplerDesc.ComparisonFunc = D3D11_COMPARISON_ALWAYS;
samplerDesc.BorderColor[0] = 0;
samplerDesc.BorderColor[1] = 0;
samplerDesc.BorderColor[2] = 0;
samplerDesc.BorderColor[3] = 0;
samplerDesc.MinLOD = 0;
samplerDesc.MaxLOD = D3D11_FLOAT32_MAX;
// Create the texture sampler state.
result = device->CreateSamplerState(&samplerDesc, &m_sampleState);
if(FAILED(result))
{
return false;
}
// Setup the description of the dynamic matrix constant buffer that is in the vertex shader.
matrixBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
matrixBufferDesc.ByteWidth = sizeof(MatrixBufferType);
matrixBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
matrixBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
matrixBufferDesc.MiscFlags = 0;
matrixBufferDesc.StructureByteStride = 0;
// Create the constant buffer pointer so we can access the vertex shader constant buffer from within this class.
result = device->CreateBuffer(&matrixBufferDesc, NULL, &m_matrixBuffer);
if(FAILED(result))
{
return false;
}
// Setup the description of the light dynamic constant buffer that is in the pixel shader.
// Note that ByteWidth always needs to be a multiple of 16 if using D3D11_BIND_CONSTANT_BUFFER or CreateBuffer will fail.
lightBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
lightBufferDesc.ByteWidth = sizeof(LightBufferType);
lightBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
lightBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
lightBufferDesc.MiscFlags = 0;
lightBufferDesc.StructureByteStride = 0;
// Create the constant buffer pointer so we can access the vertex shader constant buffer from within this class.
result = device->CreateBuffer(&lightBufferDesc, NULL, &m_lightBuffer);
if(FAILED(result))
{
return false;
}
return true;
}
void TerrainShaderClass::ShutdownShader()
{
// Release the light constant buffer.
if(m_lightBuffer)
{
m_lightBuffer->Release();
m_lightBuffer = 0;
}
// Release the matrix constant buffer.
if(m_matrixBuffer)
{
m_matrixBuffer->Release();
m_matrixBuffer = 0;
}
// Release the sampler state.
if(m_sampleState)
{
m_sampleState->Release();
m_sampleState = 0;
}
// Release the layout.
if(m_layout)
{
m_layout->Release();
m_layout = 0;
}
// Release the pixel shader.
if(m_pixelShader)
{
m_pixelShader->Release();
m_pixelShader = 0;
}
// Release the vertex shader.
if(m_vertexShader)
{
m_vertexShader->Release();
m_vertexShader = 0;
}
return;
}
void TerrainShaderClass::OutputShaderErrorMessage(ID3D10Blob* errorMessage, HWND hwnd, WCHAR* shaderFilename)
{
char* compileErrors;
unsigned long bufferSize, i;
ofstream fout;
// Get a pointer to the error message text buffer.
compileErrors = (char*)(errorMessage->GetBufferPointer());
// Get the length of the message.
bufferSize = errorMessage->GetBufferSize();
// Open a file to write the error message to.
fout.open("shader-error.txt");
// Write out the error message.
for(i=0; i<bufferSize; i++)
{
fout << compileErrors[i];
}
// Close the file.
fout.close();
// Release the error message.
errorMessage->Release();
errorMessage = 0;
// Pop a message up on the screen to notify the user to check the text file for compile errors.
MessageBox(hwnd, L"Error compiling shader. Check shader-error.txt for message.", shaderFilename, MB_OK);
return;
}
SetShaderParameters now takes as input the new terrain texture resource which it then sets in the pixel shader.
bool TerrainShaderClass::SetShaderParameters(ID3D11DeviceContext* deviceContext, D3DXMATRIX worldMatrix, D3DXMATRIX viewMatrix,
D3DXMATRIX projectionMatrix, D3DXVECTOR4 ambientColor, D3DXVECTOR4 diffuseColor, D3DXVECTOR3 lightDirection,
ID3D11ShaderResourceView* texture)
{
HRESULT result;
D3D11_MAPPED_SUBRESOURCE mappedResource;
unsigned int bufferNumber;
MatrixBufferType* dataPtr;
LightBufferType* dataPtr2;
// Transpose the matrices to prepare them for the shader.
D3DXMatrixTranspose(&worldMatrix, &worldMatrix);
D3DXMatrixTranspose(&viewMatrix, &viewMatrix);
D3DXMatrixTranspose(&projectionMatrix, &projectionMatrix);
// Lock the constant buffer so it can be written to.
result = deviceContext->Map(m_matrixBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
if(FAILED(result))
{
return false;
}
// Get a pointer to the data in the constant buffer.
dataPtr = (MatrixBufferType*)mappedResource.pData;
// Copy the matrices into the constant buffer.
dataPtr->world = worldMatrix;
dataPtr->view = viewMatrix;
dataPtr->projection = projectionMatrix;
// Unlock the constant buffer.
deviceContext->Unmap(m_matrixBuffer, 0);
// Set the position of the constant buffer in the vertex shader.
bufferNumber = 0;
// Now set the constant buffer in the vertex shader with the updated values.
deviceContext->VSSetConstantBuffers(bufferNumber, 1, &m_matrixBuffer);
// Lock the light constant buffer so it can be written to.
result = deviceContext->Map(m_lightBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
if(FAILED(result))
{
return false;
}
// Get a pointer to the data in the constant buffer.
dataPtr2 = (LightBufferType*)mappedResource.pData;
// Copy the lighting variables into the constant buffer.
dataPtr2->ambientColor = ambientColor;
dataPtr2->diffuseColor = diffuseColor;
dataPtr2->lightDirection = lightDirection;
dataPtr2->padding = 0.0f;
// Unlock the constant buffer.
deviceContext->Unmap(m_lightBuffer, 0);
// Set the position of the light constant buffer in the pixel shader.
bufferNumber = 0;
// Finally set the light constant buffer in the pixel shader with the updated values.
deviceContext->PSSetConstantBuffers(bufferNumber, 1, &m_lightBuffer);
We set the terrain texture in the pixel shader here.
// Set shader texture resource in the pixel shader.
deviceContext->PSSetShaderResources(0, 1, &texture);
return true;
}
void TerrainShaderClass::RenderShader(ID3D11DeviceContext* deviceContext, int indexCount)
{
// Set the vertex input layout.
deviceContext->IASetInputLayout(m_layout);
// Set the vertex and pixel shaders that will be used to render this triangle.
deviceContext->VSSetShader(m_vertexShader, NULL, 0);
deviceContext->PSSetShader(m_pixelShader, NULL, 0);
// Set the sampler state in the pixel shader.
deviceContext->PSSetSamplers(0, 1, &m_sampleState);
// Render the triangle.
deviceContext->DrawIndexed(indexCount, 0, 0);
return;
}
Terrainclass.h
//////////////////////////////////////////////////////////////////////////////// // Filename: terrainclass.h //////////////////////////////////////////////////////////////////////////////// #ifndef _TERRAINCLASS_H_ #define _TERRAINCLASS_H_ ////////////// // INCLUDES // ////////////// #include <d3d11.h> #include <d3dx10math.h> #include <stdio.h>
The texture class header file is now included.
/////////////////////// // MY CLASS INCLUDES // /////////////////////// #include "textureclass.h"
The new TEXTURE_REPEAT global is placed here so we can easily control how often the texture will repeat over the terrain grid. For this tutorial the terrain texture will be repeated eight times both over the width and length of the terrain.
/////////////
// GLOBALS //
/////////////
const int TEXTURE_REPEAT = 8;
////////////////////////////////////////////////////////////////////////////////
// Class name: TerrainClass
////////////////////////////////////////////////////////////////////////////////
class TerrainClass
{
private:
The VertexType structure has been updated to have a texture vector.
struct VertexType
{
D3DXVECTOR3 position;
D3DXVECTOR2 texture;
D3DXVECTOR3 normal;
};
The height map structure is also updated to have tu and tv texture coordinates.
struct HeightMapType
{
float x, y, z;
float tu, tv;
float nx, ny, nz;
};
struct VectorType
{
float x, y, z;
};
public:
TerrainClass();
TerrainClass(const TerrainClass&);
~TerrainClass();
bool Initialize(ID3D11Device*, char*, WCHAR*);
void Shutdown();
void Render(ID3D11DeviceContext*);
int GetIndexCount();
The GetTexture function will return the pointer to the terrain texture shader resource for rendering purposes.
ID3D11ShaderResourceView* GetTexture(); private: bool LoadHeightMap(char*); void NormalizeHeightMap(); bool CalculateNormals(); void ShutdownHeightMap();
We have three new functions for calculating the texture coordinates for the terrain grid as well as loading and unloading the terrain texture.
void CalculateTextureCoordinates(); bool LoadTexture(ID3D11Device*, WCHAR*); void ReleaseTexture(); bool InitializeBuffers(ID3D11Device*); void ShutdownBuffers(); void RenderBuffers(ID3D11DeviceContext*); private: int m_terrainWidth, m_terrainHeight; int m_vertexCount, m_indexCount; ID3D11Buffer *m_vertexBuffer, *m_indexBuffer; HeightMapType* m_heightMap;
A new TextureClass object is created here to store the terrain texture that will be loaded during initialization.
TextureClass* m_Texture; }; #endif
Terrainclass.cpp
////////////////////////////////////////////////////////////////////////////////
// Filename: terrainclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "terrainclass.h"
TerrainClass::TerrainClass()
{
m_vertexBuffer = 0;
m_indexBuffer = 0;
m_heightMap = 0;
Initialize the new TextureClass object to null in the class constructor.
m_Texture = 0;
}
TerrainClass::TerrainClass(const TerrainClass& other)
{
}
TerrainClass::~TerrainClass()
{
}
bool TerrainClass::Initialize(ID3D11Device* device, char* heightMapFilename, WCHAR* textureFilename)
{
bool result;
// Load in the height map for the terrain.
result = LoadHeightMap(heightMapFilename);
if(!result)
{
return false;
}
// Normalize the height of the height map.
NormalizeHeightMap();
// Calculate the normals for the terrain data.
result = CalculateNormals();
if(!result)
{
return false;
}
We now generate our own terrain texture coordinates for the terrain grid during the Initialize function.
// Calculate the texture coordinates. CalculateTextureCoordinates();
The texture that will be used for rendering the terrain is also loaded here in the Initialize function.
// Load the texture.
result = LoadTexture(device, textureFilename);
if(!result)
{
return false;
}
// Initialize the vertex and index buffer that hold the geometry for the terrain.
result = InitializeBuffers(device);
if(!result)
{
return false;
}
return true;
}
void TerrainClass::Shutdown()
{
The new ReleaseTexture function is called in the Shutdown function.
// Release the texture.
ReleaseTexture();
// Release the vertex and index buffer.
ShutdownBuffers();
// Release the height map data.
ShutdownHeightMap();
return;
}
void TerrainClass::Render(ID3D11DeviceContext* deviceContext)
{
// Put the vertex and index buffers on the graphics pipeline to prepare them for drawing.
RenderBuffers(deviceContext);
return;
}
int TerrainClass::GetIndexCount()
{
return m_indexCount;
}
This is the new GetTexture function which returns a pointer to the terrain texture resource which is called by the terrain shader object.
ID3D11ShaderResourceView* TerrainClass::GetTexture()
{
return m_Texture->GetTexture();
}
bool TerrainClass::LoadHeightMap(char* filename)
{
FILE* filePtr;
int error;
unsigned int count;
BITMAPFILEHEADER bitmapFileHeader;
BITMAPINFOHEADER bitmapInfoHeader;
int imageSize, i, j, k, index;
unsigned char* bitmapImage;
unsigned char height;
// Open the height map file in binary.
error = fopen_s(&filePtr, filename, "rb");
if(error != 0)
{
return false;
}
// Read in the file header.
count = fread(&bitmapFileHeader, sizeof(BITMAPFILEHEADER), 1, filePtr);
if(count != 1)
{
return false;
}
// Read in the bitmap info header.
count = fread(&bitmapInfoHeader, sizeof(BITMAPINFOHEADER), 1, filePtr);
if(count != 1)
{
return false;
}
// Save the dimensions of the terrain.
m_terrainWidth = bitmapInfoHeader.biWidth;
m_terrainHeight = bitmapInfoHeader.biHeight;
// Calculate the size of the bitmap image data.
imageSize = m_terrainWidth * m_terrainHeight * 3;
// Allocate memory for the bitmap image data.
bitmapImage = new unsigned char[imageSize];
if(!bitmapImage)
{
return false;
}
// Move to the beginning of the bitmap data.
fseek(filePtr, bitmapFileHeader.bfOffBits, SEEK_SET);
// Read in the bitmap image data.
count = fread(bitmapImage, 1, imageSize, filePtr);
if(count != imageSize)
{
return false;
}
// Close the file.
error = fclose(filePtr);
if(error != 0)
{
return false;
}
// Create the structure to hold the height map data.
m_heightMap = new HeightMapType[m_terrainWidth * m_terrainHeight];
if(!m_heightMap)
{
return false;
}
// Initialize the position in the image data buffer.
k=0;
// Read the image data into the height map.
for(j=0; j<m_terrainHeight; j++)
{
for(i=0; i<m_terrainWidth; i++)
{
height = bitmapImage[k];
index = (m_terrainHeight * j) + i;
m_heightMap[index].x = (float)i;
m_heightMap[index].y = (float)height;
m_heightMap[index].z = (float)j;
k+=3;
}
}
// Release the bitmap image data.
delete [] bitmapImage;
bitmapImage = 0;
return true;
}
void TerrainClass::NormalizeHeightMap()
{
int i, j;
for(j=0; j<m_terrainHeight; j++)
{
for(i=0; i<m_terrainWidth; i++)
{
m_heightMap[(m_terrainHeight * j) + i].y /= 15.0f;
}
}
return;
}
bool TerrainClass::CalculateNormals()
{
int i, j, index1, index2, index3, index, count;
float vertex1[3], vertex2[3], vertex3[3], vector1[3], vector2[3], sum[3], length;
VectorType* normals;
// Create a temporary array to hold the un-normalized normal vectors.
normals = new VectorType[(m_terrainHeight-1) * (m_terrainWidth-1)];
if(!normals)
{
return false;
}
// Go through all the faces in the mesh and calculate their normals.
for(j=0; j<(m_terrainHeight-1); j++)
{
for(i=0; i<(m_terrainWidth-1); i++)
{
index1 = (j * m_terrainHeight) + i;
index2 = (j * m_terrainHeight) + (i+1);
index3 = ((j+1) * m_terrainHeight) + i;
// Get three vertices from the face.
vertex1[0] = m_heightMap[index1].x;
vertex1[1] = m_heightMap[index1].y;
vertex1[2] = m_heightMap[index1].z;
vertex2[0] = m_heightMap[index2].x;
vertex2[1] = m_heightMap[index2].y;
vertex2[2] = m_heightMap[index2].z;
vertex3[0] = m_heightMap[index3].x;
vertex3[1] = m_heightMap[index3].y;
vertex3[2] = m_heightMap[index3].z;
// Calculate the two vectors for this face.
vector1[0] = vertex1[0] - vertex3[0];
vector1[1] = vertex1[1] - vertex3[1];
vector1[2] = vertex1[2] - vertex3[2];
vector2[0] = vertex3[0] - vertex2[0];
vector2[1] = vertex3[1] - vertex2[1];
vector2[2] = vertex3[2] - vertex2[2];
index = (j * (m_terrainHeight-1)) + i;
// Calculate the cross product of those two vectors to get the un-normalized value for this face normal.
normals[index].x = (vector1[1] * vector2[2]) - (vector1[2] * vector2[1]);
normals[index].y = (vector1[2] * vector2[0]) - (vector1[0] * vector2[2]);
normals[index].z = (vector1[0] * vector2[1]) - (vector1[1] * vector2[0]);
}
}
// Now go through all the vertices and take an average of each face normal
// that the vertex touches to get the averaged normal for that vertex.
for(j=0; j<m_terrainHeight; j++)
{
for(i=0; i<m_terrainWidth; i++)
{
// Initialize the sum.
sum[0] = 0.0f;
sum[1] = 0.0f;
sum[2] = 0.0f;
// Initialize the count.
count = 0;
// Bottom left face.
if(((i-1) >= 0) && ((j-1) >= 0))
{
index = ((j-1) * (m_terrainHeight-1)) + (i-1);
sum[0] += normals[index].x;
sum[1] += normals[index].y;
sum[2] += normals[index].z;
count++;
}
// Bottom right face.
if((i < (m_terrainWidth-1)) && ((j-1) >= 0))
{
index = ((j-1) * (m_terrainHeight-1)) + i;
sum[0] += normals[index].x;
sum[1] += normals[index].y;
sum[2] += normals[index].z;
count++;
}
// Upper left face.
if(((i-1) >= 0) && (j < (m_terrainHeight-1)))
{
index = (j * (m_terrainHeight-1)) + (i-1);
sum[0] += normals[index].x;
sum[1] += normals[index].y;
sum[2] += normals[index].z;
count++;
}
// Upper right face.
if((i < (m_terrainWidth-1)) && (j < (m_terrainHeight-1)))
{
index = (j * (m_terrainHeight-1)) + i;
sum[0] += normals[index].x;
sum[1] += normals[index].y;
sum[2] += normals[index].z;
count++;
}
// Take the average of the faces touching this vertex.
sum[0] = (sum[0] / (float)count);
sum[1] = (sum[1] / (float)count);
sum[2] = (sum[2] / (float)count);
// Calculate the length of this normal.
length = sqrt((sum[0] * sum[0]) + (sum[1] * sum[1]) + (sum[2] * sum[2]));
// Get an index to the vertex location in the height map array.
index = (j * m_terrainHeight) + i;
// Normalize the final shared normal for this vertex and store it in the height map array.
m_heightMap[index].nx = (sum[0] / length);
m_heightMap[index].ny = (sum[1] / length);
m_heightMap[index].nz = (sum[2] / length);
}
}
// Release the temporary normals.
delete [] normals;
normals = 0;
return true;
}
void TerrainClass::ShutdownHeightMap()
{
if(m_heightMap)
{
delete [] m_heightMap;
m_heightMap = 0;
}
return;
}
CalculateTextureCoordinates generates texture coordinates for the terrain grid. The new global TEXTURE_REPEAT is used to determine how often the texture should repeat over the grid. We use TEXTURE_REPEAT to calculate the incremental texture coordinates for each vertex in the terrain grid and then store it in the height map array.
Note that since we are using texture coordinates per vertex we will not handle the edges properly. For example if we have a texture that repeats every two quads we would only get two texture coordinates 0.0f and 0.5f. When really we need to have 0.0f, 0.5f, and 1.0f. To handle this issue we just determine when the edge coordinates should be 0.0f or 1.0f when building the vertex array in the InitializeBuffers function.
void TerrainClass::CalculateTextureCoordinates()
{
int incrementCount, i, j, tuCount, tvCount;
float incrementValue, tuCoordinate, tvCoordinate;
// Calculate how much to increment the texture coordinates by.
incrementValue = (float)TEXTURE_REPEAT / (float)m_terrainWidth;
// Calculate how many times to repeat the texture.
incrementCount = m_terrainWidth / TEXTURE_REPEAT;
// Initialize the tu and tv coordinate values.
tuCoordinate = 0.0f;
tvCoordinate = 1.0f;
// Initialize the tu and tv coordinate indexes.
tuCount = 0;
tvCount = 0;
// Loop through the entire height map and calculate the tu and tv texture coordinates for each vertex.
for(j=0; j<m_terrainHeight; j++)
{
for(i=0; i<m_terrainWidth; i++)
{
// Store the texture coordinate in the height map.
m_heightMap[(m_terrainHeight * j) + i].tu = tuCoordinate;
m_heightMap[(m_terrainHeight * j) + i].tv = tvCoordinate;
// Increment the tu texture coordinate by the increment value and increment the index by one.
tuCoordinate += incrementValue;
tuCount++;
// Check if at the far right end of the texture and if so then start at the beginning again.
if(tuCount == incrementCount)
{
tuCoordinate = 0.0f;
tuCount = 0;
}
}
// Increment the tv texture coordinate by the increment value and increment the index by one.
tvCoordinate -= incrementValue;
tvCount++;
// Check if at the top of the texture and if so then start at the bottom again.
if(tvCount == incrementCount)
{
tvCoordinate = 1.0f;
tvCount = 0;
}
}
return;
}
LoadTexture is used to load the terrain texture resource into the TextureClass object.
bool TerrainClass::LoadTexture(ID3D11Device* device, WCHAR* filename)
{
bool result;
// Create the texture object.
m_Texture = new TextureClass;
if(!m_Texture)
{
return false;
}
// Initialize the texture object.
result = m_Texture->Initialize(device, filename);
if(!result)
{
return false;
}
return true;
}
The ReleaseTexture function releases the TextureClass object.
void TerrainClass::ReleaseTexture()
{
// Release the texture object.
if(m_Texture)
{
m_Texture->Shutdown();
delete m_Texture;
m_Texture = 0;
}
return;
}
bool TerrainClass::InitializeBuffers(ID3D11Device* device)
{
VertexType* vertices;
unsigned long* indices;
int index, i, j;
D3D11_BUFFER_DESC vertexBufferDesc, indexBufferDesc;
D3D11_SUBRESOURCE_DATA vertexData, indexData;
HRESULT result;
int index1, index2, index3, index4;
float tu, tv;
// Calculate the number of vertices in the terrain mesh.
m_vertexCount = (m_terrainWidth - 1) * (m_terrainHeight - 1) * 6;
// Set the index count to the same as the vertex count.
m_indexCount = m_vertexCount;
// Create the vertex array.
vertices = new VertexType[m_vertexCount];
if(!vertices)
{
return false;
}
// Create the index array.
indices = new unsigned long[m_indexCount];
if(!indices)
{
return false;
}
// Initialize the index to the vertex buffer.
index = 0;
Now that we use texturing the vertex buffer loading has been modified so texture coordinates are now included. However as mentioned at the CalculateTextureCoordinates function all the texture edges are not created since calculations were only done per individual vertex. And vertices can be both 0.0f and 1.0f depending on which triangle they are part of. To handle this we do a quick check to see if the tu or tv coordinates are at the top, bottom, left, or right and then determine if they should be a 0.0f or 1.0f for that particular triangle.
// Load the vertex and index array with the terrain data.
for(j=0; j<(m_terrainHeight-1); j++)
{
for(i=0; i<(m_terrainWidth-1); i++)
{
index1 = (m_terrainHeight * j) + i; // Bottom left.
index2 = (m_terrainHeight * j) + (i+1); // Bottom right.
index3 = (m_terrainHeight * (j+1)) + i; // Upper left.
index4 = (m_terrainHeight * (j+1)) + (i+1); // Upper right.
// Upper left.
tv = m_heightMap[index3].tv;
// Modify the texture coordinates to cover the top edge.
if(tv == 1.0f) { tv = 0.0f; }
vertices[index].position = D3DXVECTOR3(m_heightMap[index3].x, m_heightMap[index3].y, m_heightMap[index3].z);
vertices[index].texture = D3DXVECTOR2(m_heightMap[index3].tu, tv);
vertices[index].normal = D3DXVECTOR3(m_heightMap[index3].nx, m_heightMap[index3].ny, m_heightMap[index3].nz);
indices[index] = index;
index++;
// Upper right.
tu = m_heightMap[index4].tu;
tv = m_heightMap[index4].tv;
// Modify the texture coordinates to cover the top and right edge.
if(tu == 0.0f) { tu = 1.0f; }
if(tv == 1.0f) { tv = 0.0f; }
vertices[index].position = D3DXVECTOR3(m_heightMap[index4].x, m_heightMap[index4].y, m_heightMap[index4].z);
vertices[index].texture = D3DXVECTOR2(tu, tv);
vertices[index].normal = D3DXVECTOR3(m_heightMap[index4].nx, m_heightMap[index4].ny, m_heightMap[index4].nz);
indices[index] = index;
index++;
// Bottom left.
vertices[index].position = D3DXVECTOR3(m_heightMap[index1].x, m_heightMap[index1].y, m_heightMap[index1].z);
vertices[index].texture = D3DXVECTOR2(m_heightMap[index1].tu, m_heightMap[index1].tv);
vertices[index].normal = D3DXVECTOR3(m_heightMap[index1].nx, m_heightMap[index1].ny, m_heightMap[index1].nz);
indices[index] = index;
index++;
// Bottom left.
vertices[index].position = D3DXVECTOR3(m_heightMap[index1].x, m_heightMap[index1].y, m_heightMap[index1].z);
vertices[index].texture = D3DXVECTOR2(m_heightMap[index1].tu, m_heightMap[index1].tv);
vertices[index].normal = D3DXVECTOR3(m_heightMap[index1].nx, m_heightMap[index1].ny, m_heightMap[index1].nz);
indices[index] = index;
index++;
// Upper right.
tu = m_heightMap[index4].tu;
tv = m_heightMap[index4].tv;
// Modify the texture coordinates to cover the top and right edge.
if(tu == 0.0f) { tu = 1.0f; }
if(tv == 1.0f) { tv = 0.0f; }
vertices[index].position = D3DXVECTOR3(m_heightMap[index4].x, m_heightMap[index4].y, m_heightMap[index4].z);
vertices[index].texture = D3DXVECTOR2(tu, tv);
vertices[index].normal = D3DXVECTOR3(m_heightMap[index4].nx, m_heightMap[index4].ny, m_heightMap[index4].nz);
indices[index] = index;
index++;
// Bottom right.
tu = m_heightMap[index2].tu;
// Modify the texture coordinates to cover the right edge.
if(tu == 0.0f) { tu = 1.0f; }
vertices[index].position = D3DXVECTOR3(m_heightMap[index2].x, m_heightMap[index2].y, m_heightMap[index2].z);
vertices[index].texture = D3DXVECTOR2(tu, m_heightMap[index2].tv);
vertices[index].normal = D3DXVECTOR3(m_heightMap[index2].nx, m_heightMap[index2].ny, m_heightMap[index2].nz);
indices[index] = index;
index++;
}
}
// Set up the description of the static vertex buffer.
vertexBufferDesc.Usage = D3D11_USAGE_DEFAULT;
vertexBufferDesc.ByteWidth = sizeof(VertexType) * m_vertexCount;
vertexBufferDesc.BindFlags = D3D11_BIND_VERTEX_BUFFER;
vertexBufferDesc.CPUAccessFlags = 0;
vertexBufferDesc.MiscFlags = 0;
vertexBufferDesc.StructureByteStride = 0;
// Give the subresource structure a pointer to the vertex data.
vertexData.pSysMem = vertices;
vertexData.SysMemPitch = 0;
vertexData.SysMemSlicePitch = 0;
// Now create the vertex buffer.
result = device->CreateBuffer(&vertexBufferDesc, &vertexData, &m_vertexBuffer);
if(FAILED(result))
{
return false;
}
// Set up the description of the static index buffer.
indexBufferDesc.Usage = D3D11_USAGE_DEFAULT;
indexBufferDesc.ByteWidth = sizeof(unsigned long) * m_indexCount;
indexBufferDesc.BindFlags = D3D11_BIND_INDEX_BUFFER;
indexBufferDesc.CPUAccessFlags = 0;
indexBufferDesc.MiscFlags = 0;
indexBufferDesc.StructureByteStride = 0;
// Give the subresource structure a pointer to the index data.
indexData.pSysMem = indices;
indexData.SysMemPitch = 0;
indexData.SysMemSlicePitch = 0;
// Create the index buffer.
result = device->CreateBuffer(&indexBufferDesc, &indexData, &m_indexBuffer);
if(FAILED(result))
{
return false;
}
// Release the arrays now that the buffers have been created and loaded.
delete [] vertices;
vertices = 0;
delete [] indices;
indices = 0;
return true;
}
void TerrainClass::ShutdownBuffers()
{
// Release the index buffer.
if(m_indexBuffer)
{
m_indexBuffer->Release();
m_indexBuffer = 0;
}
// Release the vertex buffer.
if(m_vertexBuffer)
{
m_vertexBuffer->Release();
m_vertexBuffer = 0;
}
return;
}
void TerrainClass::RenderBuffers(ID3D11DeviceContext* deviceContext)
{
unsigned int stride;
unsigned int offset;
// Set vertex buffer stride and offset.
stride = sizeof(VertexType);
offset = 0;
// Set the vertex buffer to active in the input assembler so it can be rendered.
deviceContext->IASetVertexBuffers(0, 1, &m_vertexBuffer, &stride, &offset);
// Set the index buffer to active in the input assembler so it can be rendered.
deviceContext->IASetIndexBuffer(m_indexBuffer, DXGI_FORMAT_R32_UINT, 0);
// Set the type of primitive that should be rendered from this vertex buffer, in this case triangles.
deviceContext->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
return;
}
Applicationclass.h
The header for the ApplicationClass has not been changed.
////////////////////////////////////////////////////////////////////////////////
// Filename: applicationclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _APPLICATIONCLASS_H_
#define _APPLICATIONCLASS_H_
/////////////
// GLOBALS //
/////////////
const bool FULL_SCREEN = true;
const bool VSYNC_ENABLED = true;
const float SCREEN_DEPTH = 1000.0f;
const float SCREEN_NEAR = 0.1f;
///////////////////////
// MY CLASS INCLUDES //
///////////////////////
#include "inputclass.h"
#include "d3dclass.h"
#include "cameraclass.h"
#include "terrainclass.h"
#include "timerclass.h"
#include "positionclass.h"
#include "fpsclass.h"
#include "cpuclass.h"
#include "fontshaderclass.h"
#include "textclass.h"
#include "terrainshaderclass.h"
#include "lightclass.h"
////////////////////////////////////////////////////////////////////////////////
// Class name: ApplicationClass
////////////////////////////////////////////////////////////////////////////////
class ApplicationClass
{
public:
ApplicationClass();
ApplicationClass(const ApplicationClass&);
~ApplicationClass();
bool Initialize(HINSTANCE, HWND, int, int);
void Shutdown();
bool Frame();
private:
bool HandleInput(float);
bool RenderGraphics();
private:
InputClass* m_Input;
D3DClass* m_Direct3D;
CameraClass* m_Camera;
TerrainClass* m_Terrain;
TimerClass* m_Timer;
PositionClass* m_Position;
FpsClass* m_Fps;
CpuClass* m_Cpu;
FontShaderClass* m_FontShader;
TextClass* m_Text;
TerrainShaderClass* m_TerrainShader;
LightClass* m_Light;
};
#endif
Applicationclass.cpp
////////////////////////////////////////////////////////////////////////////////
// Filename: applicationclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "applicationclass.h"
ApplicationClass::ApplicationClass()
{
m_Input = 0;
m_Direct3D = 0;
m_Camera = 0;
m_Terrain = 0;
m_Timer = 0;
m_Position = 0;
m_Fps = 0;
m_Cpu = 0;
m_FontShader = 0;
m_Text = 0;
m_TerrainShader = 0;
m_Light = 0;
}
ApplicationClass::ApplicationClass(const ApplicationClass& other)
{
}
ApplicationClass::~ApplicationClass()
{
}
bool ApplicationClass::Initialize(HINSTANCE hinstance, HWND hwnd, int screenWidth, int screenHeight)
{
bool result;
float cameraX, cameraY, cameraZ;
D3DXMATRIX baseViewMatrix;
char videoCard[128];
int videoMemory;
// Create the input object. The input object will be used to handle reading the keyboard and mouse input from the user.
m_Input = new InputClass;
if(!m_Input)
{
return false;
}
// Initialize the input object.
result = m_Input->Initialize(hinstance, hwnd, screenWidth, screenHeight);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the input object.", L"Error", MB_OK);
return false;
}
// Create the Direct3D object.
m_Direct3D = new D3DClass;
if(!m_Direct3D)
{
return false;
}
// Initialize the Direct3D object.
result = m_Direct3D->Initialize(screenWidth, screenHeight, VSYNC_ENABLED, hwnd, FULL_SCREEN, SCREEN_DEPTH, SCREEN_NEAR);
if(!result)
{
MessageBox(hwnd, L"Could not initialize DirectX 11.", L"Error", MB_OK);
return false;
}
// Create the camera object.
m_Camera = new CameraClass;
if(!m_Camera)
{
return false;
}
// Initialize a base view matrix with the camera for 2D user interface rendering.
m_Camera->SetPosition(0.0f, 0.0f, -1.0f);
m_Camera->Render();
m_Camera->GetViewMatrix(baseViewMatrix);
// Set the initial position of the camera.
cameraX = 50.0f;
cameraY = 2.0f;
cameraZ = -7.0f;
m_Camera->SetPosition(cameraX, cameraY, cameraZ);
// Create the terrain object.
m_Terrain = new TerrainClass;
if(!m_Terrain)
{
return false;
}
When the terrain object is initialized it now takes the name of the terrain texture file as input.
// Initialize the terrain object.
result = m_Terrain->Initialize(m_Direct3D->GetDevice(), "../Engine/data/heightmap01.bmp", L"../Engine/data/dirt01.dds");
if(!result)
{
MessageBox(hwnd, L"Could not initialize the terrain object.", L"Error", MB_OK);
return false;
}
// Create the timer object.
m_Timer = new TimerClass;
if(!m_Timer)
{
return false;
}
// Initialize the timer object.
result = m_Timer->Initialize();
if(!result)
{
MessageBox(hwnd, L"Could not initialize the timer object.", L"Error", MB_OK);
return false;
}
// Create the position object.
m_Position = new PositionClass;
if(!m_Position)
{
return false;
}
// Set the initial position of the viewer to the same as the initial camera position.
m_Position->SetPosition(cameraX, cameraY, cameraZ);
// Create the fps object.
m_Fps = new FpsClass;
if(!m_Fps)
{
return false;
}
// Initialize the fps object.
m_Fps->Initialize();
// Create the cpu object.
m_Cpu = new CpuClass;
if(!m_Cpu)
{
return false;
}
// Initialize the cpu object.
m_Cpu->Initialize();
// Create the font shader object.
m_FontShader = new FontShaderClass;
if(!m_FontShader)
{
return false;
}
// Initialize the font shader object.
result = m_FontShader->Initialize(m_Direct3D->GetDevice(), hwnd);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the font shader object.", L"Error", MB_OK);
return false;
}
// Create the text object.
m_Text = new TextClass;
if(!m_Text)
{
return false;
}
// Initialize the text object.
result = m_Text->Initialize(m_Direct3D->GetDevice(), m_Direct3D->GetDeviceContext(), hwnd, screenWidth, screenHeight, baseViewMatrix);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the text object.", L"Error", MB_OK);
return false;
}
// Retrieve the video card information.
m_Direct3D->GetVideoCardInfo(videoCard, videoMemory);
// Set the video card information in the text object.
result = m_Text->SetVideoCardInfo(videoCard, videoMemory, m_Direct3D->GetDeviceContext());
if(!result)
{
MessageBox(hwnd, L"Could not set video card info in the text object.", L"Error", MB_OK);
return false;
}
// Create the terrain shader object.
m_TerrainShader = new TerrainShaderClass;
if(!m_TerrainShader)
{
return false;
}
// Initialize the terrain shader object.
result = m_TerrainShader->Initialize(m_Direct3D->GetDevice(), hwnd);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the terrain shader object.", L"Error", MB_OK);
return false;
}
// Create the light object.
m_Light = new LightClass;
if(!m_Light)
{
return false;
}
// Initialize the light object.
m_Light->SetAmbientColor(0.05f, 0.05f, 0.05f, 1.0f);
m_Light->SetDiffuseColor(1.0f, 1.0f, 1.0f, 1.0f);
m_Light->SetDirection(-0.5f, -1.0f, 0.0f);
return true;
}
void ApplicationClass::Shutdown()
{
// Release the light object.
if(m_Light)
{
delete m_Light;
m_Light = 0;
}
// Release the terrain shader object.
if(m_TerrainShader)
{
m_TerrainShader->Shutdown();
delete m_TerrainShader;
m_TerrainShader = 0;
}
// Release the text object.
if(m_Text)
{
m_Text->Shutdown();
delete m_Text;
m_Text = 0;
}
// Release the font shader object.
if(m_FontShader)
{
m_FontShader->Shutdown();
delete m_FontShader;
m_FontShader = 0;
}
// Release the cpu object.
if(m_Cpu)
{
m_Cpu->Shutdown();
delete m_Cpu;
m_Cpu = 0;
}
// Release the fps object.
if(m_Fps)
{
delete m_Fps;
m_Fps = 0;
}
// Release the position object.
if(m_Position)
{
delete m_Position;
m_Position = 0;
}
// Release the timer object.
if(m_Timer)
{
delete m_Timer;
m_Timer = 0;
}
// Release the terrain object.
if(m_Terrain)
{
m_Terrain->Shutdown();
delete m_Terrain;
m_Terrain = 0;
}
// Release the camera object.
if(m_Camera)
{
delete m_Camera;
m_Camera = 0;
}
// Release the Direct3D object.
if(m_Direct3D)
{
m_Direct3D->Shutdown();
delete m_Direct3D;
m_Direct3D = 0;
}
// Release the input object.
if(m_Input)
{
m_Input->Shutdown();
delete m_Input;
m_Input = 0;
}
return;
}
bool ApplicationClass::Frame()
{
bool result;
// Read the user input.
result = m_Input->Frame();
if(!result)
{
return false;
}
// Check if the user pressed escape and wants to exit the application.
if(m_Input->IsEscapePressed() == true)
{
return false;
}
// Update the system stats.
m_Timer->Frame();
m_Fps->Frame();
m_Cpu->Frame();
// Update the FPS value in the text object.
result = m_Text->SetFps(m_Fps->GetFps(), m_Direct3D->GetDeviceContext());
if(!result)
{
return false;
}
// Update the CPU usage value in the text object.
result = m_Text->SetCpu(m_Cpu->GetCpuPercentage(), m_Direct3D->GetDeviceContext());
if(!result)
{
return false;
}
// Do the frame input processing.
result = HandleInput(m_Timer->GetTime());
if(!result)
{
return false;
}
// Render the graphics.
result = RenderGraphics();
if(!result)
{
return false;
}
return result;
}
bool ApplicationClass::HandleInput(float frameTime)
{
bool keyDown, result;
float posX, posY, posZ, rotX, rotY, rotZ;
// Set the frame time for calculating the updated position.
m_Position->SetFrameTime(frameTime);
// Handle the input.
keyDown = m_Input->IsLeftPressed();
m_Position->TurnLeft(keyDown);
keyDown = m_Input->IsRightPressed();
m_Position->TurnRight(keyDown);
keyDown = m_Input->IsUpPressed();
m_Position->MoveForward(keyDown);
keyDown = m_Input->IsDownPressed();
m_Position->MoveBackward(keyDown);
keyDown = m_Input->IsAPressed();
m_Position->MoveUpward(keyDown);
keyDown = m_Input->IsZPressed();
m_Position->MoveDownward(keyDown);
keyDown = m_Input->IsPgUpPressed();
m_Position->LookUpward(keyDown);
keyDown = m_Input->IsPgDownPressed();
m_Position->LookDownward(keyDown);
// Get the view point position/rotation.
m_Position->GetPosition(posX, posY, posZ);
m_Position->GetRotation(rotX, rotY, rotZ);
// Set the position of the camera.
m_Camera->SetPosition(posX, posY, posZ);
m_Camera->SetRotation(rotX, rotY, rotZ);
// Update the position values in the text object.
result = m_Text->SetCameraPosition(posX, posY, posZ, m_Direct3D->GetDeviceContext());
if(!result)
{
return false;
}
// Update the rotation values in the text object.
result = m_Text->SetCameraRotation(rotX, rotY, rotZ, m_Direct3D->GetDeviceContext());
if(!result)
{
return false;
}
return true;
}
bool ApplicationClass::RenderGraphics()
{
D3DXMATRIX worldMatrix, viewMatrix, projectionMatrix, orthoMatrix;
bool result;
// Clear the scene.
m_Direct3D->BeginScene(0.0f, 0.0f, 0.0f, 1.0f);
// Generate the view matrix based on the camera's position.
m_Camera->Render();
// Get the world, view, projection, and ortho matrices from the camera and Direct3D objects.
m_Direct3D->GetWorldMatrix(worldMatrix);
m_Camera->GetViewMatrix(viewMatrix);
m_Direct3D->GetProjectionMatrix(projectionMatrix);
m_Direct3D->GetOrthoMatrix(orthoMatrix);
// Render the terrain buffers.
m_Terrain->Render(m_Direct3D->GetDeviceContext());
The terrain shader now takes the texture resource from the TerrainClass object as input for rendering.
// Render the terrain using the terrain shader.
result = m_TerrainShader->Render(m_Direct3D->GetDeviceContext(), m_Terrain->GetIndexCount(), worldMatrix, viewMatrix, projectionMatrix,
m_Light->GetAmbientColor(), m_Light->GetDiffuseColor(), m_Light->GetDirection(), m_Terrain->GetTexture());
if(!result)
{
return false;
}
// Turn off the Z buffer to begin all 2D rendering.
m_Direct3D->TurnZBufferOff();
// Turn on the alpha blending before rendering the text.
m_Direct3D->TurnOnAlphaBlending();
// Render the text user interface elements.
result = m_Text->Render(m_Direct3D->GetDeviceContext(), m_FontShader, worldMatrix, orthoMatrix);
if(!result)
{
return false;
}
// Turn off alpha blending after rendering the text.
m_Direct3D->TurnOffAlphaBlending();
// Turn the Z buffer back on now that all 2D rendering has completed.
m_Direct3D->TurnZBufferOn();
// Present the rendered scene to the screen.
m_Direct3D->EndScene();
return true;
}
Summary

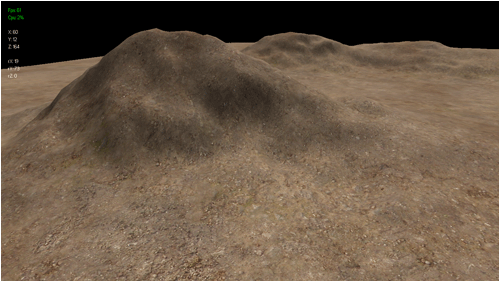

The terrain is now textured using a repeating texture and this gives it a semi-realistic look when combined with dynamic lighting.
To Do Exercises
1. Recompile and run the program. Move around the terrain to see the effect texturing has.
2. Modify the TEXTURE_REPEAT value. Try values 1, 2, 4, 16, 32, 64.
3. Use your own texture and try the find the right TEXTURE_REPEAT value that works well with your texture.
4. Modify the position of the light to see how it affects the textured terrain.
Source Code
Visual Studio 2010 Project: tertut04.zip
Source Only: tersrc04.zip
Executable Only: terexe04.zip
