Tutorial 13: Terrain Detail Mapping
This DirectX 11 terrain tutorial will cover how to apply detail mapping to your terrain for improving short range texture quality. The code in this tutorial is based off the Color Mapped Terrain tutorial.

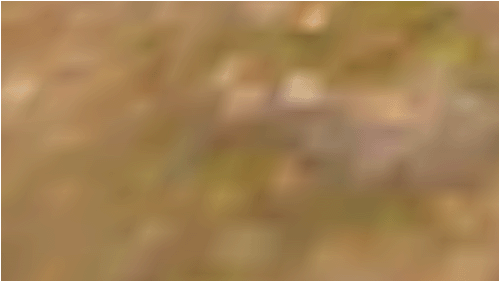

Currently when we look straight down at the ground in our terrain and anywhere that is close to where the camera is positioned we get very low resolution texture quality. This reason for this is because the color texture for the ground is stretched over a number of polygons to reduce the tiling effect it produces if it is mapped one to one. Therefore the nearby details look very blurry while everything else looks fairly decent:

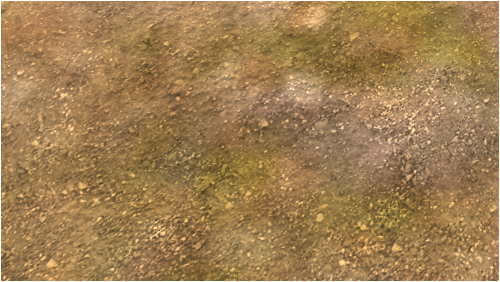

To fix this issue we will use detail maps for adding detail to all the geometry that is close to the camera. The previous blurry image when looking at the ground now looks like the following:
Detail maps are usually made from textures with a lot of detail and are mapped to the terrain polygons one to one most of the time. The texture used for the detail map should have its color removed by performing a desaturate function in Photoshop or any other texture editing tool so you get a grey scale image such as the following:
Now obviously you don't want to map this to all the polygons in the terrain. This would be fairly expensive and also all the high frequency details would be lost after about 2-3 meters so you wouldn't see any difference in distance polygons anyhow. To apply detail maps to only the nearby polygons we will use the depth buffer shader technique that was covered in the DirectX 11 tutorials section. This will allow us to determine the depth of the pixel in the pixel shader and then use an if statement to determine whether or not to add the detail map to the final color.
Setting the depth check to about 0.9f with a near plane of 1.0f will produce the following desired depth in green for detail maps. The red section would have just the regular texture applied:

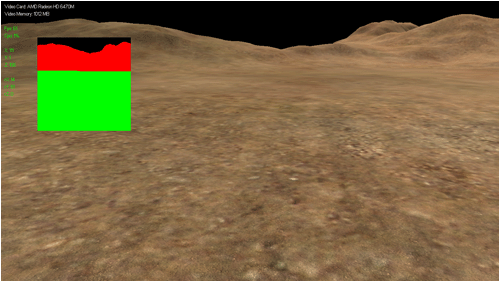

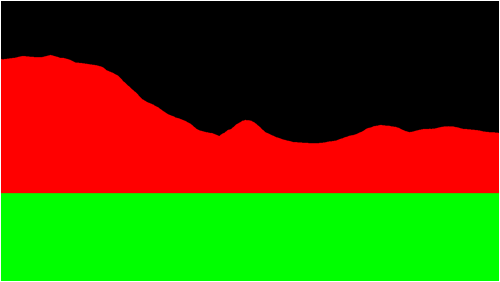

In this tutorial I have also added a render to texture that displays the depth buffer in the upper left part of the screen so that you can see how the detail mapping correlates to what the terrain looks like.
We will start the code section by looking at the modified HLSL terrain shader.
Terrain.vs
////////////////////////////////////////////////////////////////////////////////
// Filename: terrain.vs
////////////////////////////////////////////////////////////////////////////////
/////////////
// GLOBALS //
/////////////
cbuffer MatrixBuffer
{
matrix worldMatrix;
matrix viewMatrix;
matrix projectionMatrix;
};
//////////////
// TYPEDEFS //
//////////////
struct VertexInputType
{
float4 position : POSITION;
float4 tex : TEXCOORD0;
float3 normal : NORMAL;
float4 color : COLOR;
};
The PixelInputType now has a depth position.
struct PixelInputType
{
float4 position : SV_POSITION;
float4 tex : TEXCOORD0;
float3 normal : NORMAL;
float4 color : COLOR;
float4 depthPosition : TEXCOORD1;
};
////////////////////////////////////////////////////////////////////////////////
// Vertex Shader
////////////////////////////////////////////////////////////////////////////////
PixelInputType TerrainVertexShader(VertexInputType input)
{
PixelInputType output;
// Change the position vector to be 4 units for proper matrix calculations.
input.position.w = 1.0f;
// Calculate the position of the vertex against the world, view, and projection matrices.
output.position = mul(input.position, worldMatrix);
output.position = mul(output.position, viewMatrix);
output.position = mul(output.position, projectionMatrix);
// Store the texture coordinates for the pixel shader.
output.tex = input.tex;
// Calculate the normal vector against the world matrix only.
output.normal = mul(input.normal, (float3x3)worldMatrix);
// Normalize the normal vector.
output.normal = normalize(output.normal);
// Send the color map color into the pixel shader.
output.color = input.color;
We now send the depth position into the pixel shader for the detail mapping.
// Store the position value in a second input value for depth value calculations.
output.depthPosition = output.position;
return output;
}
Terrain.ps
//////////////////////////////////////////////////////////////////////////////// // Filename: terrain.ps //////////////////////////////////////////////////////////////////////////////// ///////////// // GLOBALS // ///////////// Texture2D shaderTexture : register(t0);
The pixel shader now has a second texture which is the detail map texture.
Texture2D detailTexture : register(t1);
SamplerState SampleType;
cbuffer LightBuffer
{
float4 ambientColor;
float4 diffuseColor;
float3 lightDirection;
float padding;
};
//////////////
// TYPEDEFS //
//////////////
The PixelInputType has been modified to add the new depth position value. This will be used to determine whether to apply the detail map or not.
struct PixelInputType
{
float4 position : SV_POSITION;
float4 tex : TEXCOORD0;
float3 normal : NORMAL;
float4 color : COLOR;
float4 depthPosition : TEXCOORD1;
};
////////////////////////////////////////////////////////////////////////////////
// Pixel Shader
////////////////////////////////////////////////////////////////////////////////
float4 TerrainPixelShader(PixelInputType input) : SV_TARGET
{
float4 textureColor;
float depthValue;
float detailBrightness;
float4 detailColor;
float3 lightDir;
float lightIntensity;
float4 color;
// Sample the pixel color from the texture using the sampler at this texture coordinate location.
textureColor = shaderTexture.Sample(SampleType, input.tex.xy);
We first determine the depth of this pixel that we are drawing.
// Get the depth value of the pixel by dividing the Z pixel depth by the homogeneous W coordinate.
depthValue = input.depthPosition.z / input.depthPosition.w;
Then we do a check to see if the depth value is in the near range that we are looking for. If it is then we sample the detail map texture and combine it with the regular ground texture which gives us the highly detailed terrain appearance to everything that is in the near range to the camera. We use the second set of texture coordinates (zw) to sample as we want to map the texture to the polygon using a one to one mapping instead of stretching the texture over multiple polygons like we do with the regular ground texture.
Note that the brightness here is manually set. This should actually be an input value that can be easily modified. All detail textures will require their brightness to be modified so that it fits with the rest of the terrain. Otherwise the detail map texture can darken or brighten the terrain too much.
// Check if the depth value is close to the screen, if so we will apply the detail texture.
if(depthValue < 0.9f)
{
// Sample the pixel color from the detail map texture using the sampler at this texture coordinate location.
detailColor = detailTexture.Sample(SampleType, input.tex.zw);
// Set the brightness of the detail texture.
detailBrightness = 1.8f;
// Combine the ground texture and the detail texture. Also multiply in the detail brightness.
textureColor = textureColor * detailColor * detailBrightness;
}
// Set the default output color to the ambient light value for all pixels.
color = ambientColor;
// Invert the light direction for calculations.
lightDir = -lightDirection;
// Calculate the amount of light on this pixel.
lightIntensity = saturate(dot(input.normal, lightDir));
if(lightIntensity > 0.0f)
{
// Determine the final diffuse color based on the diffuse color and the amount of light intensity.
color += (diffuseColor * lightIntensity);
}
// Saturate the final light color.
color = saturate(color);
// Multiply the texture pixel and the final light color to get the result.
color = color * textureColor;
// Combine the color map value into the final color.
color = saturate(color * input.color * 2.0f);
return color;
}
Terrainshaderclass.h
The TerrainShaderClass has been modified to handle the extra texture coordinates and the new detail map texture resource.
////////////////////////////////////////////////////////////////////////////////
// Filename: terrainshaderclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _TERRAINSHADERCLASS_H_
#define _TERRAINSHADERCLASS_H_
//////////////
// INCLUDES //
//////////////
#include <d3d11.h>
#include <d3dx10math.h>
#include <d3dx11async.h>
#include <fstream>
using namespace std;
////////////////////////////////////////////////////////////////////////////////
// Class name: TerrainShaderClass
////////////////////////////////////////////////////////////////////////////////
class TerrainShaderClass
{
private:
struct MatrixBufferType
{
D3DXMATRIX world;
D3DXMATRIX view;
D3DXMATRIX projection;
};
struct LightBufferType
{
D3DXVECTOR4 ambientColor;
D3DXVECTOR4 diffuseColor;
D3DXVECTOR3 lightDirection;
float padding;
};
public:
TerrainShaderClass();
TerrainShaderClass(const TerrainShaderClass&);
~TerrainShaderClass();
bool Initialize(ID3D11Device*, HWND);
void Shutdown();
bool Render(ID3D11DeviceContext*, int, D3DXMATRIX, D3DXMATRIX, D3DXMATRIX, D3DXVECTOR4, D3DXVECTOR4, D3DXVECTOR3, ID3D11ShaderResourceView*,
ID3D11ShaderResourceView*);
private:
bool InitializeShader(ID3D11Device*, HWND, WCHAR*, WCHAR*);
void ShutdownShader();
void OutputShaderErrorMessage(ID3D10Blob*, HWND, WCHAR*);
bool SetShaderParameters(ID3D11DeviceContext*, D3DXMATRIX, D3DXMATRIX, D3DXMATRIX, D3DXVECTOR4, D3DXVECTOR4, D3DXVECTOR3, ID3D11ShaderResourceView*,
ID3D11ShaderResourceView*);
void RenderShader(ID3D11DeviceContext*, int);
private:
ID3D11VertexShader* m_vertexShader;
ID3D11PixelShader* m_pixelShader;
ID3D11InputLayout* m_layout;
ID3D11SamplerState* m_sampleState;
ID3D11Buffer* m_matrixBuffer;
ID3D11Buffer* m_lightBuffer;
};
#endif
Terrainshaderclass.cpp
////////////////////////////////////////////////////////////////////////////////
// Filename: terrainshaderclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "terrainshaderclass.h"
TerrainShaderClass::TerrainShaderClass()
{
m_vertexShader = 0;
m_pixelShader = 0;
m_layout = 0;
m_sampleState = 0;
m_matrixBuffer = 0;
m_lightBuffer = 0;
}
TerrainShaderClass::TerrainShaderClass(const TerrainShaderClass& other)
{
}
TerrainShaderClass::~TerrainShaderClass()
{
}
bool TerrainShaderClass::Initialize(ID3D11Device* device, HWND hwnd)
{
bool result;
// Initialize the vertex and pixel shaders.
result = InitializeShader(device, hwnd, L"../Engine/terrain.vs", L"../Engine/terrain.ps");
if(!result)
{
return false;
}
return true;
}
void TerrainShaderClass::Shutdown()
{
// Shutdown the vertex and pixel shaders as well as the related objects.
ShutdownShader();
return;
}
bool TerrainShaderClass::Render(ID3D11DeviceContext* deviceContext, int indexCount, D3DXMATRIX worldMatrix, D3DXMATRIX viewMatrix,
D3DXMATRIX projectionMatrix, D3DXVECTOR4 ambientColor, D3DXVECTOR4 diffuseColor, D3DXVECTOR3 lightDirection,
ID3D11ShaderResourceView* texture, ID3D11ShaderResourceView* detailTexture)
{
bool result;
// Set the shader parameters that it will use for rendering.
result = SetShaderParameters(deviceContext, worldMatrix, viewMatrix, projectionMatrix, ambientColor, diffuseColor, lightDirection, texture,
detailTexture);
if(!result)
{
return false;
}
// Now render the prepared buffers with the shader.
RenderShader(deviceContext, indexCount);
return true;
}
bool TerrainShaderClass::InitializeShader(ID3D11Device* device, HWND hwnd, WCHAR* vsFilename, WCHAR* psFilename)
{
HRESULT result;
ID3D10Blob* errorMessage;
ID3D10Blob* vertexShaderBuffer;
ID3D10Blob* pixelShaderBuffer;
D3D11_INPUT_ELEMENT_DESC polygonLayout[4];
unsigned int numElements;
D3D11_SAMPLER_DESC samplerDesc;
D3D11_BUFFER_DESC matrixBufferDesc;
D3D11_BUFFER_DESC lightBufferDesc;
// Initialize the pointers this function will use to null.
errorMessage = 0;
vertexShaderBuffer = 0;
pixelShaderBuffer = 0;
// Compile the vertex shader code.
result = D3DX11CompileFromFile(vsFilename, NULL, NULL, "TerrainVertexShader", "vs_5_0", D3D10_SHADER_ENABLE_STRICTNESS, 0, NULL,
&vertexShaderBuffer, &errorMessage, NULL);
if(FAILED(result))
{
// If the shader failed to compile it should have writen something to the error message.
if(errorMessage)
{
OutputShaderErrorMessage(errorMessage, hwnd, vsFilename);
}
// If there was nothing in the error message then it simply could not find the shader file itself.
else
{
MessageBox(hwnd, vsFilename, L"Missing Shader File", MB_OK);
}
return false;
}
// Compile the pixel shader code.
result = D3DX11CompileFromFile(psFilename, NULL, NULL, "TerrainPixelShader", "ps_5_0", D3D10_SHADER_ENABLE_STRICTNESS, 0, NULL,
&pixelShaderBuffer, &errorMessage, NULL);
if(FAILED(result))
{
// If the shader failed to compile it should have writen something to the error message.
if(errorMessage)
{
OutputShaderErrorMessage(errorMessage, hwnd, psFilename);
}
// If there was nothing in the error message then it simply could not find the file itself.
else
{
MessageBox(hwnd, psFilename, L"Missing Shader File", MB_OK);
}
return false;
}
// Create the vertex shader from the buffer.
result = device->CreateVertexShader(vertexShaderBuffer->GetBufferPointer(), vertexShaderBuffer->GetBufferSize(), NULL, &m_vertexShader);
if(FAILED(result))
{
return false;
}
// Create the pixel shader from the buffer.
result = device->CreatePixelShader(pixelShaderBuffer->GetBufferPointer(), pixelShaderBuffer->GetBufferSize(), NULL, &m_pixelShader);
if(FAILED(result))
{
return false;
}
// Create the vertex input layout description.
polygonLayout[0].SemanticName = "POSITION";
polygonLayout[0].SemanticIndex = 0;
polygonLayout[0].Format = DXGI_FORMAT_R32G32B32_FLOAT;
polygonLayout[0].InputSlot = 0;
polygonLayout[0].AlignedByteOffset = 0;
polygonLayout[0].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[0].InstanceDataStepRate = 0;
The TEXCOORD part of the layout has been changed from two floats into four floats. We are going to pack an extra set of texture coordinates in the buffer so that the detail map texture can be mapped differently than the regular ground texture.
polygonLayout[1].SemanticName = "TEXCOORD";
polygonLayout[1].SemanticIndex = 0;
polygonLayout[1].Format = DXGI_FORMAT_R32G32B32A32_FLOAT;
polygonLayout[1].InputSlot = 0;
polygonLayout[1].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
polygonLayout[1].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[1].InstanceDataStepRate = 0;
polygonLayout[2].SemanticName = "NORMAL";
polygonLayout[2].SemanticIndex = 0;
polygonLayout[2].Format = DXGI_FORMAT_R32G32B32_FLOAT;
polygonLayout[2].InputSlot = 0;
polygonLayout[2].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
polygonLayout[2].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[2].InstanceDataStepRate = 0;
polygonLayout[3].SemanticName = "COLOR";
polygonLayout[3].SemanticIndex = 0;
polygonLayout[3].Format = DXGI_FORMAT_R32G32B32A32_FLOAT;
polygonLayout[3].InputSlot = 0;
polygonLayout[3].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
polygonLayout[3].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
polygonLayout[3].InstanceDataStepRate = 0;
// Get a count of the elements in the layout.
numElements = sizeof(polygonLayout) / sizeof(polygonLayout[0]);
// Create the vertex input layout.
result = device->CreateInputLayout(polygonLayout, numElements, vertexShaderBuffer->GetBufferPointer(), vertexShaderBuffer->GetBufferSize(),
&m_layout);
if(FAILED(result))
{
return false;
}
// Release the vertex shader buffer and pixel shader buffer since they are no longer needed.
vertexShaderBuffer->Release();
vertexShaderBuffer = 0;
pixelShaderBuffer->Release();
pixelShaderBuffer = 0;
// Create a texture sampler state description.
samplerDesc.Filter = D3D11_FILTER_MIN_MAG_MIP_LINEAR;
samplerDesc.AddressU = D3D11_TEXTURE_ADDRESS_WRAP;
samplerDesc.AddressV = D3D11_TEXTURE_ADDRESS_WRAP;
samplerDesc.AddressW = D3D11_TEXTURE_ADDRESS_WRAP;
samplerDesc.MipLODBias = 0.0f;
samplerDesc.MaxAnisotropy = 1;
samplerDesc.ComparisonFunc = D3D11_COMPARISON_ALWAYS;
samplerDesc.BorderColor[0] = 0;
samplerDesc.BorderColor[1] = 0;
samplerDesc.BorderColor[2] = 0;
samplerDesc.BorderColor[3] = 0;
samplerDesc.MinLOD = 0;
samplerDesc.MaxLOD = D3D11_FLOAT32_MAX;
// Create the texture sampler state.
result = device->CreateSamplerState(&samplerDesc, &m_sampleState);
if(FAILED(result))
{
return false;
}
// Setup the description of the dynamic matrix constant buffer that is in the vertex shader.
matrixBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
matrixBufferDesc.ByteWidth = sizeof(MatrixBufferType);
matrixBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
matrixBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
matrixBufferDesc.MiscFlags = 0;
matrixBufferDesc.StructureByteStride = 0;
// Create the constant buffer pointer so we can access the vertex shader constant buffer from within this class.
result = device->CreateBuffer(&matrixBufferDesc, NULL, &m_matrixBuffer);
if(FAILED(result))
{
return false;
}
// Setup the description of the light dynamic constant buffer that is in the pixel shader.
lightBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
lightBufferDesc.ByteWidth = sizeof(LightBufferType);
lightBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
lightBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
lightBufferDesc.MiscFlags = 0;
lightBufferDesc.StructureByteStride = 0;
// Create the constant buffer pointer so we can access the vertex shader constant buffer from within this class.
result = device->CreateBuffer(&lightBufferDesc, NULL, &m_lightBuffer);
if(FAILED(result))
{
return false;
}
return true;
}
void TerrainShaderClass::ShutdownShader()
{
// Release the light constant buffer.
if(m_lightBuffer)
{
m_lightBuffer->Release();
m_lightBuffer = 0;
}
// Release the matrix constant buffer.
if(m_matrixBuffer)
{
m_matrixBuffer->Release();
m_matrixBuffer = 0;
}
// Release the sampler state.
if(m_sampleState)
{
m_sampleState->Release();
m_sampleState = 0;
}
// Release the layout.
if(m_layout)
{
m_layout->Release();
m_layout = 0;
}
// Release the pixel shader.
if(m_pixelShader)
{
m_pixelShader->Release();
m_pixelShader = 0;
}
// Release the vertex shader.
if(m_vertexShader)
{
m_vertexShader->Release();
m_vertexShader = 0;
}
return;
}
void TerrainShaderClass::OutputShaderErrorMessage(ID3D10Blob* errorMessage, HWND hwnd, WCHAR* shaderFilename)
{
char* compileErrors;
unsigned long bufferSize, i;
ofstream fout;
// Get a pointer to the error message text buffer.
compileErrors = (char*)(errorMessage->GetBufferPointer());
// Get the length of the message.
bufferSize = errorMessage->GetBufferSize();
// Open a file to write the error message to.
fout.open("shader-error.txt");
// Write out the error message.
for(i=0; i<bufferSize; i++)
{
fout << compileErrors[i];
}
// Close the file.
fout.close();
// Release the error message.
errorMessage->Release();
errorMessage = 0;
// Pop a message up on the screen to notify the user to check the text file for compile errors.
MessageBox(hwnd, L"Error compiling shader. Check shader-error.txt for message.", shaderFilename, MB_OK);
return;
}
The SetShaderParameters function now takes as input an additional texture resource for the detail texture.
bool TerrainShaderClass::SetShaderParameters(ID3D11DeviceContext* deviceContext, D3DXMATRIX worldMatrix, D3DXMATRIX viewMatrix,
D3DXMATRIX projectionMatrix, D3DXVECTOR4 ambientColor, D3DXVECTOR4 diffuseColor, D3DXVECTOR3 lightDirection,
ID3D11ShaderResourceView* texture, ID3D11ShaderResourceView* detailTexture)
{
HRESULT result;
D3D11_MAPPED_SUBRESOURCE mappedResource;
unsigned int bufferNumber;
MatrixBufferType* dataPtr;
LightBufferType* dataPtr2;
// Transpose the matrices to prepare them for the shader.
D3DXMatrixTranspose(&worldMatrix, &worldMatrix);
D3DXMatrixTranspose(&viewMatrix, &viewMatrix);
D3DXMatrixTranspose(&projectionMatrix, &projectionMatrix);
// Lock the constant buffer so it can be written to.
result = deviceContext->Map(m_matrixBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
if(FAILED(result))
{
return false;
}
// Get a pointer to the data in the constant buffer.
dataPtr = (MatrixBufferType*)mappedResource.pData;
// Copy the matrices into the constant buffer.
dataPtr->world = worldMatrix;
dataPtr->view = viewMatrix;
dataPtr->projection = projectionMatrix;
// Unlock the constant buffer.
deviceContext->Unmap(m_matrixBuffer, 0);
// Set the position of the constant buffer in the vertex shader.
bufferNumber = 0;
// Now set the constant buffer in the vertex shader with the updated values.
deviceContext->VSSetConstantBuffers(bufferNumber, 1, &m_matrixBuffer);
// Lock the light constant buffer so it can be written to.
result = deviceContext->Map(m_lightBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
if(FAILED(result))
{
return false;
}
// Get a pointer to the data in the constant buffer.
dataPtr2 = (LightBufferType*)mappedResource.pData;
// Copy the lighting variables into the constant buffer.
dataPtr2->ambientColor = ambientColor;
dataPtr2->diffuseColor = diffuseColor;
dataPtr2->lightDirection = lightDirection;
dataPtr2->padding = 0.0f;
// Unlock the constant buffer.
deviceContext->Unmap(m_lightBuffer, 0);
// Set the position of the light constant buffer in the pixel shader.
bufferNumber = 0;
// Finally set the light constant buffer in the pixel shader with the updated values.
deviceContext->PSSetConstantBuffers(bufferNumber, 1, &m_lightBuffer);
// Set the texture resources in the pixel shader.
deviceContext->PSSetShaderResources(0, 1, &texture);
The detail map texture is set in the pixel shader in the second slot.
deviceContext->PSSetShaderResources(1, 1, &detailTexture);
return true;
}
void TerrainShaderClass::RenderShader(ID3D11DeviceContext* deviceContext, int indexCount)
{
// Set the vertex input layout.
deviceContext->IASetInputLayout(m_layout);
// Set the vertex and pixel shaders that will be used to render this triangle.
deviceContext->VSSetShader(m_vertexShader, NULL, 0);
deviceContext->PSSetShader(m_pixelShader, NULL, 0);
// Set the sampler state in the pixel shader.
deviceContext->PSSetSamplers(0, 1, &m_sampleState);
// Render the triangle.
deviceContext->DrawIndexed(indexCount, 0, 0);
return;
}
Terrainclass.h
////////////////////////////////////////////////////////////////////////////////
// Filename: terrainclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _TERRAINCLASS_H_
#define _TERRAINCLASS_H_
//////////////
// INCLUDES //
//////////////
#include <d3d11.h>
#include <d3dx10math.h>
#include <stdio.h>
///////////////////////
// MY CLASS INCLUDES //
///////////////////////
#include "textureclass.h"
/////////////
// GLOBALS //
/////////////
const int TEXTURE_REPEAT = 16;
////////////////////////////////////////////////////////////////////////////////
// Class name: TerrainClass
////////////////////////////////////////////////////////////////////////////////
class TerrainClass
{
private:
We have increased the size of the texture coordinate vector from two floats to four. We will be putting a second set of texture coordinates in the vector so that the detail map texture can be mapped separately from the regular ground texture.
struct VertexType
{
D3DXVECTOR3 position;
D3DXVECTOR4 texture;
D3DXVECTOR3 normal;
D3DXVECTOR4 color;
};
struct HeightMapType
{
float x, y, z;
float tu, tv;
float nx, ny, nz;
float r, g, b;
};
struct VectorType
{
float x, y, z;
};
public:
TerrainClass();
TerrainClass(const TerrainClass&);
~TerrainClass();
bool Initialize(ID3D11Device*, char*, WCHAR*, char*, WCHAR*);
void Shutdown();
void Render(ID3D11DeviceContext*);
int GetIndexCount();
ID3D11ShaderResourceView* GetTexture();
There is now a new helper function that will return the pointer to the detail map texture resource so the shader can access the texture.
ID3D11ShaderResourceView* GetDetailMapTexture(); private: bool LoadHeightMap(char*); void NormalizeHeightMap(); bool CalculateNormals(); void ShutdownHeightMap(); void CalculateTextureCoordinates(); bool LoadTextures(ID3D11Device*, WCHAR*, WCHAR*); void ReleaseTextures(); bool LoadColorMap(char*); bool InitializeBuffers(ID3D11Device*); void ShutdownBuffers(); void RenderBuffers(ID3D11DeviceContext*); private: int m_terrainWidth, m_terrainHeight; int m_vertexCount, m_indexCount; ID3D11Buffer *m_vertexBuffer, *m_indexBuffer; HeightMapType* m_heightMap;
We have added a second texture object for the detail map texture.
TextureClass *m_Texture, *m_DetailTexture; }; #endif
Terrainclass.cpp
////////////////////////////////////////////////////////////////////////////////
// Filename: terrainclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "terrainclass.h"
TerrainClass::TerrainClass()
{
m_vertexBuffer = 0;
m_indexBuffer = 0;
m_heightMap = 0;
m_Texture = 0;
Initialize the detail map texture to null in the class constructor.
m_DetailTexture = 0;
}
TerrainClass::TerrainClass(const TerrainClass& other)
{
}
TerrainClass::~TerrainClass()
{
}
bool TerrainClass::Initialize(ID3D11Device* device, char* heightMapFilename, WCHAR* textureFilename, char* colorMapFilename, WCHAR* detailMapFilename)
{
bool result;
// Load in the height map for the terrain.
result = LoadHeightMap(heightMapFilename);
if(!result)
{
return false;
}
// Normalize the height of the height map.
NormalizeHeightMap();
// Calculate the normals for the terrain data.
result = CalculateNormals();
if(!result)
{
return false;
}
// Calculate the texture coordinates.
CalculateTextureCoordinates();
LoadTextures now takes in the file name of the detail map texture as input.
// Load the textures.
result = LoadTextures(device, textureFilename, detailMapFilename);
if(!result)
{
return false;
}
// Load in the color map for the terrain.
result = LoadColorMap(colorMapFilename);
if(!result)
{
return false;
}
// Initialize the vertex and index buffer that hold the geometry for the terrain.
result = InitializeBuffers(device);
if(!result)
{
return false;
}
return true;
}
void TerrainClass::Shutdown()
{
// Release the textures.
ReleaseTextures();
// Release the vertex and index buffer.
ShutdownBuffers();
// Release the height map data.
ShutdownHeightMap();
return;
}
void TerrainClass::Render(ID3D11DeviceContext* deviceContext)
{
// Put the vertex and index buffers on the graphics pipeline to prepare them for drawing.
RenderBuffers(deviceContext);
return;
}
int TerrainClass::GetIndexCount()
{
return m_indexCount;
}
ID3D11ShaderResourceView* TerrainClass::GetTexture()
{
return m_Texture->GetTexture();
}
The GetDetailMapTexutre function returns the pointer to the detail texture resource.
ID3D11ShaderResourceView* TerrainClass::GetDetailMapTexture()
{
return m_DetailTexture->GetTexture();
}
bool TerrainClass::LoadHeightMap(char* filename)
{
FILE* filePtr;
int error;
unsigned int count;
BITMAPFILEHEADER bitmapFileHeader;
BITMAPINFOHEADER bitmapInfoHeader;
int imageSize, i, j, k, index;
unsigned char* bitmapImage;
unsigned char height;
// Open the height map file in binary.
error = fopen_s(&filePtr, filename, "rb");
if(error != 0)
{
return false;
}
// Read in the file header.
count = fread(&bitmapFileHeader, sizeof(BITMAPFILEHEADER), 1, filePtr);
if(count != 1)
{
return false;
}
// Read in the bitmap info header.
count = fread(&bitmapInfoHeader, sizeof(BITMAPINFOHEADER), 1, filePtr);
if(count != 1)
{
return false;
}
// Save the dimensions of the terrain.
m_terrainWidth = bitmapInfoHeader.biWidth;
m_terrainHeight = bitmapInfoHeader.biHeight;
// Calculate the size of the bitmap image data.
imageSize = m_terrainWidth * m_terrainHeight * 3;
// Allocate memory for the bitmap image data.
bitmapImage = new unsigned char[imageSize];
if(!bitmapImage)
{
return false;
}
// Move to the beginning of the bitmap data.
fseek(filePtr, bitmapFileHeader.bfOffBits, SEEK_SET);
// Read in the bitmap image data.
count = fread(bitmapImage, 1, imageSize, filePtr);
if(count != imageSize)
{
return false;
}
// Close the file.
error = fclose(filePtr);
if(error != 0)
{
return false;
}
// Create the structure to hold the height map data.
m_heightMap = new HeightMapType[m_terrainWidth * m_terrainHeight];
if(!m_heightMap)
{
return false;
}
// Initialize the position in the image data buffer.
k=0;
// Read the image data into the height map.
for(j=0; j<m_terrainHeight; j++)
{
for(i=0; i<m_terrainWidth; i++)
{
height = bitmapImage[k];
index = (m_terrainHeight * j) + i;
m_heightMap[index].x = (float)i;
m_heightMap[index].y = (float)height;
m_heightMap[index].z = (float)j;
k+=3;
}
}
// Release the bitmap image data.
delete [] bitmapImage;
bitmapImage = 0;
return true;
}
void TerrainClass::NormalizeHeightMap()
{
int i, j;
for(j=0; j<m_terrainHeight; j++)
{
for(i=0; i<m_terrainWidth; i++)
{
m_heightMap[(m_terrainHeight * j) + i].y /= 15.0f;
}
}
return;
}
bool TerrainClass::CalculateNormals()
{
int i, j, index1, index2, index3, index, count;
float vertex1[3], vertex2[3], vertex3[3], vector1[3], vector2[3], sum[3], length;
VectorType* normals;
// Create a temporary array to hold the un-normalized normal vectors.
normals = new VectorType[(m_terrainHeight-1) * (m_terrainWidth-1)];
if(!normals)
{
return false;
}
// Go through all the faces in the mesh and calculate their normals.
for(j=0; j<(m_terrainHeight-1); j++)
{
for(i=0; i<(m_terrainWidth-1); i++)
{
index1 = (j * m_terrainHeight) + i;
index2 = (j * m_terrainHeight) + (i+1);
index3 = ((j+1) * m_terrainHeight) + i;
// Get three vertices from the face.
vertex1[0] = m_heightMap[index1].x;
vertex1[1] = m_heightMap[index1].y;
vertex1[2] = m_heightMap[index1].z;
vertex2[0] = m_heightMap[index2].x;
vertex2[1] = m_heightMap[index2].y;
vertex2[2] = m_heightMap[index2].z;
vertex3[0] = m_heightMap[index3].x;
vertex3[1] = m_heightMap[index3].y;
vertex3[2] = m_heightMap[index3].z;
// Calculate the two vectors for this face.
vector1[0] = vertex1[0] - vertex3[0];
vector1[1] = vertex1[1] - vertex3[1];
vector1[2] = vertex1[2] - vertex3[2];
vector2[0] = vertex3[0] - vertex2[0];
vector2[1] = vertex3[1] - vertex2[1];
vector2[2] = vertex3[2] - vertex2[2];
index = (j * (m_terrainHeight-1)) + i;
// Calculate the cross product of those two vectors to get the un-normalized value for this face normal.
normals[index].x = (vector1[1] * vector2[2]) - (vector1[2] * vector2[1]);
normals[index].y = (vector1[2] * vector2[0]) - (vector1[0] * vector2[2]);
normals[index].z = (vector1[0] * vector2[1]) - (vector1[1] * vector2[0]);
}
}
// Now go through all the vertices and take an average of each face normal
// that the vertex touches to get the averaged normal for that vertex.
for(j=0; j<m_terrainHeight; j++)
{
for(i=0; i<m_terrainWidth; i++)
{
// Initialize the sum.
sum[0] = 0.0f;
sum[1] = 0.0f;
sum[2] = 0.0f;
// Initialize the count.
count = 0;
// Bottom left face.
if(((i-1) >= 0) && ((j-1) >= 0))
{
index = ((j-1) * (m_terrainHeight-1)) + (i-1);
sum[0] += normals[index].x;
sum[1] += normals[index].y;
sum[2] += normals[index].z;
count++;
}
// Bottom right face.
if((i < (m_terrainWidth-1)) && ((j-1) >= 0))
{
index = ((j-1) * (m_terrainHeight-1)) + i;
sum[0] += normals[index].x;
sum[1] += normals[index].y;
sum[2] += normals[index].z;
count++;
}
// Upper left face.
if(((i-1) >= 0) && (j < (m_terrainHeight-1)))
{
index = (j * (m_terrainHeight-1)) + (i-1);
sum[0] += normals[index].x;
sum[1] += normals[index].y;
sum[2] += normals[index].z;
count++;
}
// Upper right face.
if((i < (m_terrainWidth-1)) && (j < (m_terrainHeight-1)))
{
index = (j * (m_terrainHeight-1)) + i;
sum[0] += normals[index].x;
sum[1] += normals[index].y;
sum[2] += normals[index].z;
count++;
}
// Take the average of the faces touching this vertex.
sum[0] = (sum[0] / (float)count);
sum[1] = (sum[1] / (float)count);
sum[2] = (sum[2] / (float)count);
// Calculate the length of this normal.
length = sqrt((sum[0] * sum[0]) + (sum[1] * sum[1]) + (sum[2] * sum[2]));
// Get an index to the vertex location in the height map array.
index = (j * m_terrainHeight) + i;
// Normalize the final shared normal for this vertex and store it in the height map array.
m_heightMap[index].nx = (sum[0] / length);
m_heightMap[index].ny = (sum[1] / length);
m_heightMap[index].nz = (sum[2] / length);
}
}
// Release the temporary normals.
delete [] normals;
normals = 0;
return true;
}
void TerrainClass::ShutdownHeightMap()
{
if(m_heightMap)
{
delete [] m_heightMap;
m_heightMap = 0;
}
return;
}
void TerrainClass::CalculateTextureCoordinates()
{
int incrementCount, i, j, tuCount, tvCount;
float incrementValue, tuCoordinate, tvCoordinate;
// Calculate how much to increment the texture coordinates by.
incrementValue = (float)TEXTURE_REPEAT / (float)m_terrainWidth;
// Calculate how many times to repeat the texture.
incrementCount = m_terrainWidth / TEXTURE_REPEAT;
// Initialize the tu and tv coordinate values.
tuCoordinate = 0.0f;
tvCoordinate = 1.0f;
// Initialize the tu and tv coordinate indexes.
tuCount = 0;
tvCount = 0;
// Loop through the entire height map and calculate the tu and tv texture coordinates for each vertex.
for(j=0; j<m_terrainHeight; j++)
{
for(i=0; i<m_terrainWidth; i++)
{
// Store the texture coordinate in the height map.
m_heightMap[(m_terrainHeight * j) + i].tu = tuCoordinate;
m_heightMap[(m_terrainHeight * j) + i].tv = tvCoordinate;
// Increment the tu texture coordinate by the increment value and increment the index by one.
tuCoordinate += incrementValue;
tuCount++;
// Check if at the far right end of the texture and if so then start at the beginning again.
if(tuCount == incrementCount)
{
tuCoordinate = 0.0f;
tuCount = 0;
}
}
// Increment the tv texture coordinate by the increment value and increment the index by one.
tvCoordinate -= incrementValue;
tvCount++;
// Check if at the top of the texture and if so then start at the bottom again.
if(tvCount == incrementCount)
{
tvCoordinate = 1.0f;
tvCount = 0;
}
}
return;
}
bool TerrainClass::LoadTextures(ID3D11Device* device, WCHAR* filename, WCHAR* detailMapFilename)
{
bool result;
// Create the texture object.
m_Texture = new TextureClass;
if(!m_Texture)
{
return false;
}
// Initialize the texture texture object.
result = m_Texture->Initialize(device, filename);
if(!result)
{
return false;
}
The new detail map texture is loaded here.
// Create the detail map texture object.
m_DetailTexture = new TextureClass;
if(!m_DetailTexture)
{
return false;
}
// Initialize the detail map texture object.
result = m_DetailTexture->Initialize(device, detailMapFilename);
if(!result)
{
return false;
}
return true;
}
void TerrainClass::ReleaseTextures()
{
The new detail map texture is released here in the ReleaseTextures function.
// Release the detail map texture object.
if(m_DetailTexture)
{
m_DetailTexture->Shutdown();
delete m_DetailTexture;
m_DetailTexture = 0;
}
// Release the texture object.
if(m_Texture)
{
m_Texture->Shutdown();
delete m_Texture;
m_Texture = 0;
}
return;
}
bool TerrainClass::LoadColorMap(char* filename)
{
int error, imageSize, i, j, k, index, colorMapWidth, colorMapHeight;
FILE* filePtr;
unsigned int count;
BITMAPFILEHEADER bitmapFileHeader;
BITMAPINFOHEADER bitmapInfoHeader;
unsigned char* bitmapImage;
// Open the color map file in binary.
error = fopen_s(&filePtr, filename, "rb");
if(error != 0)
{
return false;
}
// Read in the file header.
count = fread(&bitmapFileHeader, sizeof(BITMAPFILEHEADER), 1, filePtr);
if(count != 1)
{
return false;
}
// Read in the bitmap info header.
count = fread(&bitmapInfoHeader, sizeof(BITMAPINFOHEADER), 1, filePtr);
if(count != 1)
{
return false;
}
// Make sure the color map dimensions are the same as the terrain dimensions for easy 1 to 1 mapping.
colorMapWidth = bitmapInfoHeader.biWidth;
colorMapHeight = bitmapInfoHeader.biHeight;
if((colorMapWidth != m_terrainWidth) || (colorMapHeight != m_terrainHeight))
{
return false;
}
// Calculate the size of the bitmap image data.
imageSize = colorMapWidth * colorMapHeight * 3;
// Allocate memory for the bitmap image data.
bitmapImage = new unsigned char[imageSize];
if(!bitmapImage)
{
return false;
}
// Move to the beginning of the bitmap data.
fseek(filePtr, bitmapFileHeader.bfOffBits, SEEK_SET);
// Read in the bitmap image data.
count = fread(bitmapImage, 1, imageSize, filePtr);
if(count != imageSize)
{
return false;
}
// Close the file.
error = fclose(filePtr);
if(error != 0)
{
return false;
}
// Initialize the position in the image data buffer.
k=0;
// Read the image data into the color map portion of the height map structure.
for(j=0; j<colorMapHeight; j++)
{
for(i=0; i<colorMapWidth; i++)
{
index = (colorMapHeight * j) + i;
m_heightMap[index].b = (float)bitmapImage[k] / 255.0f;
m_heightMap[index].g = (float)bitmapImage[k+1] / 255.0f;
m_heightMap[index].r = (float)bitmapImage[k+2] / 255.0f;
k+=3;
}
}
// Release the bitmap image data.
delete [] bitmapImage;
bitmapImage = 0;
return true;
}
bool TerrainClass::InitializeBuffers(ID3D11Device* device)
{
VertexType* vertices;
unsigned long* indices;
int index, i, j;
D3D11_BUFFER_DESC vertexBufferDesc, indexBufferDesc;
D3D11_SUBRESOURCE_DATA vertexData, indexData;
HRESULT result;
int index1, index2, index3, index4;
float tu, tv;
// Calculate the number of vertices in the terrain mesh.
m_vertexCount = (m_terrainWidth - 1) * (m_terrainHeight - 1) * 6;
// Set the index count to the same as the vertex count.
m_indexCount = m_vertexCount;
// Create the vertex array.
vertices = new VertexType[m_vertexCount];
if(!vertices)
{
return false;
}
// Create the index array.
indices = new unsigned long[m_indexCount];
if(!indices)
{
return false;
}
Loading the vertex buffer has changed to accommodate the new detail map texture. We don't want to stretch the detail map texture over multiple polygons like we do with the ground texture. We instead want a single detail texture mapped to a single polygon so we can achieve a very highly detailed terrain appearance. Because of this we need to send in two sets texture coordinates into the shaders (uv and zw). The first set is for the ground texture and the second set is the one to one mapping of the detail map texture to each polygon.
// Initialize the index to the vertex buffer.
index = 0;
// Load the vertex and index array with the terrain data.
for(j=0; j<(m_terrainHeight-1); j++)
{
for(i=0; i<(m_terrainWidth-1); i++)
{
index1 = (m_terrainHeight * j) + i; // Bottom left.
index2 = (m_terrainHeight * j) + (i+1); // Bottom right.
index3 = (m_terrainHeight * (j+1)) + i; // Upper left.
index4 = (m_terrainHeight * (j+1)) + (i+1); // Upper right.
// Upper left.
tv = m_heightMap[index3].tv;
// Modify the texture coordinates to cover the top edge.
if(tv == 1.0f) { tv = 0.0f; }
vertices[index].position = D3DXVECTOR3(m_heightMap[index3].x, m_heightMap[index3].y, m_heightMap[index3].z);
vertices[index].texture = D3DXVECTOR4(m_heightMap[index3].tu, tv, 0.0f, 0.0f);
vertices[index].normal = D3DXVECTOR3(m_heightMap[index3].nx, m_heightMap[index3].ny, m_heightMap[index3].nz);
vertices[index].color = D3DXVECTOR4(m_heightMap[index3].r, m_heightMap[index3].g, m_heightMap[index3].b, 1.0f);
indices[index] = index;
index++;
// Upper right.
tu = m_heightMap[index4].tu;
tv = m_heightMap[index4].tv;
// Modify the texture coordinates to cover the top and right edge.
if(tu == 0.0f) { tu = 1.0f; }
if(tv == 1.0f) { tv = 0.0f; }
vertices[index].position = D3DXVECTOR3(m_heightMap[index4].x, m_heightMap[index4].y, m_heightMap[index4].z);
vertices[index].texture = D3DXVECTOR4(tu, tv, 1.0f, 0.0f);
vertices[index].normal = D3DXVECTOR3(m_heightMap[index4].nx, m_heightMap[index4].ny, m_heightMap[index4].nz);
vertices[index].color = D3DXVECTOR4(m_heightMap[index4].r, m_heightMap[index4].g, m_heightMap[index4].b, 1.0f);
indices[index] = index;
index++;
// Bottom left.
vertices[index].position = D3DXVECTOR3(m_heightMap[index1].x, m_heightMap[index1].y, m_heightMap[index1].z);
vertices[index].texture = D3DXVECTOR4(m_heightMap[index1].tu, m_heightMap[index1].tv, 0.0f, 1.0f);
vertices[index].normal = D3DXVECTOR3(m_heightMap[index1].nx, m_heightMap[index1].ny, m_heightMap[index1].nz);
vertices[index].color = D3DXVECTOR4(m_heightMap[index1].r, m_heightMap[index1].g, m_heightMap[index1].b, 1.0f);
indices[index] = index;
index++;
// Bottom left.
vertices[index].position = D3DXVECTOR3(m_heightMap[index1].x, m_heightMap[index1].y, m_heightMap[index1].z);
vertices[index].texture = D3DXVECTOR4(m_heightMap[index1].tu, m_heightMap[index1].tv, 0.0f, 1.0f);
vertices[index].normal = D3DXVECTOR3(m_heightMap[index1].nx, m_heightMap[index1].ny, m_heightMap[index1].nz);
vertices[index].color = D3DXVECTOR4(m_heightMap[index1].r, m_heightMap[index1].g, m_heightMap[index1].b, 1.0f);
indices[index] = index;
index++;
// Upper right.
tu = m_heightMap[index4].tu;
tv = m_heightMap[index4].tv;
// Modify the texture coordinates to cover the top and right edge.
if(tu == 0.0f) { tu = 1.0f; }
if(tv == 1.0f) { tv = 0.0f; }
vertices[index].position = D3DXVECTOR3(m_heightMap[index4].x, m_heightMap[index4].y, m_heightMap[index4].z);
vertices[index].texture = D3DXVECTOR4(tu, tv, 1.0f, 0.0f);
vertices[index].normal = D3DXVECTOR3(m_heightMap[index4].nx, m_heightMap[index4].ny, m_heightMap[index4].nz);
vertices[index].color = D3DXVECTOR4(m_heightMap[index4].r, m_heightMap[index4].g, m_heightMap[index4].b, 1.0f);
indices[index] = index;
index++;
// Bottom right.
tu = m_heightMap[index2].tu;
// Modify the texture coordinates to cover the right edge.
if(tu == 0.0f) { tu = 1.0f; }
vertices[index].position = D3DXVECTOR3(m_heightMap[index2].x, m_heightMap[index2].y, m_heightMap[index2].z);
vertices[index].texture = D3DXVECTOR4(tu, m_heightMap[index2].tv, 1.0f, 1.0f);
vertices[index].normal = D3DXVECTOR3(m_heightMap[index2].nx, m_heightMap[index2].ny, m_heightMap[index2].nz);
vertices[index].color = D3DXVECTOR4(m_heightMap[index2].r, m_heightMap[index2].g, m_heightMap[index2].b, 1.0f);
indices[index] = index;
index++;
}
}
// Set up the description of the static vertex buffer.
vertexBufferDesc.Usage = D3D11_USAGE_DEFAULT;
vertexBufferDesc.ByteWidth = sizeof(VertexType) * m_vertexCount;
vertexBufferDesc.BindFlags = D3D11_BIND_VERTEX_BUFFER;
vertexBufferDesc.CPUAccessFlags = 0;
vertexBufferDesc.MiscFlags = 0;
vertexBufferDesc.StructureByteStride = 0;
// Give the subresource structure a pointer to the vertex data.
vertexData.pSysMem = vertices;
vertexData.SysMemPitch = 0;
vertexData.SysMemSlicePitch = 0;
// Now create the vertex buffer.
result = device->CreateBuffer(&vertexBufferDesc, &vertexData, &m_vertexBuffer);
if(FAILED(result))
{
return false;
}
// Set up the description of the static index buffer.
indexBufferDesc.Usage = D3D11_USAGE_DEFAULT;
indexBufferDesc.ByteWidth = sizeof(unsigned long) * m_indexCount;
indexBufferDesc.BindFlags = D3D11_BIND_INDEX_BUFFER;
indexBufferDesc.CPUAccessFlags = 0;
indexBufferDesc.MiscFlags = 0;
indexBufferDesc.StructureByteStride = 0;
// Give the subresource structure a pointer to the index data.
indexData.pSysMem = indices;
indexData.SysMemPitch = 0;
indexData.SysMemSlicePitch = 0;
// Create the index buffer.
result = device->CreateBuffer(&indexBufferDesc, &indexData, &m_indexBuffer);
if(FAILED(result))
{
return false;
}
// Release the arrays now that the buffers have been created and loaded.
delete [] vertices;
vertices = 0;
delete [] indices;
indices = 0;
return true;
}
void TerrainClass::ShutdownBuffers()
{
// Release the index buffer.
if(m_indexBuffer)
{
m_indexBuffer->Release();
m_indexBuffer = 0;
}
// Release the vertex buffer.
if(m_vertexBuffer)
{
m_vertexBuffer->Release();
m_vertexBuffer = 0;
}
return;
}
void TerrainClass::RenderBuffers(ID3D11DeviceContext* deviceContext)
{
unsigned int stride;
unsigned int offset;
// Set vertex buffer stride and offset.
stride = sizeof(VertexType);
offset = 0;
// Set the vertex buffer to active in the input assembler so it can be rendered.
deviceContext->IASetVertexBuffers(0, 1, &m_vertexBuffer, &stride, &offset);
// Set the index buffer to active in the input assembler so it can be rendered.
deviceContext->IASetIndexBuffer(m_indexBuffer, DXGI_FORMAT_R32_UINT, 0);
// Set the type of primitive that should be rendered from this vertex buffer, in this case triangles.
deviceContext->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
return;
}
Applicationclass.h
//////////////////////////////////////////////////////////////////////////////// // Filename: applicationclass.h //////////////////////////////////////////////////////////////////////////////// #ifndef _APPLICATIONCLASS_H_ #define _APPLICATIONCLASS_H_ ///////////// // GLOBALS // ///////////// const bool FULL_SCREEN = true; const bool VSYNC_ENABLED = true; const float SCREEN_DEPTH = 1000.0f;
We have moved the near plane a little further from the camera to modify the precision of the depth buffer in the viewable near range.
const float SCREEN_NEAR = 1.0f; /////////////////////// // MY CLASS INCLUDES // /////////////////////// #include "inputclass.h" #include "d3dclass.h" #include "cameraclass.h" #include "terrainclass.h" #include "timerclass.h" #include "positionclass.h" #include "fpsclass.h" #include "cpuclass.h" #include "fontshaderclass.h" #include "textclass.h" #include "terrainshaderclass.h" #include "lightclass.h"
For this tutorial we have added four new classes to the ApplicationClass header file. We have the DebugWindowClass for rendering the depth buffer in a small window to the top left of the screen. The TextureShaderClass was added to render the debug window. RenderTextureClass was added to render the depth buffer data into a texture that could then be displayed in the debug window. And finally we added the DepthShaderClass for rendering the depth buffer. The program doesn't need these for the detail mapping but I added them so it is easier to visualize what is going on.
#include "debugwindowclass.h"
#include "textureshaderclass.h"
#include "rendertextureclass.h"
#include "depthshaderclass.h"
////////////////////////////////////////////////////////////////////////////////
// Class name: ApplicationClass
////////////////////////////////////////////////////////////////////////////////
class ApplicationClass
{
public:
ApplicationClass();
ApplicationClass(const ApplicationClass&);
~ApplicationClass();
bool Initialize(HINSTANCE, HWND, int, int);
void Shutdown();
bool Frame();
private:
bool HandleInput(float);
We have a new function for rendering the scene to a texture.
bool RenderSceneToTexture(); bool RenderGraphics(); private: InputClass* m_Input; D3DClass* m_Direct3D; CameraClass* m_Camera; TerrainClass* m_Terrain; TimerClass* m_Timer; PositionClass* m_Position; FpsClass* m_Fps; CpuClass* m_Cpu; FontShaderClass* m_FontShader; TextClass* m_Text; TerrainShaderClass* m_TerrainShader; LightClass* m_Light;
These are the four new class objects that will be used to visualize the depth buffer of the terrain in the debug window in the upper left corner of the screen.
DebugWindowClass* m_DebugWindow; TextureShaderClass* m_TextureShader; RenderTextureClass* m_RenderTexture; DepthShaderClass* m_DepthShader; }; #endif
Applicationclass.cpp
////////////////////////////////////////////////////////////////////////////////
// Filename: applicationclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "applicationclass.h"
ApplicationClass::ApplicationClass()
{
m_Input = 0;
m_Direct3D = 0;
m_Camera = 0;
m_Terrain = 0;
m_Timer = 0;
m_Position = 0;
m_Fps = 0;
m_Cpu = 0;
m_FontShader = 0;
m_Text = 0;
m_TerrainShader = 0;
m_Light = 0;
The four new class objects are initialized to null in the class constructor.
m_DebugWindow = 0;
m_TextureShader = 0;
m_RenderTexture = 0;
m_DepthShader = 0;
}
ApplicationClass::ApplicationClass(const ApplicationClass& other)
{
}
ApplicationClass::~ApplicationClass()
{
}
bool ApplicationClass::Initialize(HINSTANCE hinstance, HWND hwnd, int screenWidth, int screenHeight)
{
bool result;
float cameraX, cameraY, cameraZ;
D3DXMATRIX baseViewMatrix;
char videoCard[128];
int videoMemory;
// Create the input object. The input object will be used to handle reading the keyboard and mouse input from the user.
m_Input = new InputClass;
if(!m_Input)
{
return false;
}
// Initialize the input object.
result = m_Input->Initialize(hinstance, hwnd, screenWidth, screenHeight);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the input object.", L"Error", MB_OK);
return false;
}
// Create the Direct3D object.
m_Direct3D = new D3DClass;
if(!m_Direct3D)
{
return false;
}
// Initialize the Direct3D object.
result = m_Direct3D->Initialize(screenWidth, screenHeight, VSYNC_ENABLED, hwnd, FULL_SCREEN, SCREEN_DEPTH, SCREEN_NEAR);
if(!result)
{
MessageBox(hwnd, L"Could not initialize DirectX 11.", L"Error", MB_OK);
return false;
}
// Create the camera object.
m_Camera = new CameraClass;
if(!m_Camera)
{
return false;
}
// Initialize a base view matrix with the camera for 2D user interface rendering.
m_Camera->SetPosition(0.0f, 0.0f, -10.0f);
m_Camera->RenderBaseViewMatrix();
m_Camera->GetBaseViewMatrix(baseViewMatrix);
// Set the initial position of the camera.
cameraX = 100.0f;
cameraY = 2.0f;
cameraZ = 5.0f;
m_Camera->SetPosition(cameraX, cameraY, cameraZ);
// Create the terrain object.
m_Terrain = new TerrainClass;
if(!m_Terrain)
{
return false;
}
The TerrainClass object now loads the detail map texture.
// Initialize the terrain object.
result = m_Terrain->Initialize(m_Direct3D->GetDevice(), "../Engine/data/heightmap01.bmp", L"../Engine/data/dirt01.dds",
"../Engine/data/colorm01.bmp", L"../Engine/data/detail001.dds");
if(!result)
{
MessageBox(hwnd, L"Could not initialize the terrain object.", L"Error", MB_OK);
return false;
}
// Create the timer object.
m_Timer = new TimerClass;
if(!m_Timer)
{
return false;
}
// Initialize the timer object.
result = m_Timer->Initialize();
if(!result)
{
MessageBox(hwnd, L"Could not initialize the timer object.", L"Error", MB_OK);
return false;
}
// Create the position object.
m_Position = new PositionClass;
if(!m_Position)
{
return false;
}
// Set the initial position of the viewer to the same as the initial camera position.
m_Position->SetPosition(cameraX, cameraY, cameraZ);
// Create the fps object.
m_Fps = new FpsClass;
if(!m_Fps)
{
return false;
}
// Initialize the fps object.
m_Fps->Initialize();
// Create the cpu object.
m_Cpu = new CpuClass;
if(!m_Cpu)
{
return false;
}
// Initialize the cpu object.
m_Cpu->Initialize();
// Create the font shader object.
m_FontShader = new FontShaderClass;
if(!m_FontShader)
{
return false;
}
// Initialize the font shader object.
result = m_FontShader->Initialize(m_Direct3D->GetDevice(), hwnd);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the font shader object.", L"Error", MB_OK);
return false;
}
// Create the text object.
m_Text = new TextClass;
if(!m_Text)
{
return false;
}
// Initialize the text object.
result = m_Text->Initialize(m_Direct3D->GetDevice(), m_Direct3D->GetDeviceContext(), hwnd, screenWidth, screenHeight, baseViewMatrix);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the text object.", L"Error", MB_OK);
return false;
}
// Retrieve the video card information.
m_Direct3D->GetVideoCardInfo(videoCard, videoMemory);
// Set the video card information in the text object.
result = m_Text->SetVideoCardInfo(videoCard, videoMemory, m_Direct3D->GetDeviceContext());
if(!result)
{
MessageBox(hwnd, L"Could not set video card info in the text object.", L"Error", MB_OK);
return false;
}
// Create the terrain shader object.
m_TerrainShader = new TerrainShaderClass;
if(!m_TerrainShader)
{
return false;
}
// Initialize the terrain shader object.
result = m_TerrainShader->Initialize(m_Direct3D->GetDevice(), hwnd);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the terrain shader object.", L"Error", MB_OK);
return false;
}
// Create the light object.
m_Light = new LightClass;
if(!m_Light)
{
return false;
}
// Initialize the light object.
m_Light->SetAmbientColor(0.05f, 0.05f, 0.05f, 1.0f);
m_Light->SetDiffuseColor(1.0f, 1.0f, 1.0f, 1.0f);
m_Light->SetDirection(-0.5f, -1.0f, 0.0f);
The four new class objects are created and initialized here.
// Create the debug window bitmap object.
m_DebugWindow = new DebugWindowClass;
if(!m_DebugWindow)
{
return false;
}
// Initialize the debug window bitmap object.
result = m_DebugWindow->Initialize(m_Direct3D->GetDevice(), screenWidth, screenHeight, 256, 256);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the debug window bitmap object.", L"Error", MB_OK);
return false;
}
// Create the texture shader object.
m_TextureShader = new TextureShaderClass;
if(!m_TextureShader)
{
return false;
}
// Initialize the texture shader object.
result = m_TextureShader->Initialize(m_Direct3D->GetDevice(), hwnd);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the texture shader object.", L"Error", MB_OK);
return false;
}
// Create the render to texture object.
m_RenderTexture = new RenderTextureClass;
if(!m_RenderTexture)
{
return false;
}
// Initialize the render to texture object.
result = m_RenderTexture->Initialize(m_Direct3D->GetDevice(), screenWidth, screenHeight, SCREEN_DEPTH, SCREEN_NEAR);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the render to texture object.", L"Error", MB_OK);
return false;
}
// Create the depth shader object.
m_DepthShader = new DepthShaderClass;
if(!m_DepthShader)
{
return false;
}
// Initialize the depth shader object.
result = m_DepthShader->Initialize(m_Direct3D->GetDevice(), hwnd);
if(!result)
{
MessageBox(hwnd, L"Could not initialize the depth shader object.", L"Error", MB_OK);
return false;
}
return true;
}
void ApplicationClass::Shutdown()
{
We release the four new class objects in the Shutdown function.
// Release the depth shader object.
if(m_DepthShader)
{
m_DepthShader->Shutdown();
delete m_DepthShader;
m_DepthShader = 0;
}
// Release the render to texture object.
if(m_RenderTexture)
{
m_RenderTexture->Shutdown();
delete m_RenderTexture;
m_RenderTexture = 0;
}
// Release the texture shader object.
if(m_TextureShader)
{
m_TextureShader->Shutdown();
delete m_TextureShader;
m_TextureShader = 0;
}
// Release the debug window bitmap object.
if(m_DebugWindow)
{
m_DebugWindow->Shutdown();
delete m_DebugWindow;
m_DebugWindow = 0;
}
// Release the light object.
if(m_Light)
{
delete m_Light;
m_Light = 0;
}
// Release the terrain shader object.
if(m_TerrainShader)
{
m_TerrainShader->Shutdown();
delete m_TerrainShader;
m_TerrainShader = 0;
}
// Release the text object.
if(m_Text)
{
m_Text->Shutdown();
delete m_Text;
m_Text = 0;
}
// Release the font shader object.
if(m_FontShader)
{
m_FontShader->Shutdown();
delete m_FontShader;
m_FontShader = 0;
}
// Release the cpu object.
if(m_Cpu)
{
m_Cpu->Shutdown();
delete m_Cpu;
m_Cpu = 0;
}
// Release the fps object.
if(m_Fps)
{
delete m_Fps;
m_Fps = 0;
}
// Release the position object.
if(m_Position)
{
delete m_Position;
m_Position = 0;
}
// Release the timer object.
if(m_Timer)
{
delete m_Timer;
m_Timer = 0;
}
// Release the terrain object.
if(m_Terrain)
{
m_Terrain->Shutdown();
delete m_Terrain;
m_Terrain = 0;
}
// Release the camera object.
if(m_Camera)
{
delete m_Camera;
m_Camera = 0;
}
// Release the Direct3D object.
if(m_Direct3D)
{
m_Direct3D->Shutdown();
delete m_Direct3D;
m_Direct3D = 0;
}
// Release the input object.
if(m_Input)
{
m_Input->Shutdown();
delete m_Input;
m_Input = 0;
}
return;
}
bool ApplicationClass::Frame()
{
bool result;
// Read the user input.
result = m_Input->Frame();
if(!result)
{
return false;
}
// Check if the user pressed escape and wants to exit the application.
if(m_Input->IsEscapePressed() == true)
{
return false;
}
// Update the system stats.
m_Timer->Frame();
m_Fps->Frame();
m_Cpu->Frame();
// Update the FPS value in the text object.
result = m_Text->SetFps(m_Fps->GetFps(), m_Direct3D->GetDeviceContext());
if(!result)
{
return false;
}
// Update the CPU usage value in the text object.
result = m_Text->SetCpu(m_Cpu->GetCpuPercentage(), m_Direct3D->GetDeviceContext());
if(!result)
{
return false;
}
// Do the frame input processing.
result = HandleInput(m_Timer->GetTime());
if(!result)
{
return false;
}
// Render the graphics.
result = RenderGraphics();
if(!result)
{
return false;
}
return result;
}
bool ApplicationClass::HandleInput(float frameTime)
{
bool keyDown, result;
float posX, posY, posZ, rotX, rotY, rotZ;
// Set the frame time for calculating the updated position.
m_Position->SetFrameTime(frameTime);
// Handle the input.
keyDown = m_Input->IsLeftPressed();
m_Position->TurnLeft(keyDown);
keyDown = m_Input->IsRightPressed();
m_Position->TurnRight(keyDown);
keyDown = m_Input->IsUpPressed();
m_Position->MoveForward(keyDown);
keyDown = m_Input->IsDownPressed();
m_Position->MoveBackward(keyDown);
keyDown = m_Input->IsAPressed();
m_Position->MoveUpward(keyDown);
keyDown = m_Input->IsZPressed();
m_Position->MoveDownward(keyDown);
keyDown = m_Input->IsPgUpPressed();
m_Position->LookUpward(keyDown);
keyDown = m_Input->IsPgDownPressed();
m_Position->LookDownward(keyDown);
// Get the view point position/rotation.
m_Position->GetPosition(posX, posY, posZ);
m_Position->GetRotation(rotX, rotY, rotZ);
// Set the position of the camera.
m_Camera->SetPosition(posX, posY, posZ);
m_Camera->SetRotation(rotX, rotY, rotZ);
// Update the position values in the text object.
result = m_Text->SetCameraPosition(posX, posY, posZ, m_Direct3D->GetDeviceContext());
if(!result)
{
return false;
}
// Update the rotation values in the text object.
result = m_Text->SetCameraRotation(rotX, rotY, rotZ, m_Direct3D->GetDeviceContext());
if(!result)
{
return false;
}
return true;
}
We have added a new function to render the scene to texture. This is taken from the DirectX 11 render to texture tutorial. We first set the render to texture as the location where we draw to. Then we render the terrain using the depth shader instead of the terrain shader. Then we set the render location back to the normal back buffer. We now have a render to texture of the terrain showing the depth which we can use to apply to the debug window that displays the depth buffer in the RenderGraphics function.
bool ApplicationClass::RenderSceneToTexture()
{
D3DXMATRIX worldMatrix, viewMatrix, projectionMatrix;
bool result;
// Set the render target to be the render to texture.
m_RenderTexture->SetRenderTarget(m_Direct3D->GetDeviceContext());
// Clear the render to texture.
m_RenderTexture->ClearRenderTarget(m_Direct3D->GetDeviceContext(), 0.0f, 0.0f, 0.0f, 1.0f);
// Generate the view matrix based on the camera's position.
m_Camera->Render();
// Get the world, view, projection, ortho, and base view matrices from the camera and Direct3D objects.
m_Direct3D->GetWorldMatrix(worldMatrix);
m_Camera->GetViewMatrix(viewMatrix);
m_Direct3D->GetProjectionMatrix(projectionMatrix);
// Render the terrain using the depth shader.
m_Terrain->Render(m_Direct3D->GetDeviceContext());
result = m_DepthShader->Render(m_Direct3D->GetDeviceContext(), m_Terrain->GetIndexCount(), worldMatrix, viewMatrix, projectionMatrix);
if(!result)
{
return false;
}
// Reset the render target back to the original back buffer and not the render to texture anymore.
m_Direct3D->SetBackBufferRenderTarget();
// Reset the viewport back to the original.
m_Direct3D->ResetViewport();
return true;
}
bool ApplicationClass::RenderGraphics()
{
D3DXMATRIX worldMatrix, viewMatrix, projectionMatrix, orthoMatrix, baseViewMatrix;
bool result;
Start with the render to texture to render the depth buffer of the terrain to a texture that we can use for the debug window.
// First render the scene to a texture.
result = RenderSceneToTexture();
if(!result)
{
return false;
}
// Clear the scene.
m_Direct3D->BeginScene(0.0f, 0.0f, 0.0f, 1.0f);
// Generate the view matrix based on the camera's position.
m_Camera->Render();
// Get the world, view, projection, ortho, and base view matrices from the camera and Direct3D objects.
m_Direct3D->GetWorldMatrix(worldMatrix);
m_Camera->GetViewMatrix(viewMatrix);
m_Direct3D->GetProjectionMatrix(projectionMatrix);
m_Direct3D->GetOrthoMatrix(orthoMatrix);
We will need the base view matrix for the debug window 2D rendering.
m_Camera->GetBaseViewMatrix(baseViewMatrix); // Render the terrain buffers. m_Terrain->Render(m_Direct3D->GetDeviceContext());
We now send in the detail map texture when rendering the terrain.
// Render the terrain using the terrain shader.
result = m_TerrainShader->Render(m_Direct3D->GetDeviceContext(), m_Terrain->GetIndexCount(), worldMatrix, viewMatrix, projectionMatrix,
m_Light->GetAmbientColor(), m_Light->GetDiffuseColor(), m_Light->GetDirection(), m_Terrain->GetTexture(),
m_Terrain->GetDetailMapTexture());
if(!result)
{
return false;
}
// Turn off the Z buffer to begin all 2D rendering.
m_Direct3D->TurnZBufferOff();
Render the depth buffer texture to the 2D debug window using the texture shader.
// Put the debug window on the graphics pipeline to prepare it for drawing.
result = m_DebugWindow->Render(m_Direct3D->GetDeviceContext(), 100, 100);
if(!result)
{
return false;
}
// Render the bitmap model using the texture shader and the render to texture resource.
m_TextureShader->Render(m_Direct3D->GetDeviceContext(), m_DebugWindow->GetIndexCount(), worldMatrix, baseViewMatrix, orthoMatrix,
m_RenderTexture->GetShaderResourceView());
// Turn on the alpha blending before rendering the text.
m_Direct3D->TurnOnAlphaBlending();
// Render the text user interface elements.
result = m_Text->Render(m_Direct3D->GetDeviceContext(), m_FontShader, worldMatrix, orthoMatrix);
if(!result)
{
return false;
}
// Turn off alpha blending after rendering the text.
m_Direct3D->TurnOffAlphaBlending();
// Turn the Z buffer back on now that all 2D rendering has completed.
m_Direct3D->TurnZBufferOn();
// Present the rendered scene to the screen.
m_Direct3D->EndScene();
return true;
}
Summary
We now have a highly detailed terrain for when the user examines the ground nearby the camera.
To Do Exercises
1. Compile and run the program. Use the PgDn key to look at the ground to see the applied detail map texture.
2. Create your own detail map texture and apply it to the ground to see how it looks.
3. Play with the 0.9 distance in the pixel shader to see the effect it has on how close or far you can see the detail map.
4. Use bump mapping on the detail map texture to give an even higher level of detail up close. The shader will also need to include the bump mapping code.
Source Code
Source Code and Data Files: tersrc13.zip
Executable: terexe13.zip
