Tutorial 16: Small Body Water

This DirectX 11 terrain tutorial will cover how to implement small body water using HLSL and C++. The code in this tutorial builds on the previous terrain tutorials.

To implement small body water (lakes, rivers, ponds, swamps, and anything else that doesn't have big waves) we use a refractive and reflective rendering system. We render a refraction (everything under the water) and render a reflection (everything above the water) and then combine the results. If you have gone over the water tutorial in the DirectX tutorial section then you will understand these concepts. If you haven't read that tutorial then I suggest you review it first before proceeding as we simply expand on it here and add more features.

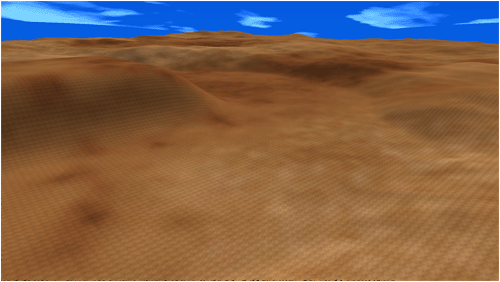

We will begin with a basic terrain scene. We require terrain for the refraction and something such as sky for the reflection.

We will also need a normal map for the water ripple effect. A gaussian blurred height map and the Nvidia normal map filter for Photoshop can create something like the following:

We then create a single quad with a radius large enough to cover the area of the water. We will be tiling the normal map texture over the quad so we don't need it subdivided.

Next we will render the scene using the reflection shader but use an inverted clip plane so we are rendering everything underneath the water to create a refraction. This is all rendered to a render to texture so we can then apply it to the water quad using projective texturing based on the view point of the camera. We also perturb the refraction texture sampling by the water normal map to give us the ripple effect.

As well when we tile the normal map over the water quad we do it two separate times using different texture coordinates. For example we may tile it ten times over the water and then tile it again but just five times. We then combine the two separately tiled normal map results to give an animated look to the ripples instead of just a single rotating texture.

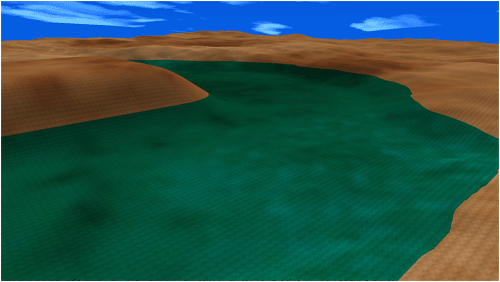

And finally we add a tint color to the refraction so that it looks like colored water instead of purely clear water with ripples. The following image is what the water refraction ends up looking like:

Note that a lot of engines will stop at that point. It is very expensive to render the scene to texture since we basically are rendering the scene twice. This cuts the fps in half whenever water needs to be drawn! There aren't really a lot of techniques other than to not render to texture when the water isn't visible that can speed this up unfortunately.

However we are going to proceed to make the effect look better. We will now render the scene yet again using the reflection shader but using a clip plane that renders everything above the water to give us a reflection of our scene. We render the reflection to a render to texture object and then project it onto the water quad from the view point of the camera. We also perturb the sampling of the render to texture by the water normal map. Rendering just the reflection looks like the following:

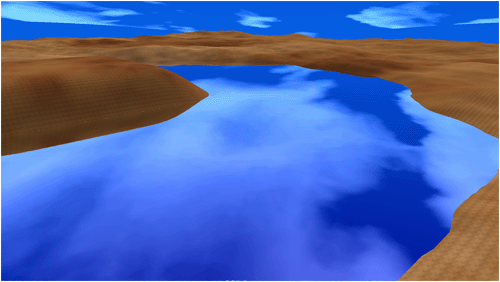

With the refraction, reflection, and the regular 3D scene we have now ended up drawing the scene three times per frame. This cuts your fps down to one third of the original speed. Some optimizations are that you can render a reflection twice a second instead of every frame, but it depends on the maximum speed that you will ever move at over the water. Some engines also use just a single texture of a sky that never changes. There are different things you can do but it depends on how important the reflection is to the scene.

With both the refraction and the reflection rendered to textures we can now combine them. One of the nice ways to combine the two textures is to use what is known as the Fresnel factor. This is the effect that as you get closer to the water it becomes more transparent (refraction is rendered more), and as you get further away the reflection becomes stronger and it is no longer as easy to see into the water (reflection is rendered more). In this tutorial I have created a simple fresnel factor that is based only on height. So the higher up you are the water is more reflective, and the closer you get to the water it becomes more refractive. Some engines will use a far more sophisticated frensel calculation and take into account the distance from the water, the depth of the water at each pixel, and so forth. It just depends how realistic you want to make the effect look.

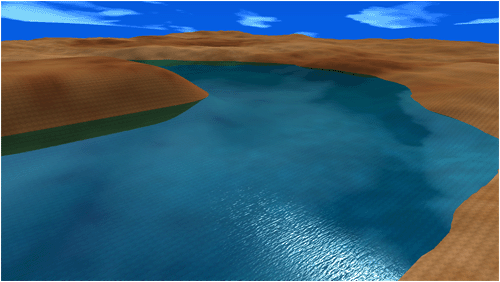

The combined result with the fresnel factor looks like the following:

As you can see the reflection added a lot of color to the result as well as the reflected clouds and pieces of the terrain.

The final addition to the water effect is adding specular reflection for where the directional sun light reflects off the water. We will calculate the specular against the dual tiled water normal map so that the specular comes off just the animated water ripples. Doing so gives us the final resulting scene:

Once again this is a fairly expensive effect, you may want to just stop at the refraction point. But if you can spare the extra cycles then the full effect is nice.

To begin the code section we will start by looking at the modified CameraClass.


Cameraclass.h

The CameraClass has been modified so that it can now generate reflection view matrices.

////////////////////////////////////////////////////////////////////////////////
// Filename: cameraclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _CAMERACLASS_H_
#define _CAMERACLASS_H_


//////////////
// INCLUDES //
//////////////
#include <d3dx10math.h>


////////////////////////////////////////////////////////////////////////////////
// Class name: CameraClass
////////////////////////////////////////////////////////////////////////////////
class CameraClass
{
public:
	CameraClass();
	CameraClass(const CameraClass&);
	~CameraClass();

	void SetPosition(float, float, float);
	void SetRotation(float, float, float);

	D3DXVECTOR3 GetPosition();
	D3DXVECTOR3 GetRotation();

	void Render();
	void GetViewMatrix(D3DXMATRIX&);

	void GenerateBaseViewMatrix();
	void GetBaseViewMatrix(D3DXMATRIX&);

We have added functions to generate and retrieve the reflection view matrix.

	void RenderReflection(float);
	void GetReflectionViewMatrix(D3DXMATRIX&);

private:
	float m_positionX, m_positionY, m_positionZ;
	float m_rotationX, m_rotationY, m_rotationZ;

There is also an additional matrix for the reflection view.

	D3DXMATRIX m_viewMatrix, m_baseViewMatrix, m_reflectionViewMatrix;
};

#endif

Cameraclass.cpp

////////////////////////////////////////////////////////////////////////////////
// Filename: cameraclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "cameraclass.h"


CameraClass::CameraClass()
{
	m_positionX = 0.0f;
	m_positionY = 0.0f;
	m_positionZ = 0.0f;

	m_rotationX = 0.0f;
	m_rotationY = 0.0f;
	m_rotationZ = 0.0f;
}


CameraClass::CameraClass(const CameraClass& other)
{
}


CameraClass::~CameraClass()
{
}


void CameraClass::SetPosition(float x, float y, float z)
{
	m_positionX = x;
	m_positionY = y;
	m_positionZ = z;
	return;
}


void CameraClass::SetRotation(float x, float y, float z)
{
	m_rotationX = x;
	m_rotationY = y;
	m_rotationZ = z;
	return;
}


D3DXVECTOR3 CameraClass::GetPosition()
{
	return D3DXVECTOR3(m_positionX, m_positionY, m_positionZ);
}


D3DXVECTOR3 CameraClass::GetRotation()
{
	return D3DXVECTOR3(m_rotationX, m_rotationY, m_rotationZ);
}


void CameraClass::Render()
{
	D3DXVECTOR3 up, position, lookAt;
	float yaw, pitch, roll;
	D3DXMATRIX rotationMatrix;


	// Setup the vector that points upwards.
	up.x = 0.0f;
	up.y = 1.0f;
	up.z = 0.0f;

	// Setup the position of the camera in the world.
	position.x = m_positionX;
	position.y = m_positionY;
	position.z = m_positionZ;

	// Setup where the camera is looking by default.
	lookAt.x = 0.0f;
	lookAt.y = 0.0f;
	lookAt.z = 1.0f;

	// Set the yaw (Y axis), pitch (X axis), and roll (Z axis) rotations in radians.
	pitch = m_rotationX * 0.0174532925f;
	yaw   = m_rotationY * 0.0174532925f;
	roll  = m_rotationZ * 0.0174532925f;

	// Create the rotation matrix from the yaw, pitch, and roll values.
	D3DXMatrixRotationYawPitchRoll(&rotationMatrix, yaw, pitch, roll);

	// Transform the lookAt and up vector by the rotation matrix so the view is correctly rotated at the origin.
	D3DXVec3TransformCoord(&lookAt, &lookAt, &rotationMatrix);
	D3DXVec3TransformCoord(&up, &up, &rotationMatrix);

	// Translate the rotated camera position to the location of the viewer.
	lookAt = position + lookAt;

	// Finally create the view matrix from the three updated vectors.
	D3DXMatrixLookAtLH(&m_viewMatrix, &position, &lookAt, &up);

	return;
}


void CameraClass::GetViewMatrix(D3DXMATRIX& viewMatrix)
{
	viewMatrix = m_viewMatrix;
	return;
}


void CameraClass::GenerateBaseViewMatrix()
{
	D3DXVECTOR3 up, position, lookAt;
	float yaw, pitch, roll;
	D3DXMATRIX rotationMatrix;


	// Setup the vector that points upwards.
	up.x = 0.0f;
	up.y = 1.0f;
	up.z = 0.0f;

	// Setup the position of the camera in the world.
	position.x = m_positionX;
	position.y = m_positionY;
	position.z = m_positionZ;

	// Setup where the camera is looking by default.
	lookAt.x = 0.0f;
	lookAt.y = 0.0f;
	lookAt.z = 1.0f;

	// Set the yaw (Y axis), pitch (X axis), and roll (Z axis) rotations in radians.
	pitch = m_rotationX * 0.0174532925f;
	yaw   = m_rotationY * 0.0174532925f;
	roll  = m_rotationZ * 0.0174532925f;

	// Create the rotation matrix from the yaw, pitch, and roll values.
	D3DXMatrixRotationYawPitchRoll(&rotationMatrix, yaw, pitch, roll);

	// Transform the lookAt and up vector by the rotation matrix so the view is correctly rotated at the origin.
	D3DXVec3TransformCoord(&lookAt, &lookAt, &rotationMatrix);
	D3DXVec3TransformCoord(&up, &up, &rotationMatrix);

	// Translate the rotated camera position to the location of the viewer.
	lookAt = position + lookAt;

	// Finally create the view matrix from the three updated vectors.
	D3DXMatrixLookAtLH(&m_baseViewMatrix, &position, &lookAt, &up);

	return;
}


void CameraClass::GetBaseViewMatrix(D3DXMATRIX& viewMatrix)
{
	viewMatrix = m_baseViewMatrix;
	return;
}

This is the new function that is used for generating the reflection view matrix. The only difference between the regular view matrix and the reflection one is that we invert the Y position based on the height of the plane, and we also invert the pitch.

void CameraClass::RenderReflection(float height)
{
	D3DXVECTOR3 up, position, lookAt;
	float yaw, pitch, roll;
	D3DXMATRIX rotationMatrix;


	// Setup the vector that points upwards.
	up.x = 0.0f;
	up.y = 1.0f;
	up.z = 0.0f;

	// Setup the position of the camera in the world.  For planar reflection invert the Y position of the camera.
	position.x = m_positionX;
	position.y = -m_positionY + (height * 2.0f);
	position.z = m_positionZ;

	// Setup where the camera is looking by default.
	lookAt.x = 0.0f;
	lookAt.y = 0.0f;
	lookAt.z = 1.0f;

	// Set the yaw (Y axis), pitch (X axis), and roll (Z axis) rotations in radians.  Invert the X rotation for reflection.
	pitch = -m_rotationX * 0.0174532925f;
	yaw   = m_rotationY * 0.0174532925f;
	roll  = m_rotationZ * 0.0174532925f;

	// Create the rotation matrix from the yaw, pitch, and roll values.
	D3DXMatrixRotationYawPitchRoll(&rotationMatrix, yaw, pitch, roll);

	// Transform the lookAt and up vector by the rotation matrix so the view is correctly rotated at the origin.
	D3DXVec3TransformCoord(&lookAt, &lookAt, &rotationMatrix);
	D3DXVec3TransformCoord(&up, &up, &rotationMatrix);

	// Translate the rotated camera position to the location of the viewer.
	lookAt = position + lookAt;

	// Finally create the reflection view matrix from the three updated vectors.
	D3DXMatrixLookAtLH(&m_reflectionViewMatrix, &position, &lookAt, &up);

	return;
}

There is also a new function to retrieve the reflection view matrix.

void CameraClass::GetReflectionViewMatrix(D3DXMATRIX& viewMatrix)
{
	viewMatrix = m_reflectionViewMatrix;
	return;
}

Reflection.vs

The reflection HLSL shaders are just the terrain HLSL shaders with a clip plane added, otherwise they are identical.

////////////////////////////////////////////////////////////////////////////////
// Filename: reflection.vs
////////////////////////////////////////////////////////////////////////////////


/////////////
// GLOBALS //
/////////////
cbuffer MatrixBuffer
{
    matrix worldMatrix;
    matrix viewMatrix;
    matrix projectionMatrix;
};

cbuffer ClipPlaneBuffer
{
    float4 clipPlane;
};


//////////////
// TYPEDEFS //
//////////////
struct VertexInputType
{
    float4 position : POSITION;
    float2 tex : TEXCOORD0;
    float3 normal : NORMAL;
    float3 tangent : TANGENT;
    float3 binormal : BINORMAL;
    float4 color : COLOR;
};

struct PixelInputType
{
    float4 position : SV_POSITION;
    float2 tex : TEXCOORD0;
    float3 normal : NORMAL;
    float3 tangent : TANGENT;
    float3 binormal : BINORMAL;
    float4 color : COLOR;
    float clip : SV_ClipDistance0;
};


////////////////////////////////////////////////////////////////////////////////
// Vertex Shader
////////////////////////////////////////////////////////////////////////////////
PixelInputType ReflectionVertexShader(VertexInputType input)
{
    PixelInputType output;


    // Change the position vector to be 4 units for proper matrix calculations.
    input.position.w = 1.0f;

    // Calculate the position of the vertex against the world, view, and projection matrices.
    output.position = mul(input.position, worldMatrix);
    output.position = mul(output.position, viewMatrix);
    output.position = mul(output.position, projectionMatrix);

    // Store the texture coordinates for the pixel shader.
    output.tex = input.tex;

    // Calculate the normal vector against the world matrix only and then normalize the final value.
    output.normal = mul(input.normal, (float3x3)worldMatrix);
    output.normal = normalize(output.normal);

    // Calculate the tangent vector against the world matrix only and then normalize the final value.
    output.tangent = mul(input.tangent, (float3x3)worldMatrix);
    output.tangent = normalize(output.tangent);

    // Calculate the binormal vector against the world matrix only and then normalize the final value.
    output.binormal = mul(input.binormal, (float3x3)worldMatrix);
    output.binormal = normalize(output.binormal);

    // Send the color map color into the pixel shader.
    output.color = input.color;

    // Set the clipping plane.
    output.clip = dot(mul(input.position, worldMatrix), clipPlane);

    return output;
}

Reflection.ps

////////////////////////////////////////////////////////////////////////////////
// Filename: reflection.ps
////////////////////////////////////////////////////////////////////////////////


//////////////
// TEXTURES //
//////////////
Texture2D colorTexture : register(t0);
Texture2D normalTexture : register(t1);


//////////////
// SAMPLERS //
//////////////
SamplerState SampleType;


//////////////////////
// CONSTANT BUFFERS //
//////////////////////
cbuffer LightBuffer
{
    float4 lightDiffuseColor;
    float3 lightDirection;
    float colorTextureBrightness;
};


//////////////
// TYPEDEFS //
//////////////
struct PixelInputType
{
    float4 position : SV_POSITION;
    float2 tex : TEXCOORD0;
    float3 normal : NORMAL;
    float3 tangent : TANGENT;
    float3 binormal : BINORMAL;
    float4 color : COLOR;
    float clip : SV_ClipDistance0;
};


////////////////////////////////////////////////////////////////////////////////
// Pixel Shader
////////////////////////////////////////////////////////////////////////////////
float4 ReflectionPixelShader(PixelInputType input) : SV_TARGET
{
    float3 lightDir;
    float4 textureColor;
    float4 bumpMap;
    float3 bumpNormal;
    float lightIntensity;
    float4 color;


    // Invert the light direction for calculations.
    lightDir = -lightDirection;

    // Sample the color texture.
    textureColor = colorTexture.Sample(SampleType, input.tex);

    // Combine the color map value into the texture color.
    textureColor = saturate(input.color * textureColor * colorTextureBrightness);

    // Calculate the bump map using the normal map.
    bumpMap = normalTexture.Sample(SampleType, input.tex);
    bumpMap = (bumpMap * 2.0f) - 1.0f;
    bumpNormal = input.normal + bumpMap.x * input.tangent + bumpMap.y * input.binormal;
    bumpNormal = normalize(bumpNormal);
    lightIntensity = saturate(dot(bumpNormal, lightDir));

    // Calculate the first bump mapped pixel color.
    color = saturate(lightDiffuseColor * lightIntensity);
    color = color * textureColor;

    return color;
}

Reflectionshaderclass.h

The ReflectionShaderClass is also the same as the TerrainShaderClass except that it has clip plane related settings.

////////////////////////////////////////////////////////////////////////////////
// Filename: reflectionshaderclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _REFLECTIONSHADERCLASS_H_
#define _REFLECTIONSHADERCLASS_H_


//////////////
// INCLUDES //
//////////////
#include <d3d11.h>
#include <d3dx10math.h>
#include <d3dx11async.h>
#include <fstream>
using namespace std;


////////////////////////////////////////////////////////////////////////////////
// Class name: ReflectionShaderClass
////////////////////////////////////////////////////////////////////////////////
class ReflectionShaderClass
{
private:
	struct MatrixBufferType
	{
		D3DXMATRIX world;
		D3DXMATRIX view;
		D3DXMATRIX projection;
	};

	struct ClipPlaneBufferType
	{
		D3DXVECTOR4 clipPlane;
	};

	struct LightBufferType
	{
		D3DXVECTOR4 lightDiffuseColor;
		D3DXVECTOR3 lightDirection;
		float colorTextureBrightness;
	};

public:
	ReflectionShaderClass();
	ReflectionShaderClass(const ReflectionShaderClass&);
	~ReflectionShaderClass();

	bool Initialize(ID3D11Device*, HWND);
	void Shutdown();
	bool Render(ID3D11DeviceContext*, int, D3DXMATRIX, D3DXMATRIX, D3DXMATRIX, ID3D11ShaderResourceView*, ID3D11ShaderResourceView*, D3DXVECTOR4,
		    D3DXVECTOR3, float, D3DXVECTOR4);

private:
	bool InitializeShader(ID3D11Device*, HWND, WCHAR*, WCHAR*);
	void ShutdownShader();
	void OutputShaderErrorMessage(ID3D10Blob*, HWND, WCHAR*);

	bool SetShaderParameters(ID3D11DeviceContext*, D3DXMATRIX, D3DXMATRIX, D3DXMATRIX, ID3D11ShaderResourceView*, ID3D11ShaderResourceView*, D3DXVECTOR4,
				 D3DXVECTOR3, float, D3DXVECTOR4);
	void RenderShader(ID3D11DeviceContext*, int);

private:
	ID3D11VertexShader* m_vertexShader;
	ID3D11PixelShader* m_pixelShader;
	ID3D11InputLayout* m_layout;
	ID3D11SamplerState* m_sampleState;
	ID3D11Buffer* m_matrixBuffer;
	ID3D11Buffer* m_clipPlaneBuffer;
	ID3D11Buffer* m_lightBuffer;
};

#endif

Reflectionshaderclass.cpp

////////////////////////////////////////////////////////////////////////////////
// Filename: reflectionshaderclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "reflectionshaderclass.h"


ReflectionShaderClass::ReflectionShaderClass()
{
	m_vertexShader = 0;
	m_pixelShader = 0;
	m_layout = 0;
	m_sampleState = 0;
	m_matrixBuffer = 0;
	m_clipPlaneBuffer = 0;
	m_lightBuffer = 0;
}


ReflectionShaderClass::ReflectionShaderClass(const ReflectionShaderClass& other)
{
}


ReflectionShaderClass::~ReflectionShaderClass()
{
}


bool ReflectionShaderClass::Initialize(ID3D11Device* device, HWND hwnd)
{
	bool result;


	// Initialize the vertex and pixel shaders.
	result = InitializeShader(device, hwnd, L"../Engine/reflection.vs", L"../Engine/reflection.ps");
	if(!result)
	{
		return false;
	}

	return true;
}


void ReflectionShaderClass::Shutdown()
{
	// Shutdown the vertex and pixel shaders as well as the related objects.
	ShutdownShader();

	return;
}


bool ReflectionShaderClass::Render(ID3D11DeviceContext* deviceContext, int indexCount, D3DXMATRIX worldMatrix, D3DXMATRIX viewMatrix,
				   D3DXMATRIX projectionMatrix, ID3D11ShaderResourceView* colorTexture, ID3D11ShaderResourceView* normalTexture,
				   D3DXVECTOR4 lightDiffuseColor, D3DXVECTOR3 lightDirection, float colorTextureBrightness, D3DXVECTOR4 clipPlane)
{
	bool result;


	// Set the shader parameters that it will use for rendering.
	result = SetShaderParameters(deviceContext, worldMatrix, viewMatrix, projectionMatrix, colorTexture, normalTexture, lightDiffuseColor,
				     lightDirection, colorTextureBrightness, clipPlane);
	if(!result)
	{
		return false;
	}

	// Now render the prepared buffers with the shader.
	RenderShader(deviceContext, indexCount);

	return true;
}


bool ReflectionShaderClass::InitializeShader(ID3D11Device* device, HWND hwnd, WCHAR* vsFilename, WCHAR* psFilename)
{
	HRESULT result;
	ID3D10Blob* errorMessage;
	ID3D10Blob* vertexShaderBuffer;
	ID3D10Blob* pixelShaderBuffer;
	D3D11_INPUT_ELEMENT_DESC polygonLayout[6];
	unsigned int numElements;
	D3D11_SAMPLER_DESC samplerDesc;
	D3D11_BUFFER_DESC matrixBufferDesc;
	D3D11_BUFFER_DESC clipPlaneBufferDesc;
	D3D11_BUFFER_DESC lightBufferDesc;


	// Initialize the pointers this function will use to null.
	errorMessage = 0;
	vertexShaderBuffer = 0;
	pixelShaderBuffer = 0;

	// Compile the vertex shader code.
	result = D3DX11CompileFromFile(vsFilename, NULL, NULL, "ReflectionVertexShader", "vs_5_0", D3D10_SHADER_ENABLE_STRICTNESS, 0, NULL,
				       &vertexShaderBuffer, &errorMessage, NULL);
	if(FAILED(result))
	{
		// If the shader failed to compile it should have writen something to the error message.
		if(errorMessage)
		{
			OutputShaderErrorMessage(errorMessage, hwnd, vsFilename);
		}
		// If there was nothing in the error message then it simply could not find the shader file itself.
		else
		{
			MessageBox(hwnd, vsFilename, L"Missing Shader File", MB_OK);
		}

		return false;
	}

	// Compile the pixel shader code.
	result = D3DX11CompileFromFile(psFilename, NULL, NULL, "ReflectionPixelShader", "ps_5_0", D3D10_SHADER_ENABLE_STRICTNESS, 0, NULL,
				       &pixelShaderBuffer, &errorMessage, NULL);
	if(FAILED(result))
	{
		// If the shader failed to compile it should have writen something to the error message.
		if(errorMessage)
		{
			OutputShaderErrorMessage(errorMessage, hwnd, psFilename);
		}
		// If there was nothing in the error message then it simply could not find the file itself.
		else
		{
			MessageBox(hwnd, psFilename, L"Missing Shader File", MB_OK);
		}

		return false;
	}

	// Create the vertex shader from the buffer.
	result = device->CreateVertexShader(vertexShaderBuffer->GetBufferPointer(), vertexShaderBuffer->GetBufferSize(), NULL, &m_vertexShader);
	if(FAILED(result))
	{
		return false;
	}

	// Create the pixel shader from the buffer.
	result = device->CreatePixelShader(pixelShaderBuffer->GetBufferPointer(), pixelShaderBuffer->GetBufferSize(), NULL, &m_pixelShader);
	if(FAILED(result))
	{
		return false;
	}

	// Create the vertex input layout description.
	polygonLayout[0].SemanticName = "POSITION";
	polygonLayout[0].SemanticIndex = 0;
	polygonLayout[0].Format = DXGI_FORMAT_R32G32B32_FLOAT;
	polygonLayout[0].InputSlot = 0;
	polygonLayout[0].AlignedByteOffset = 0;
	polygonLayout[0].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
	polygonLayout[0].InstanceDataStepRate = 0;

	polygonLayout[1].SemanticName = "TEXCOORD";
	polygonLayout[1].SemanticIndex = 0;
	polygonLayout[1].Format = DXGI_FORMAT_R32G32_FLOAT;
	polygonLayout[1].InputSlot = 0;
	polygonLayout[1].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
	polygonLayout[1].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
	polygonLayout[1].InstanceDataStepRate = 0;

	polygonLayout[2].SemanticName = "NORMAL";
	polygonLayout[2].SemanticIndex = 0;
	polygonLayout[2].Format = DXGI_FORMAT_R32G32B32_FLOAT;
	polygonLayout[2].InputSlot = 0;
	polygonLayout[2].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
	polygonLayout[2].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
	polygonLayout[2].InstanceDataStepRate = 0;

	polygonLayout[3].SemanticName = "TANGENT";
	polygonLayout[3].SemanticIndex = 0;
	polygonLayout[3].Format = DXGI_FORMAT_R32G32B32_FLOAT;
	polygonLayout[3].InputSlot = 0;
	polygonLayout[3].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
	polygonLayout[3].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
	polygonLayout[3].InstanceDataStepRate = 0;

	polygonLayout[4].SemanticName = "BINORMAL";
	polygonLayout[4].SemanticIndex = 0;
	polygonLayout[4].Format = DXGI_FORMAT_R32G32B32_FLOAT;
	polygonLayout[4].InputSlot = 0;
	polygonLayout[4].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
	polygonLayout[4].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
	polygonLayout[4].InstanceDataStepRate = 0;

	polygonLayout[5].SemanticName = "COLOR";
	polygonLayout[5].SemanticIndex = 0;
	polygonLayout[5].Format = DXGI_FORMAT_R32G32B32A32_FLOAT;
	polygonLayout[5].InputSlot = 0;
	polygonLayout[5].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
	polygonLayout[5].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
	polygonLayout[5].InstanceDataStepRate = 0;

	// Get a count of the elements in the layout.
	numElements = sizeof(polygonLayout) / sizeof(polygonLayout[0]);

	// Create the vertex input layout.
	result = device->CreateInputLayout(polygonLayout, numElements, vertexShaderBuffer->GetBufferPointer(), vertexShaderBuffer->GetBufferSize(),
					   &m_layout);
	if(FAILED(result))
	{
		return false;
	}

	// Release the vertex shader buffer and pixel shader buffer since they are no longer needed.
	vertexShaderBuffer->Release();
	vertexShaderBuffer = 0;

	pixelShaderBuffer->Release();
	pixelShaderBuffer = 0;

	// Create a texture sampler state description.
	samplerDesc.Filter = D3D11_FILTER_MIN_MAG_MIP_LINEAR;
	samplerDesc.AddressU = D3D11_TEXTURE_ADDRESS_CLAMP;
	samplerDesc.AddressV = D3D11_TEXTURE_ADDRESS_CLAMP;
	samplerDesc.AddressW = D3D11_TEXTURE_ADDRESS_CLAMP;
	samplerDesc.MipLODBias = 0.0f;
	samplerDesc.MaxAnisotropy = 1;
	samplerDesc.ComparisonFunc = D3D11_COMPARISON_ALWAYS;
	samplerDesc.BorderColor[0] = 0;
	samplerDesc.BorderColor[1] = 0;
	samplerDesc.BorderColor[2] = 0;
	samplerDesc.BorderColor[3] = 0;
	samplerDesc.MinLOD = 0;
	samplerDesc.MaxLOD = D3D11_FLOAT32_MAX;

	// Create the texture sampler state.
	result = device->CreateSamplerState(&samplerDesc, &m_sampleState);
	if(FAILED(result))
	{
		return false;
	}

	// Setup the description of the dynamic matrix constant buffer that is in the vertex shader.
	matrixBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
	matrixBufferDesc.ByteWidth = sizeof(MatrixBufferType);
	matrixBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
	matrixBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
	matrixBufferDesc.MiscFlags = 0;
	matrixBufferDesc.StructureByteStride = 0;

	// Create the constant buffer pointer so we can access the vertex shader constant buffer from within this class.
	result = device->CreateBuffer(&matrixBufferDesc, NULL, &m_matrixBuffer);
	if(FAILED(result))
	{
		return false;
	}

	// Setup the description of the clip plane dynamic constant buffer that is in the vertex shader.
	clipPlaneBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
	clipPlaneBufferDesc.ByteWidth = sizeof(ClipPlaneBufferType);
	clipPlaneBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
	clipPlaneBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
	clipPlaneBufferDesc.MiscFlags = 0;
	clipPlaneBufferDesc.StructureByteStride = 0;

	// Create the constant buffer pointer so we can access the vertex shader constant buffer from within this class.
	result = device->CreateBuffer(&clipPlaneBufferDesc, NULL, &m_clipPlaneBuffer);
	if(FAILED(result))
	{
		return false;
	}

	// Setup the description of the light dynamic constant buffer that is in the pixel shader.
	lightBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
	lightBufferDesc.ByteWidth = sizeof(LightBufferType);
	lightBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
	lightBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
	lightBufferDesc.MiscFlags = 0;
	lightBufferDesc.StructureByteStride = 0;

	// Create the constant buffer pointer so we can access the pixel shader constant buffer from within this class.
	result = device->CreateBuffer(&lightBufferDesc, NULL, &m_lightBuffer);
	if(FAILED(result))
	{
		return false;
	}

	return true;
}


void ReflectionShaderClass::ShutdownShader()
{
	// Release the light constant buffer.
	if(m_lightBuffer)
	{
		m_lightBuffer->Release();
		m_lightBuffer = 0;
	}

	// Release the clip plane constant buffer.
	if(m_clipPlaneBuffer)
	{
		m_clipPlaneBuffer->Release();
		m_clipPlaneBuffer = 0;
	}

	// Release the matrix constant buffer.
	if(m_matrixBuffer)
	{
		m_matrixBuffer->Release();
		m_matrixBuffer = 0;
	}

	// Release the sampler state.
	if(m_sampleState)
	{
		m_sampleState->Release();
		m_sampleState = 0;
	}

	// Release the layout.
	if(m_layout)
	{
		m_layout->Release();
		m_layout = 0;
	}

	// Release the pixel shader.
	if(m_pixelShader)
	{
		m_pixelShader->Release();
		m_pixelShader = 0;
	}

	// Release the vertex shader.
	if(m_vertexShader)
	{
		m_vertexShader->Release();
		m_vertexShader = 0;
	}

	return;
}


void ReflectionShaderClass::OutputShaderErrorMessage(ID3D10Blob* errorMessage, HWND hwnd, WCHAR* shaderFilename)
{
	char* compileErrors;
	unsigned long bufferSize, i;
	ofstream fout;


	// Get a pointer to the error message text buffer.
	compileErrors = (char*)(errorMessage->GetBufferPointer());

	// Get the length of the message.
	bufferSize = errorMessage->GetBufferSize();

	// Open a file to write the error message to.
	fout.open("shader-error.txt");

	// Write out the error message.
	for(i=0; i<bufferSize; i++)
	{
		fout << compileErrors[i];
	}

	// Close the file.
	fout.close();

	// Release the error message.
	errorMessage->Release();
	errorMessage = 0;

	// Pop a message up on the screen to notify the user to check the text file for compile errors.
	MessageBox(hwnd, L"Error compiling shader.  Check shader-error.txt for message.", shaderFilename, MB_OK);

	return;
}


bool ReflectionShaderClass::SetShaderParameters(ID3D11DeviceContext* deviceContext, D3DXMATRIX worldMatrix, D3DXMATRIX viewMatrix,
						D3DXMATRIX projectionMatrix, ID3D11ShaderResourceView* colorTexture,
						ID3D11ShaderResourceView* normalTexture, D3DXVECTOR4 lightDiffuseColor, D3DXVECTOR3 lightDirection,
						float colorTextureBrightness, D3DXVECTOR4 clipPlane)
{
	HRESULT result;
	D3D11_MAPPED_SUBRESOURCE mappedResource;
	unsigned int bufferNumber;
	MatrixBufferType* dataPtr;
	ClipPlaneBufferType* dataPtr1;
	LightBufferType* dataPtr2;


	// Transpose the matrices to prepare them for the shader.
	D3DXMatrixTranspose(&worldMatrix, &worldMatrix);
	D3DXMatrixTranspose(&viewMatrix, &viewMatrix);
	D3DXMatrixTranspose(&projectionMatrix, &projectionMatrix);

	// Lock the constant buffer so it can be written to.
	result = deviceContext->Map(m_matrixBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
	if(FAILED(result))
	{
		return false;
	}

	// Get a pointer to the data in the constant buffer.
	dataPtr = (MatrixBufferType*)mappedResource.pData;

	// Copy the matrices into the constant buffer.
	dataPtr->world = worldMatrix;
	dataPtr->view = viewMatrix;
	dataPtr->projection = projectionMatrix;

	// Unlock the constant buffer.
	deviceContext->Unmap(m_matrixBuffer, 0);

	// Set the position of the constant buffer in the vertex shader.
	bufferNumber = 0;

	// Now set the constant buffer in the vertex shader with the updated values.
	deviceContext->VSSetConstantBuffers(bufferNumber, 1, &m_matrixBuffer);

	// Lock the clip plane constant buffer so it can be written to.
	result = deviceContext->Map(m_clipPlaneBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
	if(FAILED(result))
	{
		return false;
	}

	// Get a pointer to the data in the clip plane constant buffer.
	dataPtr1 = (ClipPlaneBufferType*)mappedResource.pData;

	// Copy the clip plane into the clip plane constant buffer.
	dataPtr1->clipPlane = clipPlane;

	// Unlock the buffer.
	deviceContext->Unmap(m_clipPlaneBuffer, 0);

	// Set the position of the clip plane constant buffer in the vertex shader.
	bufferNumber = 1;

	// Now set the clip plane constant buffer in the vertex shader with the updated values.
	deviceContext->VSSetConstantBuffers(bufferNumber, 1, &m_clipPlaneBuffer);

	// Lock the light constant buffer so it can be written to.
	result = deviceContext->Map(m_lightBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
	if(FAILED(result))
	{
		return false;
	}

	// Get a pointer to the data in the constant buffer.
	dataPtr2 = (LightBufferType*)mappedResource.pData;

	// Copy the lighting variables into the constant buffer.
	dataPtr2->lightDiffuseColor = lightDiffuseColor;
	dataPtr2->lightDirection = lightDirection;
	dataPtr2->colorTextureBrightness = colorTextureBrightness;

	// Unlock the constant buffer.
	deviceContext->Unmap(m_lightBuffer, 0);

	// Set the position of the light constant buffer in the pixel shader.
	bufferNumber = 0;

	// Finally set the light constant buffer in the pixel shader with the updated values.
	deviceContext->PSSetConstantBuffers(bufferNumber, 1, &m_lightBuffer);

	// Set the texture resources in the pixel shader.
	deviceContext->PSSetShaderResources(0, 1, &colorTexture);
	deviceContext->PSSetShaderResources(1, 1, &normalTexture);

	return true;
}


void ReflectionShaderClass::RenderShader(ID3D11DeviceContext* deviceContext, int indexCount)
{
	// Set the vertex input layout.
	deviceContext->IASetInputLayout(m_layout);

	// Set the vertex and pixel shaders that will be used to render this triangle.
	deviceContext->VSSetShader(m_vertexShader, NULL, 0);
	deviceContext->PSSetShader(m_pixelShader, NULL, 0);

	// Set the sampler state in the pixel shader.
	deviceContext->PSSetSamplers(0, 1, &m_sampleState);

	// Render the triangle.
	deviceContext->DrawIndexed(indexCount, 0, 0);

	return;
}

Waterclass.h

WaterClass is a new class that is used to hold the geometry for the water quad and the shader related settings and files.

////////////////////////////////////////////////////////////////////////////////
// Filename: waterclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _WATERCLASS_H_
#define _WATERCLASS_H_


//////////////
// INCLUDES //
//////////////
#include <d3d11.h>
#include <d3dx10math.h>


///////////////////////
// MY CLASS INCLUDES //
///////////////////////
#include "textureclass.h"


////////////////////////////////////////////////////////////////////////////////
// Class name: WaterClass
////////////////////////////////////////////////////////////////////////////////
class WaterClass
{
private:
	struct VertexType
	{
		D3DXVECTOR3 position;
		D3DXVECTOR2 texture;
	};

public:
	WaterClass();
	WaterClass(const WaterClass&);
	~WaterClass();

	bool Initialize(ID3D11Device*, WCHAR*, float, float);
	void Shutdown();
	void Frame();
	void Render(ID3D11DeviceContext*);

	int GetIndexCount();
	ID3D11ShaderResourceView* GetTexture();

	float GetWaterHeight();
	D3DXVECTOR2 GetNormalMapTiling();
	float GetWaterTranslation();
	float GetReflectRefractScale();
	D3DXVECTOR4 GetRefractionTint();
	float GetSpecularShininess();

private:
	bool InitializeBuffers(ID3D11Device*, float);
	void ShutdownBuffers();
	void RenderBuffers(ID3D11DeviceContext*);

	bool LoadTexture(ID3D11Device*, WCHAR*);
	void ReleaseTexture();

private:
	float m_waterHeight;
	ID3D11Buffer *m_vertexBuffer, *m_indexBuffer;
	int m_vertexCount, m_indexCount;
	TextureClass* m_Texture;
	D3DXVECTOR2 m_normalMapTiling;
	float m_waterTranslation;
	float m_reflectRefractScale;
	D3DXVECTOR4 m_refractionTint;
	float m_specularShininess;
};

#endif

Waterclass.cpp

////////////////////////////////////////////////////////////////////////////////
// Filename: waterclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "waterclass.h"


WaterClass::WaterClass()
{
	m_vertexBuffer = 0;
	m_indexBuffer = 0;
	m_Texture = 0;
}


WaterClass::WaterClass(const WaterClass& other)
{
}


WaterClass::~WaterClass()
{
}

The Initialize function takes as inputs the DX11 device, the file name of the water normal map, the height of the water, and the radius of the water.

bool WaterClass::Initialize(ID3D11Device* device, WCHAR* textureFilename, float waterHeight, float waterRadius)
{
	bool result;

First we store the water height. After that we create the geometry for the water quad and then load the normal map for the water.

	// Store the water height.
	m_waterHeight = waterHeight;

	// Initialize the vertex and index buffer that hold the geometry for the triangle.
	result = InitializeBuffers(device, waterRadius);
	if(!result)
	{
		return false;
	}

	// Load the texture for this model.
	result = LoadTexture(device, textureFilename);
	if(!result)
	{
		return false;
	}

Next we set all the shader related settings. These should actually be input parameters but I have placed them here for now so that they are straight forward for editing as you learn how each of them affects the shader effect.

	// Set the tiling for the water normal maps.
	m_normalMapTiling.x = 0.01f;  // Tile ten times over the quad.
	m_normalMapTiling.y = 0.02f;  // Tile five times over the quad.

	// Initialize the water translation to zero.
	m_waterTranslation = 0.0f;

	// Set the scaling value for the water normal map.
	m_reflectRefractScale = 0.03f;

	// Set the tint of the refraction.
	m_refractionTint = D3DXVECTOR4(0.0f, 0.8f, 1.0f, 1.0f);

	// Set the specular shininess.
	m_specularShininess = 200.0f;

	return true;
}


void WaterClass::Shutdown()
{
	// Release the model texture.
	ReleaseTexture();

	// Release the vertex and index buffers.
	ShutdownBuffers();

	return;
}

Each frame we will animate the rotation of the water normal map to simulate moving water ripples.

void WaterClass::Frame()
{
	// Update the position of the water to simulate motion.
	m_waterTranslation += 0.003f;
	if(m_waterTranslation > 1.0f)
	{
		m_waterTranslation -= 1.0f;
	}

	return;
}


void WaterClass::Render(ID3D11DeviceContext* deviceContext)
{
	// Put the vertex and index buffers on the graphics pipeline to prepare them for drawing.
	RenderBuffers(deviceContext);

	return;
}


int WaterClass::GetIndexCount()
{
	return m_indexCount;
}


ID3D11ShaderResourceView* WaterClass::GetTexture()
{
	return m_Texture->GetTexture();
}


float WaterClass::GetWaterHeight()
{
	return m_waterHeight;
}


D3DXVECTOR2 WaterClass::GetNormalMapTiling()
{
	return m_normalMapTiling;
}


float WaterClass::GetWaterTranslation()
{
	return m_waterTranslation;
}


float WaterClass::GetReflectRefractScale()
{
	return m_reflectRefractScale;
}


D3DXVECTOR4 WaterClass::GetRefractionTint()
{
	return m_refractionTint;
}


float WaterClass::GetSpecularShininess()
{
	return m_specularShininess;
}


bool WaterClass::InitializeBuffers(ID3D11Device* device, float waterRadius)
{
	VertexType* vertices;
	unsigned long* indices;
	D3D11_BUFFER_DESC vertexBufferDesc, indexBufferDesc;
	D3D11_SUBRESOURCE_DATA vertexData, indexData;
	HRESULT result;


	// Set the number of vertices in the vertex array.
	m_vertexCount = 6;

	// Set the number of indices in the index array.
	m_indexCount = 6;

	// Create the vertex array.
	vertices = new VertexType[m_vertexCount];
	if(!vertices)
	{
		return false;
	}

	// Create the index array.
	indices = new unsigned long[m_indexCount];
	if(!indices)
	{
		return false;
	}

We manually create a quad here. It doesn't need to be a high poly object since we are going to tile the water normal map over the surface of the quad.

	// Load the vertex array with data.
	vertices[0].position = D3DXVECTOR3(-waterRadius, 0.0f, waterRadius);  // Top left.
	vertices[0].texture = D3DXVECTOR2(0.0f, 0.0f);

	vertices[1].position = D3DXVECTOR3(waterRadius, 0.0f, waterRadius);  // Top right.
	vertices[1].texture = D3DXVECTOR2(1.0f, 0.0f);

	vertices[2].position = D3DXVECTOR3(-waterRadius, 0.0f, -waterRadius);  // Bottom left.
	vertices[2].texture = D3DXVECTOR2(0.0f, 1.0f);

	vertices[3].position = D3DXVECTOR3(-waterRadius, 0.0f, -waterRadius);  // Bottom left.
	vertices[3].texture = D3DXVECTOR2(0.0f, 1.0f);

	vertices[4].position = D3DXVECTOR3(waterRadius, 0.0f, waterRadius);  // Top right.
	vertices[4].texture = D3DXVECTOR2(1.0f, 0.0f);

	vertices[5].position = D3DXVECTOR3(waterRadius, 0.0f, -waterRadius);  // Bottom right.
	vertices[5].texture = D3DXVECTOR2(1.0f, 1.0f);

	// Load the index array with data.
	indices[0] = 0;
	indices[1] = 1;
	indices[2] = 2;
	indices[3] = 3;
	indices[4] = 4;
	indices[5] = 5;

	// Set up the description of the vertex buffer.
	vertexBufferDesc.Usage = D3D11_USAGE_DEFAULT;
	vertexBufferDesc.ByteWidth = sizeof(VertexType) * m_vertexCount;
	vertexBufferDesc.BindFlags = D3D11_BIND_VERTEX_BUFFER;
	vertexBufferDesc.CPUAccessFlags = 0;
	vertexBufferDesc.MiscFlags = 0;
	vertexBufferDesc.StructureByteStride = 0;

	// Give the subresource structure a pointer to the vertex data.
	vertexData.pSysMem = vertices;
	vertexData.SysMemPitch = 0;
	vertexData.SysMemSlicePitch = 0;

	// Now finally create the vertex buffer.
	result = device->CreateBuffer(&vertexBufferDesc, &vertexData, &m_vertexBuffer);
	if(FAILED(result))
	{
		return false;
	}

	// Set up the description of the index buffer.
	indexBufferDesc.Usage = D3D11_USAGE_DEFAULT;
	indexBufferDesc.ByteWidth = sizeof(unsigned long) * m_indexCount;
	indexBufferDesc.BindFlags = D3D11_BIND_INDEX_BUFFER;
	indexBufferDesc.CPUAccessFlags = 0;
	indexBufferDesc.MiscFlags = 0;
	indexBufferDesc.StructureByteStride = 0;

	// Give the subresource structure a pointer to the index data.
	indexData.pSysMem = indices;
	indexData.SysMemPitch = 0;
	indexData.SysMemSlicePitch = 0;

	// Create the index buffer.
	result = device->CreateBuffer(&indexBufferDesc, &indexData, &m_indexBuffer);
	if(FAILED(result))
	{
		return false;
	}

	// Release the arrays now that the vertex and index buffers have been created and loaded.
	delete [] vertices;
	vertices = 0;

	delete [] indices;
	indices = 0;

	return true;
}


void WaterClass::ShutdownBuffers()
{
	// Release the index buffer.
	if(m_indexBuffer)
	{
		m_indexBuffer->Release();
		m_indexBuffer = 0;
	}

	// Release the vertex buffer.
	if(m_vertexBuffer)
	{
		m_vertexBuffer->Release();
		m_vertexBuffer = 0;
	}

	return;
}


void WaterClass::RenderBuffers(ID3D11DeviceContext* deviceContext)
{
	unsigned int stride;
	unsigned int offset;


	// Set vertex buffer stride and offset.
	stride = sizeof(VertexType);
	offset = 0;

	// Set the vertex buffer to active in the input assembler so it can be rendered.
	deviceContext->IASetVertexBuffers(0, 1, &m_vertexBuffer, &stride, &offset);

	// Set the index buffer to active in the input assembler so it can be rendered.
	deviceContext->IASetIndexBuffer(m_indexBuffer, DXGI_FORMAT_R32_UINT, 0);

	// Set the type of primitive that should be rendered from this vertex buffer, in this case triangles.
	deviceContext->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);

	return;
}

The texture that is loaded here is the normal map for the water.

bool WaterClass::LoadTexture(ID3D11Device* device, WCHAR* filename)
{
	bool result;


	// Create the texture object.
	m_Texture = new TextureClass;
	if(!m_Texture)
	{
		return false;
	}

	// Initialize the texture object.
	result = m_Texture->Initialize(device, filename);
	if(!result)
	{
		return false;
	}

	return true;
}


void WaterClass::ReleaseTexture()
{
	// Release the texture object.
	if(m_Texture)
	{
		m_Texture->Shutdown();
		delete m_Texture;
		m_Texture = 0;
	}

	return;
}

Water.vs

The HLSL water shaders here are very similar to the one in the DirectX tutorials section. All we have done is add some additional effects.

////////////////////////////////////////////////////////////////////////////////
// Filename: water.vs
////////////////////////////////////////////////////////////////////////////////


/////////////
// GLOBALS //
/////////////
cbuffer MatrixBuffer
{
    matrix worldMatrix;
    matrix viewMatrix;
    matrix projectionMatrix;
    matrix reflectionMatrix;
};

cbuffer CamNormBuffer
{
    float3 cameraPosition;
    float padding1;
    float2 normalMapTiling;
    float2 padding2;
};


//////////////
// TYPEDEFS //
//////////////
struct VertexInputType
{
    float4 position : POSITION;
    float2 tex : TEXCOORD0;
};

struct PixelInputType
{
    float4 position : SV_POSITION;
    float4 reflectionPosition : TEXCOORD0;
    float4 refractionPosition : TEXCOORD1;
    float3 viewDirection : TEXCOORD2;
    float2 tex1 : TEXCOORD3;
    float2 tex2 : TEXCOORD4;
};


////////////////////////////////////////////////////////////////////////////////
// Vertex Shader
////////////////////////////////////////////////////////////////////////////////
PixelInputType WaterVertexShader(VertexInputType input)
{
    PixelInputType output;
    matrix reflectProjectWorld;
    matrix viewProjectWorld;
    float4 worldPosition;

Calculate the vertex position as usual.

    // Change the position vector to be 4 units for proper matrix calculations.
    input.position.w = 1.0f;

    // Calculate the position of the vertex against the world, view, and projection matrices.
    output.position = mul(input.position, worldMatrix);
    output.position = mul(output.position, viewMatrix);
    output.position = mul(output.position, projectionMatrix);

Calculate the refraction and reflection view matrices the same as before also.

    // Create the reflection projection world matrix.
    reflectProjectWorld = mul(reflectionMatrix, projectionMatrix);
    reflectProjectWorld = mul(worldMatrix, reflectProjectWorld);

    // Calculate the input position against the reflectProjectWorld matrix.
    output.reflectionPosition = mul(input.position, reflectProjectWorld);

    // Create the view projection world matrix for refraction.
    viewProjectWorld = mul(viewMatrix, projectionMatrix);
    viewProjectWorld = mul(worldMatrix, viewProjectWorld);

    // Calculate the input position against the viewProjectWorld matrix.
    output.refractionPosition = mul(input.position, viewProjectWorld);

Calculate the camera's view direction for fresnel and specular calculations.

    // Calculate the position of the vertex in the world.
    worldPosition = mul(input.position, worldMatrix);

    // Determine the viewing direction based on the position of the camera and the position of the vertex in the world.
    output.viewDirection = cameraPosition.xyz - worldPosition.xyz;

    // Normalize the viewing direction vector.
    output.viewDirection = normalize(output.viewDirection);

Calculate two different tiling texture coordinates for the water normal map.

    // Create two different texture sample coordinates for tiling the water normal map over the water quad multiple times.
    output.tex1 = input.tex / normalMapTiling.x;
    output.tex2 = input.tex / normalMapTiling.y;

    return output;
}

Water.ps

////////////////////////////////////////////////////////////////////////////////
// Filename: water.ps
////////////////////////////////////////////////////////////////////////////////


/////////////
// GLOBALS //
/////////////
SamplerState SampleType;
Texture2D refractionTexture : register(t0);
Texture2D reflectionTexture : register(t1);
Texture2D normalTexture : register(t2);

cbuffer WaterBuffer
{
    float4 refractionTint;
    float3 lightDirection;
    float waterTranslation;
    float reflectRefractScale;
    float specularShininess;
    float2 padding;
};


//////////////
// TYPEDEFS //
//////////////
struct PixelInputType
{
    float4 position : SV_POSITION;
    float4 reflectionPosition : TEXCOORD0;
    float4 refractionPosition : TEXCOORD1;
    float3 viewDirection : TEXCOORD2;
    float2 tex1 : TEXCOORD3;
    float2 tex2 : TEXCOORD4;
};


////////////////////////////////////////////////////////////////////////////////
// Pixel Shader
////////////////////////////////////////////////////////////////////////////////
float4 WaterPixelShader(PixelInputType input) : SV_TARGET
{
    float4 normalMap1;
    float4 normalMap2;
    float3 normal1;
    float3 normal2;
    float3 normal;
    float2 refractTexCoord;
    float2 reflectTexCoord;
    float4 reflectionColor;
    float4 refractionColor;
    float3 heightView;
    float r;
    float fresnelFactor;
    float4 color;
    float3 reflection;
    float specular;

Translate the two texture coordinates by the water translation amount.

    // Move the position the water normal is sampled from to simulate moving water.
    input.tex1.y += waterTranslation;
    input.tex2.y += waterTranslation;

Sample the water normal map two times using the two different texture sampling coordinates.

    // Sample the normal from the normal map texture using the two different tiled and translated coordinates.
    normalMap1 = normalTexture.Sample(SampleType, input.tex1);
    normalMap2 = normalTexture.Sample(SampleType, input.tex2);

    // Expand the range of the normal from (0,1) to (-1,+1).
    normal1 = (normalMap1.rgb * 2.0f) - 1.0f;
    normal2 = (normalMap2.rgb * 2.0f) - 1.0f;

Now combine the two normal map results to get an animated water ripple effect instead of just a single rotated normal map ripple.

    // Combine the normals to add the normal maps together.
    normal = normalize(normal1 + normal2);

Calculate the sampling coordinates for the refraction and reflection and then sample the textures as we did previously.

    // Calculate the projected refraction texture coordinates.
    refractTexCoord.x = input.refractionPosition.x / input.refractionPosition.w / 2.0f + 0.5f;
    refractTexCoord.y = -input.refractionPosition.y / input.refractionPosition.w / 2.0f + 0.5f;

    // Calculate the projected reflection texture coordinates.
    reflectTexCoord.x = input.reflectionPosition.x / input.reflectionPosition.w / 2.0f + 0.5f;
    reflectTexCoord.y = -input.reflectionPosition.y / input.reflectionPosition.w / 2.0f + 0.5f;

    // Re-position the texture coordinate sampling position by the scaled normal map value to simulate the rippling wave effect.
    reflectTexCoord = reflectTexCoord + (normal.xy * reflectRefractScale);
    refractTexCoord = refractTexCoord + (normal.xy * reflectRefractScale);

    // Sample the texture pixels from the textures using the updated texture coordinates.
    reflectionColor = reflectionTexture.Sample(SampleType, reflectTexCoord);
    refractionColor = refractionTexture.Sample(SampleType, refractTexCoord);

Add a water color tint to the refraction.

    // Combine the tint with the refraction color.
    refractionColor = saturate(refractionColor * refractionTint);

Create just a height based vector for the fresnel calculation.

    // Get a modified viewing direction of the camera that only takes into account height.
    heightView.x = input.viewDirection.y;
    heightView.y = input.viewDirection.y;
    heightView.z = input.viewDirection.y;

Calculate the fresnel factor and then combine the refraction and reflection values based on the fresnel factor.

    // Now calculate the fresnel term based solely on height.
    r = (1.2f - 1.0f) / (1.2f + 1.0f);
    fresnelFactor = max(0.0f, min(1.0f, r + (1.0f - r) * pow(1.0f - dot(normal, heightView), 2)));

    // Combine the reflection and refraction results for the final color using the fresnel factor.
    color = lerp(reflectionColor, refractionColor, fresnelFactor);

Finally do a specular light calculation using the water normals and add it to the final color result to get the specular effect on just the water ripples.

    // Calculate the reflection vector using the normal and the direction of the light.
    reflection = -reflect(normalize(lightDirection), normal);

    // Calculate the specular light based on the reflection and the camera position.
    specular = dot(normalize(reflection), normalize(input.viewDirection));

    // Check to make sure the specular was positive so we aren't adding black spots to the water.
    if(specular > 0.0f)
    {
        // Increase the specular light by the shininess value.
        specular = pow(specular, specularShininess);

        // Add the specular to the final color.
        color = saturate(color + specular);
    }

    return color;
}

Watershaderclass.h

The WaterShaderClass is the same as it was in the DirectX water tutorial except that it contains variables for the new settings such as specular, texture tiling, and refraction tint.

////////////////////////////////////////////////////////////////////////////////
// Filename: watershaderclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _WATERSHADERCLASS_H_
#define _WATERSHADERCLASS_H_


//////////////
// INCLUDES //
//////////////
#include <d3d11.h>
#include <d3dx10math.h>
#include <d3dx11async.h>
#include <fstream>
using namespace std;


////////////////////////////////////////////////////////////////////////////////
// Class name: WaterShaderClass
////////////////////////////////////////////////////////////////////////////////
class WaterShaderClass
{
private:
	struct MatrixBufferType
	{
		D3DXMATRIX world;
		D3DXMATRIX view;
		D3DXMATRIX projection;
		D3DXMATRIX reflection;
	};

	struct CamNormBufferType
	{
		D3DXVECTOR3 cameraPosition;
		float padding1;
		D3DXVECTOR2 normalMapTiling;
		D3DXVECTOR2 padding2;
	};

	struct WaterBufferType
	{
		D3DXVECTOR4 refractionTint;
		D3DXVECTOR3 lightDirection;
		float waterTranslation;
		float reflectRefractScale;
		float specularShininess;
		D3DXVECTOR2 padding;
	};

public:
	WaterShaderClass();
	WaterShaderClass(const WaterShaderClass&);
	~WaterShaderClass();

	bool Initialize(ID3D11Device*, HWND);
	void Shutdown();
	bool Render(ID3D11DeviceContext*, int, D3DXMATRIX, D3DXMATRIX, D3DXMATRIX, D3DXMATRIX, ID3D11ShaderResourceView*, ID3D11ShaderResourceView*,
		    ID3D11ShaderResourceView*, D3DXVECTOR3, D3DXVECTOR2, float, float, D3DXVECTOR4, D3DXVECTOR3, float);

private:
	bool InitializeShader(ID3D11Device*, HWND, WCHAR*, WCHAR*);
	void ShutdownShader();
	void OutputShaderErrorMessage(ID3D10Blob*, HWND, WCHAR*);

	bool SetShaderParameters(ID3D11DeviceContext*, D3DXMATRIX, D3DXMATRIX, D3DXMATRIX, D3DXMATRIX, ID3D11ShaderResourceView*, ID3D11ShaderResourceView*,
				 ID3D11ShaderResourceView*, D3DXVECTOR3, D3DXVECTOR2, float, float, D3DXVECTOR4, D3DXVECTOR3, float);
	void RenderShader(ID3D11DeviceContext*, int);

private:
	ID3D11VertexShader* m_vertexShader;
	ID3D11PixelShader* m_pixelShader;
	ID3D11InputLayout* m_layout;
	ID3D11SamplerState* m_sampleState;
	ID3D11Buffer* m_matrixBuffer;
	ID3D11Buffer* m_camNormBuffer;
	ID3D11Buffer* m_waterBuffer;
};

#endif

Watershaderclass.cpp

////////////////////////////////////////////////////////////////////////////////
// Filename: watershaderclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "watershaderclass.h"


WaterShaderClass::WaterShaderClass()
{
	m_vertexShader = 0;
	m_pixelShader = 0;
	m_layout = 0;
	m_sampleState = 0;
	m_matrixBuffer = 0;
	m_camNormBuffer = 0;
	m_waterBuffer = 0;
}


WaterShaderClass::WaterShaderClass(const WaterShaderClass& other)
{
}


WaterShaderClass::~WaterShaderClass()
{
}


bool WaterShaderClass::Initialize(ID3D11Device* device, HWND hwnd)
{
	bool result;


	// Initialize the vertex and pixel shaders.
	result = InitializeShader(device, hwnd, L"../Engine/water.vs", L"../Engine/water.ps");
	if(!result)
	{
		return false;
	}

	return true;
}


void WaterShaderClass::Shutdown()
{
	// Shutdown the vertex and pixel shaders as well as the related objects.
	ShutdownShader();

	return;
}


bool WaterShaderClass::Render(ID3D11DeviceContext* deviceContext, int indexCount, D3DXMATRIX worldMatrix, D3DXMATRIX viewMatrix,
			      D3DXMATRIX projectionMatrix, D3DXMATRIX reflectionMatrix, ID3D11ShaderResourceView* refractionTexture,
			      ID3D11ShaderResourceView* reflectionTexture, ID3D11ShaderResourceView* normalTexture, D3DXVECTOR3 cameraPosition,
			      D3DXVECTOR2 normalMapTiling, float waterTranslation, float reflectRefractScale, D3DXVECTOR4 refractionTint,
			      D3DXVECTOR3 lightDirection, float specularShininess)
{
	bool result;


	// Set the shader parameters that it will use for rendering.
	result = SetShaderParameters(deviceContext, worldMatrix, viewMatrix, projectionMatrix, reflectionMatrix, refractionTexture, reflectionTexture,
				     normalTexture, cameraPosition, normalMapTiling, waterTranslation, reflectRefractScale, refractionTint, lightDirection,
				     specularShininess);
	if(!result)
	{
		return false;
	}

	// Now render the prepared buffers with the shader.
	RenderShader(deviceContext, indexCount);

	return true;
}


bool WaterShaderClass::InitializeShader(ID3D11Device* device, HWND hwnd, WCHAR* vsFilename, WCHAR* psFilename)
{
	HRESULT result;
	ID3D10Blob* errorMessage;
	ID3D10Blob* vertexShaderBuffer;
	ID3D10Blob* pixelShaderBuffer;
	D3D11_INPUT_ELEMENT_DESC polygonLayout[2];
	unsigned int numElements;
	D3D11_SAMPLER_DESC samplerDesc;
	D3D11_BUFFER_DESC matrixBufferDesc;
	D3D11_BUFFER_DESC camNormBufferDesc;
	D3D11_BUFFER_DESC waterBufferDesc;


	// Initialize the pointers this function will use to null.
	errorMessage = 0;
	vertexShaderBuffer = 0;
	pixelShaderBuffer = 0;

	// Compile the vertex shader code.
	result = D3DX11CompileFromFile(vsFilename, NULL, NULL, "WaterVertexShader", "vs_5_0", D3D10_SHADER_ENABLE_STRICTNESS, 0, NULL,
				       &vertexShaderBuffer, &errorMessage, NULL);
	if(FAILED(result))
	{
		// If the shader failed to compile it should have writen something to the error message.
		if(errorMessage)
		{
			OutputShaderErrorMessage(errorMessage, hwnd, vsFilename);
		}
		// If there was  nothing in the error message then it simply could not find the shader file itself.
		else
		{
			MessageBox(hwnd, vsFilename, L"Missing Shader File", MB_OK);
		}

		return false;
	}

	// Compile the pixel shader code.
	result = D3DX11CompileFromFile(psFilename, NULL, NULL, "WaterPixelShader", "ps_5_0", D3D10_SHADER_ENABLE_STRICTNESS, 0, NULL,
				       &pixelShaderBuffer, &errorMessage, NULL);
	if(FAILED(result))
	{
		// If the shader failed to compile it should have writen something to the error message.
		if(errorMessage)
		{
			OutputShaderErrorMessage(errorMessage, hwnd, psFilename);
		}
		// If there was  nothing in the error message then it simply could not find the file itself.
		else
		{
			MessageBox(hwnd, psFilename, L"Missing Shader File", MB_OK);
		}

		return false;
	}

	// Create the vertex shader from the buffer.
	result = device->CreateVertexShader(vertexShaderBuffer->GetBufferPointer(), vertexShaderBuffer->GetBufferSize(), NULL, &m_vertexShader);
	if(FAILED(result))
	{
		return false;
	}

	// Create the vertex shader from the buffer.
	result = device->CreatePixelShader(pixelShaderBuffer->GetBufferPointer(), pixelShaderBuffer->GetBufferSize(), NULL, &m_pixelShader);
	if(FAILED(result))
	{
		return false;
	}

	// Create the vertex input layout description.
	polygonLayout[0].SemanticName = "POSITION";
	polygonLayout[0].SemanticIndex = 0;
	polygonLayout[0].Format = DXGI_FORMAT_R32G32B32_FLOAT;
	polygonLayout[0].InputSlot = 0;
	polygonLayout[0].AlignedByteOffset = 0;
	polygonLayout[0].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
	polygonLayout[0].InstanceDataStepRate = 0;

	polygonLayout[1].SemanticName = "TEXCOORD";
	polygonLayout[1].SemanticIndex = 0;
	polygonLayout[1].Format = DXGI_FORMAT_R32G32_FLOAT;
	polygonLayout[1].InputSlot = 0;
	polygonLayout[1].AlignedByteOffset = D3D11_APPEND_ALIGNED_ELEMENT;
	polygonLayout[1].InputSlotClass = D3D11_INPUT_PER_VERTEX_DATA;
	polygonLayout[1].InstanceDataStepRate = 0;

	// Get a count of the elements in the layout.
	numElements = sizeof(polygonLayout) / sizeof(polygonLayout[0]);

	// Create the vertex input layout.
	result = device->CreateInputLayout(polygonLayout, numElements, vertexShaderBuffer->GetBufferPointer(), vertexShaderBuffer->GetBufferSize(), &m_layout);
	if(FAILED(result))
	{
		return false;
	}

	// Release the vertex shader buffer and pixel shader buffer since they are no longer needed.
	vertexShaderBuffer->Release();
	vertexShaderBuffer = 0;

	pixelShaderBuffer->Release();
	pixelShaderBuffer = 0;

	// Create a texture sampler state description.
	samplerDesc.Filter = D3D11_FILTER_MIN_MAG_MIP_LINEAR;
	samplerDesc.AddressU = D3D11_TEXTURE_ADDRESS_WRAP;
	samplerDesc.AddressV = D3D11_TEXTURE_ADDRESS_WRAP;
	samplerDesc.AddressW = D3D11_TEXTURE_ADDRESS_WRAP;
	samplerDesc.MipLODBias = 0.0f;
	samplerDesc.MaxAnisotropy = 1;
	samplerDesc.ComparisonFunc = D3D11_COMPARISON_ALWAYS;
	samplerDesc.BorderColor[0] = 0;
	samplerDesc.BorderColor[1] = 0;
	samplerDesc.BorderColor[2] = 0;
	samplerDesc.BorderColor[3] = 0;
	samplerDesc.MinLOD = 0;
	samplerDesc.MaxLOD = D3D11_FLOAT32_MAX;

	// Create the texture sampler state.
	result = device->CreateSamplerState(&samplerDesc, &m_sampleState);
	if(FAILED(result))
	{
		return false;
	}

	// Setup the description of the matrix dynamic constant buffer that is in the vertex shader.
	matrixBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
	matrixBufferDesc.ByteWidth = sizeof(MatrixBufferType);
	matrixBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
	matrixBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
	matrixBufferDesc.MiscFlags = 0;
	matrixBufferDesc.StructureByteStride = 0;

	// Create the matrix constant buffer pointer so we can access the vertex shader constant buffer from within this class.
	result = device->CreateBuffer(&matrixBufferDesc, NULL, &m_matrixBuffer);
	if(FAILED(result))
	{
		return false;
	}

	// Setup the description of the camera and normal tiling dynamic constant buffer that is in the vertex shader.
	camNormBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
	camNormBufferDesc.ByteWidth = sizeof(CamNormBufferType);
	camNormBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
	camNormBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
	camNormBufferDesc.MiscFlags = 0;
	camNormBufferDesc.StructureByteStride = 0;

	// Create the constant buffer pointer so we can access the vertex shader constant buffer from within this class.
	result = device->CreateBuffer(&camNormBufferDesc, NULL, &m_camNormBuffer);
	if(FAILED(result))
	{
		return false;
	}

	// Setup the description of the water dynamic constant buffer that is in the pixel shader.
	waterBufferDesc.Usage = D3D11_USAGE_DYNAMIC;
	waterBufferDesc.ByteWidth = sizeof(WaterBufferType);
	waterBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
	waterBufferDesc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
	waterBufferDesc.MiscFlags = 0;
	waterBufferDesc.StructureByteStride = 0;

	// Create the constant buffer pointer so we can access the pixel shader constant buffer from within this class.
	result = device->CreateBuffer(&waterBufferDesc, NULL, &m_waterBuffer);
	if(FAILED(result))
	{
		return false;
	}

	return true;
}


void WaterShaderClass::ShutdownShader()
{
	// Release the water constant buffer.
	if(m_waterBuffer)
	{
		m_waterBuffer->Release();
		m_waterBuffer = 0;
	}

	// Release the camera and normal tiling constant buffer.
	if(m_camNormBuffer)
	{
		m_camNormBuffer->Release();
		m_camNormBuffer = 0;
	}

	// Release the matrix constant buffer.
	if(m_matrixBuffer)
	{
		m_matrixBuffer->Release();
		m_matrixBuffer = 0;
	}

	// Release the sampler state.
	if(m_sampleState)
	{
		m_sampleState->Release();
		m_sampleState = 0;
	}

	// Release the layout.
	if(m_layout)
	{
		m_layout->Release();
		m_layout = 0;
	}

	// Release the pixel shader.
	if(m_pixelShader)
	{
		m_pixelShader->Release();
		m_pixelShader = 0;
	}

	// Release the vertex shader.
	if(m_vertexShader)
	{
		m_vertexShader->Release();
		m_vertexShader = 0;
	}

	return;
}


void WaterShaderClass::OutputShaderErrorMessage(ID3D10Blob* errorMessage, HWND hwnd, WCHAR* shaderFilename)
{
	char* compileErrors;
	unsigned long bufferSize, i;
	ofstream fout;


	// Get a pointer to the error message text buffer.
	compileErrors = (char*)(errorMessage->GetBufferPointer());

	// Get the length of the message.
	bufferSize = errorMessage->GetBufferSize();

	// Open a file to write the error message to.
	fout.open("shader-error.txt");

	// Write out the error message.
	for(i=0; i<bufferSize; i++)
	{
		fout << compileErrors[i];
	}

	// Close the file.
	fout.close();

	// Release the error message.
	errorMessage->Release();
	errorMessage = 0;

	// Pop a message up on the screen to notify the user to check the text file for compile errors.
	MessageBox(hwnd, L"Error compiling shader.  Check shader-error.txt for message.", shaderFilename, MB_OK);

	return;
}


bool WaterShaderClass::SetShaderParameters(ID3D11DeviceContext* deviceContext, D3DXMATRIX worldMatrix, D3DXMATRIX viewMatrix, D3DXMATRIX projectionMatrix,
					   D3DXMATRIX reflectionMatrix, ID3D11ShaderResourceView* refractionTexture,
					   ID3D11ShaderResourceView* reflectionTexture, ID3D11ShaderResourceView* normalTexture,
					   D3DXVECTOR3 cameraPosition, D3DXVECTOR2 normalMapTiling, float waterTranslation, float reflectRefractScale,
					   D3DXVECTOR4 refractionTint, D3DXVECTOR3 lightDirection, float specularShininess)
{
	HRESULT result;
	D3D11_MAPPED_SUBRESOURCE mappedResource;
	unsigned int bufferNumber;
	MatrixBufferType* dataPtr;
	CamNormBufferType* dataPtr2;
	WaterBufferType* dataPtr3;


	// Transpose all the input matrices to prepare them for the shader.
	D3DXMatrixTranspose(&worldMatrix, &worldMatrix);
	D3DXMatrixTranspose(&viewMatrix, &viewMatrix);
	D3DXMatrixTranspose(&projectionMatrix, &projectionMatrix);
	D3DXMatrixTranspose(&reflectionMatrix, &reflectionMatrix);

	// Lock the matrix constant buffer so it can be written to.
	result = deviceContext->Map(m_matrixBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
	if(FAILED(result))
	{
		return false;
	}

	// Get a pointer to the data in the constant buffer.
	dataPtr = (MatrixBufferType*)mappedResource.pData;

	// Copy the matrices into the constant buffer.
	dataPtr->world = worldMatrix;
	dataPtr->view = viewMatrix;
	dataPtr->projection = projectionMatrix;
	dataPtr->reflection = reflectionMatrix;

	// Unlock the matrix constant buffer.
	deviceContext->Unmap(m_matrixBuffer, 0);

	// Set the position of the matrix constant buffer in the vertex shader.
	bufferNumber = 0;

	// Now set the matrix constant buffer in the vertex shader with the updated values.
	deviceContext->VSSetConstantBuffers(bufferNumber, 1, &m_matrixBuffer);

	// Lock the camera and normal tiling constant buffer so it can be written to.
	result = deviceContext->Map(m_camNormBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
	if(FAILED(result))
	{
		return false;
	}

	// Get a pointer to the data in the constant buffer.
	dataPtr2 = (CamNormBufferType*)mappedResource.pData;

	// Copy the data into the constant buffer.
	dataPtr2->cameraPosition = cameraPosition;
	dataPtr2->padding1 = 0.0f;
	dataPtr2->normalMapTiling = normalMapTiling;
	dataPtr2->padding2 = D3DXVECTOR2(0.0f, 0.0f);

	// Unlock the constant buffer.
	deviceContext->Unmap(m_camNormBuffer, 0);

	// Set the position of the constant buffer in the vertex shader.
	bufferNumber = 1;

	// Set the constant buffer in the vertex shader with the updated values.
	deviceContext->VSSetConstantBuffers(bufferNumber, 1, &m_camNormBuffer);

	// Set the texture resources in the pixel shader.
	deviceContext->PSSetShaderResources(0, 1, &refractionTexture);
	deviceContext->PSSetShaderResources(1, 1, &reflectionTexture);
	deviceContext->PSSetShaderResources(2, 1, &normalTexture);

	// Lock the water constant buffer so it can be written to.
	result = deviceContext->Map(m_waterBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedResource);
	if(FAILED(result))
	{
		return false;
	}

	// Get a pointer to the data in the constant buffer.
	dataPtr3 = (WaterBufferType*)mappedResource.pData;

	// Copy the water data into the constant buffer.
	dataPtr3->waterTranslation = waterTranslation;
	dataPtr3->reflectRefractScale = reflectRefractScale;
	dataPtr3->refractionTint = refractionTint;
	dataPtr3->lightDirection = lightDirection;
	dataPtr3->specularShininess = specularShininess;
	dataPtr3->padding = D3DXVECTOR2(0.0f, 0.0f);

	// Unlock the constant buffer.
	deviceContext->Unmap(m_waterBuffer, 0);

	// Set the position of the water constant buffer in the pixel shader.
	bufferNumber = 0;

	// Finally set the water constant buffer in the pixel shader with the updated values.
	deviceContext->PSSetConstantBuffers(bufferNumber, 1, &m_waterBuffer);

	return true;
}


void WaterShaderClass::RenderShader(ID3D11DeviceContext* deviceContext, int indexCount)
{
	// Set the vertex input layout.
	deviceContext->IASetInputLayout(m_layout);

	// Set the vertex and pixel shaders that will be used to render this triangle.
	deviceContext->VSSetShader(m_vertexShader, NULL, 0);
	deviceContext->PSSetShader(m_pixelShader, NULL, 0);

	// Set the sampler state in the pixel shader.
	deviceContext->PSSetSamplers(0, 1, &m_sampleState);

	// Render the triangles.
	deviceContext->DrawIndexed(indexCount, 0, 0);

	return;
}

Applicationclass.h

////////////////////////////////////////////////////////////////////////////////
// Filename: applicationclass.h
////////////////////////////////////////////////////////////////////////////////
#ifndef _APPLICATIONCLASS_H_
#define _APPLICATIONCLASS_H_


/////////////
// GLOBALS //
/////////////
const bool FULL_SCREEN = true;
const bool VSYNC_ENABLED = true;
const float SCREEN_DEPTH = 1000.0f;
const float SCREEN_NEAR = 0.1f;


///////////////////////
// MY CLASS INCLUDES //
///////////////////////
#include "inputclass.h"
#include "d3dclass.h"
#include "timerclass.h"
#include "positionclass.h"
#include "cameraclass.h"
#include "lightclass.h"
#include "terrainclass.h"
#include "terrainshaderclass.h"
#include "skydomeclass.h"
#include "skydomeshaderclass.h"
#include "skyplaneclass.h"
#include "skyplaneshaderclass.h"
#include "fpsclass.h"
#include "cpuclass.h"
#include "fontshaderclass.h"
#include "textclass.h"

Add headers for the render to texture, reflection shader, water, and water shader.

#include "rendertextureclass.h"
#include "reflectionshaderclass.h"
#include "waterclass.h"
#include "watershaderclass.h"


////////////////////////////////////////////////////////////////////////////////
// Class name: ApplicationClass
////////////////////////////////////////////////////////////////////////////////
class ApplicationClass
{
public:
	ApplicationClass();
	ApplicationClass(const ApplicationClass&);
	~ApplicationClass();

	bool Initialize(HINSTANCE, HWND, int, int);
	void Shutdown();
	bool Frame();

private:
	bool HandleMovementInput(float);
	void RenderRefractionToTexture();
	void RenderReflectionToTexture();
	bool Render();

private:
	InputClass* m_Input;
	D3DClass* m_Direct3D;
	TimerClass* m_Timer;
	PositionClass* m_Position;
	CameraClass* m_Camera;
	LightClass* m_Light;
	TerrainClass* m_Terrain;
	TerrainShaderClass* m_TerrainShader;
	SkyDomeClass* m_SkyDome;
	SkyDomeShaderClass* m_SkyDomeShader;
	SkyPlaneClass *m_SkyPlane;
	SkyPlaneShaderClass* m_SkyPlaneShader;
	FpsClass* m_Fps;
	CpuClass* m_Cpu;
	FontShaderClass* m_FontShader;
	TextClass* m_Text;

There are new objects for the water related rendering.

	RenderTextureClass *m_RefractionTexture, *m_ReflectionTexture;
	ReflectionShaderClass* m_ReflectionShader;
	WaterClass* m_Water;
	WaterShaderClass* m_WaterShader;
};

#endif

Applicationclass.cpp

////////////////////////////////////////////////////////////////////////////////
// Filename: applicationclass.cpp
////////////////////////////////////////////////////////////////////////////////
#include "applicationclass.h"


ApplicationClass::ApplicationClass()
{
	m_Input = 0;
	m_Direct3D = 0;
	m_Timer = 0;
	m_Position = 0;
	m_Camera = 0;
	m_Light = 0;
	m_Terrain = 0;
	m_TerrainShader = 0;
	m_SkyDome = 0;
	m_SkyDomeShader = 0;
	m_SkyPlane = 0;
	m_SkyPlaneShader = 0;
	m_Fps = 0;
	m_Cpu = 0;
	m_FontShader = 0;
	m_Text = 0;
	m_RefractionTexture = 0;
	m_ReflectionTexture = 0;
	m_ReflectionShader = 0;
	m_Water = 0;
	m_WaterShader = 0;
}


ApplicationClass::ApplicationClass(const ApplicationClass& other)
{
}


ApplicationClass::~ApplicationClass()
{
}


bool ApplicationClass::Initialize(HINSTANCE hinstance, HWND hwnd, int screenWidth, int screenHeight)
{
	bool result;
	D3DXMATRIX baseViewMatrix;
	char videoCard[128];
	int videoMemory;


	// Create the input object.  The input object will be used to handle reading the keyboard and mouse input from the user.
	m_Input = new InputClass;
	if(!m_Input)
	{
		return false;
	}

	// Initialize the input object.
	result = m_Input->Initialize(hinstance, hwnd, screenWidth, screenHeight);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the input object.", L"Error", MB_OK);
		return false;
	}

	// Create the Direct3D object.
	m_Direct3D = new D3DClass;
	if(!m_Direct3D)
	{
		return false;
	}

	// Initialize the Direct3D object.
	result = m_Direct3D->Initialize(screenWidth, screenHeight, VSYNC_ENABLED, hwnd, FULL_SCREEN, SCREEN_DEPTH, SCREEN_NEAR);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize DirectX 11.", L"Error", MB_OK);
		return false;
	}

	// Retrieve the video card information.
	m_Direct3D->GetVideoCardInfo(videoCard, videoMemory);

	// Create the timer object.
	m_Timer = new TimerClass;
	if(!m_Timer)
	{
		return false;
	}

	// Initialize the timer object.
	result = m_Timer->Initialize();
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the timer object.", L"Error", MB_OK);
		return false;
	}

	// Create the position object.
	m_Position = new PositionClass;
	if(!m_Position)
	{
		return false;
	}

	// Set the initial position and rotation of the viewer.
	m_Position->SetPosition(280.379f, 24.5225f, 367.018f);
	m_Position->SetRotation(19.6834f, 222.013f, 0.0f);

	// Create the camera object.
	m_Camera = new CameraClass;
	if(!m_Camera)
	{
		return false;
	}

	// Initialize a base view matrix with the camera for 2D user interface rendering.
	m_Camera->SetPosition(0.0f, 0.0f, -10.0f);
	m_Camera->GenerateBaseViewMatrix();
	m_Camera->GetBaseViewMatrix(baseViewMatrix);

	// Create the light object.
	m_Light = new LightClass;
	if(!m_Light)
	{
		return false;
	}

	// Initialize the light object.
	m_Light->SetDiffuseColor(1.0f, 1.0f, 1.0f, 1.0f);
	m_Light->SetDirection(0.5f, -0.75f, 0.25f);

	// Create the terrain object.
	m_Terrain = new TerrainClass;
	if(!m_Terrain)
	{
		return false;
	}

	// Initialize the terrain object.
	result = m_Terrain->Initialize(m_Direct3D->GetDevice(), "../Engine/data/hm.bmp", "../Engine/data/cm.bmp", 20.0f, L"../Engine/data/dirt.dds",
				       L"../Engine/data/normal.dds");
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the terrain object.", L"Error", MB_OK);
		return false;
	}

	// Create the terrain shader object.
	m_TerrainShader = new TerrainShaderClass;
	if(!m_TerrainShader)
	{
		return false;
	}

	// Initialize the terrain shader object.
	result = m_TerrainShader->Initialize(m_Direct3D->GetDevice(), hwnd);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the terrain shader object.", L"Error", MB_OK);
		return false;
	}

	// Create the sky dome object.
	m_SkyDome = new SkyDomeClass;
	if(!m_SkyDome)
	{
		return false;
	}

	// Initialize the sky dome object.
	result = m_SkyDome->Initialize(m_Direct3D->GetDevice());
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the sky dome object.", L"Error", MB_OK);
		return false;
	}

	// Create the sky dome shader object.
	m_SkyDomeShader = new SkyDomeShaderClass;
	if(!m_SkyDomeShader)
	{
		return false;
	}

	// Initialize the sky dome shader object.
	result = m_SkyDomeShader->Initialize(m_Direct3D->GetDevice(), hwnd);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the sky dome shader object.", L"Error", MB_OK);
		return false;
	}

	// Create the sky plane object.
	m_SkyPlane = new SkyPlaneClass;
	if(!m_SkyPlane)
	{
		return false;
	}

	// Initialize the sky plane object.
	result = m_SkyPlane->Initialize(m_Direct3D->GetDevice(), L"../Engine/data/cloud001.dds", L"../Engine/data/perturb001.dds");
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the sky plane object.", L"Error", MB_OK);
		return false;
	}

	// Create the sky plane shader object.
	m_SkyPlaneShader = new SkyPlaneShaderClass;
	if(!m_SkyPlaneShader)
	{
		return false;
	}

	// Initialize the sky plane shader object.
	result = m_SkyPlaneShader->Initialize(m_Direct3D->GetDevice(), hwnd);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the sky plane shader object.", L"Error", MB_OK);
		return false;
	}

	// Create the fps object.
	m_Fps = new FpsClass;
	if(!m_Fps)
	{
		return false;
	}

	// Initialize the fps object.
	m_Fps->Initialize();

	// Create the cpu object.
	m_Cpu = new CpuClass;
	if(!m_Cpu)
	{
		return false;
	}

	// Initialize the cpu object.
	m_Cpu->Initialize();

	// Create the font shader object.
	m_FontShader = new FontShaderClass;
	if(!m_FontShader)
	{
		return false;
	}

	// Initialize the font shader object.
	result = m_FontShader->Initialize(m_Direct3D->GetDevice(), hwnd);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the font shader object.", L"Error", MB_OK);
		return false;
	}

	// Create the text object.
	m_Text = new TextClass;
	if(!m_Text)
	{
		return false;
	}

	// Initialize the text object.
	result = m_Text->Initialize(m_Direct3D->GetDevice(), m_Direct3D->GetDeviceContext(), hwnd, screenWidth, screenHeight, baseViewMatrix);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the text object.", L"Error", MB_OK);
		return false;
	}

	// Set the video card information in the text object.
	result = m_Text->SetVideoCardInfo(videoCard, videoMemory, m_Direct3D->GetDeviceContext());
	if(!result)
	{
		MessageBox(hwnd, L"Could not set video card info in the text object.", L"Error", MB_OK);
		return false;
	}

Setup render to textures for the refraction and reflection of the scene.

	// Create the refraction render to texture object.
	m_RefractionTexture = new RenderTextureClass;
	if(!m_RefractionTexture)
	{
		return false;
	}

	// Initialize the refraction render to texture object.
	result = m_RefractionTexture->Initialize(m_Direct3D->GetDevice(), screenWidth, screenHeight, SCREEN_DEPTH, SCREEN_NEAR);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the refraction render to texture object.", L"Error", MB_OK);
		return false;
	}

	// Create the reflection render to texture object.
	m_ReflectionTexture = new RenderTextureClass;
	if(!m_ReflectionTexture)
	{
		return false;
	}

	// Initialize the reflection render to texture object.
	result = m_ReflectionTexture->Initialize(m_Direct3D->GetDevice(), screenWidth, screenHeight, SCREEN_DEPTH, SCREEN_NEAR);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the reflection render to texture object.", L"Error", MB_OK);
		return false;
	}

Create the reflection shader for rendering the refraction and the reflection.

	// Create the reflection shader object.
	m_ReflectionShader = new ReflectionShaderClass;
	if(!m_ReflectionShader)
	{
		return false;
	}

	// Initialize the reflection shader object.
	result = m_ReflectionShader->Initialize(m_Direct3D->GetDevice(), hwnd);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the reflection shader object.", L"Error", MB_OK);
		return false;
	}

Setup the WaterClass and WaterShaderClass objects.

	// Create the water object.
	m_Water = new WaterClass;
	if(!m_Water)
	{
		return false;
	}

	// Initialize the water object.
	result = m_Water->Initialize(m_Direct3D->GetDevice(), L"../Engine/data/waternormal.dds", 3.75f, 110.0f);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the water object.", L"Error", MB_OK);
		return false;
	}

	// Create the water shader object.
	m_WaterShader = new WaterShaderClass;
	if(!m_WaterShader)
	{
		return false;
	}

	// Initialize the water shader object.
	result = m_WaterShader->Initialize(m_Direct3D->GetDevice(), hwnd);
	if(!result)
	{
		MessageBox(hwnd, L"Could not initialize the water shader object.", L"Error", MB_OK);
		return false;
	}

	return true;
}


void ApplicationClass::Shutdown()
{
	// Release the water shader object.
	if(m_WaterShader)
	{
		m_WaterShader->Shutdown();
		delete m_WaterShader;
		m_WaterShader = 0;
	}

	// Release the water object.
	if(m_Water)
	{
		m_Water->Shutdown();
		delete m_Water;
		m_Water = 0;
	}

	// Release the reflection shader object.
	if(m_ReflectionShader)
	{
		m_ReflectionShader->Shutdown();
		delete m_ReflectionShader;
		m_ReflectionShader = 0;
	}

	// Release the reflection render to texture object.
	if(m_ReflectionTexture)
	{
		m_ReflectionTexture->Shutdown();
		delete m_ReflectionTexture;
		m_ReflectionTexture = 0;
	}

	// Release the refraction render to texture object.
	if(m_RefractionTexture)
	{
		m_RefractionTexture->Shutdown();
		delete m_RefractionTexture;
		m_RefractionTexture = 0;
	}

	// Release the text object.
	if(m_Text)
	{
		m_Text->Shutdown();
		delete m_Text;
		m_Text = 0;
	}

	// Release the font shader object.
	if(m_FontShader)
	{
		m_FontShader->Shutdown();
		delete m_FontShader;
		m_FontShader = 0;
	}

	// Release the cpu object.
	if(m_Cpu)
	{
		m_Cpu->Shutdown();
		delete m_Cpu;
		m_Cpu = 0;
	}

	// Release the fps object.
	if(m_Fps)
	{
		delete m_Fps;
		m_Fps = 0;
	}

	// Release the sky plane shader object.
	if(m_SkyPlaneShader)
	{
		m_SkyPlaneShader->Shutdown();
		delete m_SkyPlaneShader;
		m_SkyPlaneShader = 0;
	}

	// Release the sky plane object.
	if(m_SkyPlane)
	{
		m_SkyPlane->Shutdown();
		delete m_SkyPlane;
		m_SkyPlane = 0;
	}

	// Release the sky dome shader object.
	if(m_SkyDomeShader)
	{
		m_SkyDomeShader->Shutdown();
		delete m_SkyDomeShader;
		m_SkyDomeShader = 0;
	}

	// Release the sky dome object.
	if(m_SkyDome)
	{
		m_SkyDome->Shutdown();
		delete m_SkyDome;
		m_SkyDome = 0;
	}

	// Release the terrain shader object.
	if(m_TerrainShader)
	{
		m_TerrainShader->Shutdown();
		delete m_TerrainShader;
		m_TerrainShader = 0;
	}

	// Release the terrain object.
	if(m_Terrain)
	{
		m_Terrain->Shutdown();
		delete m_Terrain;
		m_Terrain = 0;
	}

	// Release the light object.
	if(m_Light)
	{
		delete m_Light;
		m_Light = 0;
	}

	// Release the camera object.
	if(m_Camera)
	{
		delete m_Camera;
		m_Camera = 0;
	}

	// Release the position object.
	if(m_Position)
	{
		delete m_Position;
		m_Position = 0;
	}

	// Release the timer object.
	if(m_Timer)
	{
		delete m_Timer;
		m_Timer = 0;
	}

	// Release the Direct3D object.
	if(m_Direct3D)
	{
		m_Direct3D->Shutdown();
		delete m_Direct3D;
		m_Direct3D = 0;
	}

	// Release the input object.
	if(m_Input)
	{
		m_Input->Shutdown();
		delete m_Input;
		m_Input = 0;
	}

	return;
}


bool ApplicationClass::Frame()
{
	bool result;


	// Update the system stats.
	m_Timer->Frame();
	m_Fps->Frame();
	m_Cpu->Frame();

	// Read the user input.
	result = m_Input->Frame();
	if(!result)
	{
		return false;
	}

	// Check if the user pressed escape and wants to exit the application.
	if(m_Input->IsEscapePressed() == true)
	{
		return false;
	}

	// Do the frame input processing.
	result = HandleMovementInput(m_Timer->GetTime());
	if(!result)
	{
		return false;
	}

	// Update the FPS value in the text object.
	result = m_Text->SetFps(m_Fps->GetFps(), m_Direct3D->GetDeviceContext());
	if(!result)
	{
		return false;
	}

	// Update the CPU usage value in the text object.
	result = m_Text->SetCpu(m_Cpu->GetCpuPercentage(), m_Direct3D->GetDeviceContext());
	if(!result)
	{
		return false;
	}

The WaterClass object requires frame processing to translate the water normal map sampling.

	// Do the water frame processing.
	m_Water->Frame();

	// Do the sky plane frame processing.
	m_SkyPlane->Frame();

There are three render steps. First render the refraction of the scene to a texture. Next render the reflection of the scene to a texture. And then finally render the entire scene using the refraction and reflection textures.

	// Render the refraction of the scene to a texture.
	RenderRefractionToTexture();

	// Render the reflection of the scene to a texture.
	RenderReflectionToTexture();

	// Render the graphics.
	result = Render();
	if(!result)
	{
		return false;
	}

	return result;
}


bool ApplicationClass::HandleMovementInput(float frameTime)
{
	bool keyDown, result;
	float posX, posY, posZ, rotX, rotY, rotZ;


	// Set the frame time for calculating the updated position.
	m_Position->SetFrameTime(frameTime);

	// Handle the input.
	keyDown = m_Input->IsLeftPressed();
	m_Position->TurnLeft(keyDown);

	keyDown = m_Input->IsRightPressed();
	m_Position->TurnRight(keyDown);

	keyDown = m_Input->IsUpPressed();
	m_Position->MoveForward(keyDown);

	keyDown = m_Input->IsDownPressed();
	m_Position->MoveBackward(keyDown);

	keyDown = m_Input->IsAPressed();
	m_Position->MoveUpward(keyDown);

	keyDown = m_Input->IsZPressed();
	m_Position->MoveDownward(keyDown);

	keyDown = m_Input->IsPgUpPressed();
	m_Position->LookUpward(keyDown);

	keyDown = m_Input->IsPgDownPressed();
	m_Position->LookDownward(keyDown);

	// Get the view point position/rotation.
	m_Position->GetPosition(posX, posY, posZ);
	m_Position->GetRotation(rotX, rotY, rotZ);

	// Set the position of the camera.
	m_Camera->SetPosition(posX, posY, posZ);
	m_Camera->SetRotation(rotX, rotY, rotZ);

	// Update the position values in the text object.
	result = m_Text->SetCameraPosition(posX, posY, posZ, m_Direct3D->GetDeviceContext());
	if(!result)
	{
		return false;
	}

	// Update the rotation values in the text object.
	result = m_Text->SetCameraRotation(rotX, rotY, rotZ, m_Direct3D->GetDeviceContext());
	if(!result)
	{
		return false;
	}

	return true;
}

Here is where we render the refraction of the scene to a render to texture object. Note we only need to render the terrain as nothing else is below the water other than terrain. We use the clipping plane and then render a refraction of everything under the water using the reflection shader. Note also that we have to offset the sampling of the refraction otherwise we get black spots along the sides of the refraction from sampling outside of the texture.

void ApplicationClass::RenderRefractionToTexture()
{
	D3DXVECTOR4 clipPlane;
	D3DXMATRIX worldMatrix, viewMatrix, projectionMatrix;


	// Setup a clipping plane based on the height of the water to clip everything above it to create a refraction.
	clipPlane = D3DXVECTOR4(0.0f, -1.0f, 0.0f, m_Water->GetWaterHeight() + 0.1f);

	// Set the render target to be the refraction render to texture.
	m_RefractionTexture->SetRenderTarget(m_Direct3D->GetDeviceContext());

	// Clear the refraction render to texture.
	m_RefractionTexture->ClearRenderTarget(m_Direct3D->GetDeviceContext(), 0.0f, 0.0f, 0.0f, 1.0f);

	// Generate the view matrix based on the camera's position.
	m_Camera->Render();

	// Get the matrices from the camera and d3d objects.
	m_Direct3D->GetWorldMatrix(worldMatrix);
	m_Camera->GetViewMatrix(viewMatrix);
	m_Direct3D->GetProjectionMatrix(projectionMatrix);

	// Render the terrain using the reflection shader and the refraction clip plane to produce the refraction effect.
	m_Terrain->Render(m_Direct3D->GetDeviceContext());
	m_ReflectionShader->Render(m_Direct3D->GetDeviceContext(), m_Terrain->GetIndexCount(), worldMatrix, viewMatrix, projectionMatrix,
				   m_Terrain->GetColorTexture(), m_Terrain->GetNormalTexture(), m_Light->GetDiffuseColor(), m_Light->GetDirection(), 2.0f,
				   clipPlane);

	// Reset the render target back to the original back buffer and not the render to texture anymore.
	m_Direct3D->SetBackBufferRenderTarget();

	// Reset the viewport back to the original.
	m_Direct3D->ResetViewport();

	return;
}

Here is where we render the reflection of the scene to a texture. We render everything above the water to a texture.

void ApplicationClass::RenderReflectionToTexture()
{
	D3DXVECTOR4 clipPlane;
	D3DXMATRIX reflectionViewMatrix, worldMatrix, projectionMatrix;
	D3DXVECTOR3 cameraPosition;


	// Setup a clipping plane based on the height of the water to clip everything below it.
	clipPlane = D3DXVECTOR4(0.0f, 1.0f, 0.0f, -m_Water->GetWaterHeight());

	// Set the render target to be the reflection render to texture.
	m_ReflectionTexture->SetRenderTarget(m_Direct3D->GetDeviceContext());

	// Clear the reflection render to texture.
	m_ReflectionTexture->ClearRenderTarget(m_Direct3D->GetDeviceContext(), 0.0f, 0.0f, 0.0f, 1.0f);

	// Use the camera to render the reflection and create a reflection view matrix.
	m_Camera->RenderReflection(m_Water->GetWaterHeight());

	// Get the camera reflection view matrix instead of the normal view matrix.
	m_Camera->GetReflectionViewMatrix(reflectionViewMatrix);

	// Get the world and projection matrices from the d3d object.
	m_Direct3D->GetWorldMatrix(worldMatrix);
	m_Direct3D->GetProjectionMatrix(projectionMatrix);

	// Get the position of the camera.
	cameraPosition = m_Camera->GetPosition();

	// Invert the Y coordinate of the camera around the water plane height for the reflected camera position.
	cameraPosition.y = -cameraPosition.y + (m_Water->GetWaterHeight() * 2.0f);

	// Translate the sky dome and sky plane to be centered around the reflected camera position.
	D3DXMatrixTranslation(&worldMatrix, cameraPosition.x, cameraPosition.y, cameraPosition.z);

	// Turn off back face culling and the Z buffer.
	m_Direct3D->TurnOffCulling();
	m_Direct3D->TurnZBufferOff();

	// Render the sky dome using the reflection view matrix.
	m_SkyDome->Render(m_Direct3D->GetDeviceContext());
	m_SkyDomeShader->Render(m_Direct3D->GetDeviceContext(), m_SkyDome->GetIndexCount(), worldMatrix, reflectionViewMatrix, projectionMatrix,
				m_SkyDome->GetApexColor(), m_SkyDome->GetCenterColor());

	// Enable back face culling.
	m_Direct3D->TurnOnCulling();

	// Enable additive blending so the clouds blend with the sky dome color.
	m_Direct3D->EnableSecondBlendState();

	// Render the sky plane using the sky plane shader.
	m_SkyPlane->Render(m_Direct3D->GetDeviceContext());
	m_SkyPlaneShader->Render(m_Direct3D->GetDeviceContext(), m_SkyPlane->GetIndexCount(), worldMatrix, reflectionViewMatrix, projectionMatrix,
				 m_SkyPlane->GetCloudTexture(), m_SkyPlane->GetPerturbTexture(), m_SkyPlane->GetTranslation(), m_SkyPlane->GetScale(),
				 m_SkyPlane->GetBrightness());

	// Turn off blending and enable the Z buffer again.
	m_Direct3D->TurnOffAlphaBlending();
	m_Direct3D->TurnZBufferOn();

	// Reset the world matrix.
	m_Direct3D->GetWorldMatrix(worldMatrix);

	// Render the terrain using the reflection view matrix and reflection clip plane.
	m_Terrain->Render(m_Direct3D->GetDeviceContext());
	m_ReflectionShader->Render(m_Direct3D->GetDeviceContext(), m_Terrain->GetIndexCount(), worldMatrix, reflectionViewMatrix, projectionMatrix,
				   m_Terrain->GetColorTexture(), m_Terrain->GetNormalTexture(), m_Light->GetDiffuseColor(), m_Light->GetDirection(), 2.0f,
				   clipPlane);

	// Reset the render target back to the original back buffer and not the render to texture anymore.
	m_Direct3D->SetBackBufferRenderTarget();

	// Reset the viewport back to the original.
	m_Direct3D->ResetViewport();

	return;
}

Now we render the scene to the back buffer. Everything is rendered as normal except for the water which uses the refraction and reflection render to texture objects as well as the other water related shader parameters.

bool ApplicationClass::Render()
{
	D3DXMATRIX worldMatrix, viewMatrix, projectionMatrix, orthoMatrix, baseViewMatrix, reflectionViewMatrix;
	bool result;
	D3DXVECTOR3 cameraPosition;


	// Clear the scene.
	m_Direct3D->BeginScene(0.0f, 0.0f, 0.0f, 1.0f);

	// Generate the view matrix based on the camera's position.
	m_Camera->Render();

	// Generate the reflection matrix based on the camera's position and the height of the water.
	m_Camera->RenderReflection(m_Water->GetWaterHeight());

	// Get the world, view, projection, ortho, and base view matrices from the camera and Direct3D objects.
	m_Direct3D->GetWorldMatrix(worldMatrix);
	m_Camera->GetViewMatrix(viewMatrix);
	m_Direct3D->GetProjectionMatrix(projectionMatrix);
	m_Direct3D->GetOrthoMatrix(orthoMatrix);
	m_Camera->GetBaseViewMatrix(baseViewMatrix);
	m_Camera->GetReflectionViewMatrix(reflectionViewMatrix);

	// Get the position of the camera.
	cameraPosition = m_Camera->GetPosition();

	// Translate the sky dome to be centered around the camera position.
	D3DXMatrixTranslation(&worldMatrix, cameraPosition.x, cameraPosition.y, cameraPosition.z);

	// Turn off back face culling and the Z buffer.
	m_Direct3D->TurnOffCulling();
	m_Direct3D->TurnZBufferOff();

	// Render the sky dome using the sky dome shader.
	m_SkyDome->Render(m_Direct3D->GetDeviceContext());
	m_SkyDomeShader->Render(m_Direct3D->GetDeviceContext(), m_SkyDome->GetIndexCount(), worldMatrix, viewMatrix, projectionMatrix,
				m_SkyDome->GetApexColor(), m_SkyDome->GetCenterColor());

	// Turn back face culling back on.
	m_Direct3D->TurnOnCulling();

	// Enable additive blending so the clouds blend with the sky dome color.
	m_Direct3D->EnableSecondBlendState();

	// Render the sky plane using the sky plane shader.
	m_SkyPlane->Render(m_Direct3D->GetDeviceContext());
	m_SkyPlaneShader->Render(m_Direct3D->GetDeviceContext(), m_SkyPlane->GetIndexCount(), worldMatrix, viewMatrix, projectionMatrix,
				 m_SkyPlane->GetCloudTexture(), m_SkyPlane->GetPerturbTexture(), m_SkyPlane->GetTranslation(), m_SkyPlane->GetScale(),
				 m_SkyPlane->GetBrightness());

	// Turn off blending.
	m_Direct3D->TurnOffAlphaBlending();

	// Turn the Z buffer back on.
	m_Direct3D->TurnZBufferOn();

	// Reset the world matrix.
	m_Direct3D->GetWorldMatrix(worldMatrix);

	// Render the terrain using the terrain shader.
	m_Terrain->Render(m_Direct3D->GetDeviceContext());
	result = m_TerrainShader->Render(m_Direct3D->GetDeviceContext(), m_Terrain->GetIndexCount(), worldMatrix, viewMatrix, projectionMatrix,
					 m_Terrain->GetColorTexture(), m_Terrain->GetNormalTexture(), m_Light->GetDiffuseColor(), m_Light->GetDirection(),
					 2.0f);
	if(!result)
	{
		return false;
	}

	// Translate to the location of the water and render it.
	D3DXMatrixTranslation(&worldMatrix, 240.0f, m_Water->GetWaterHeight(), 250.0f);
	m_Water->Render(m_Direct3D->GetDeviceContext());
	m_WaterShader->Render(m_Direct3D->GetDeviceContext(), m_Water->GetIndexCount(), worldMatrix, viewMatrix, projectionMatrix, reflectionViewMatrix,
			      m_RefractionTexture->GetShaderResourceView(), m_ReflectionTexture->GetShaderResourceView(), m_Water->GetTexture(),
			      m_Camera->GetPosition(), m_Water->GetNormalMapTiling(), m_Water->GetWaterTranslation(), m_Water->GetReflectRefractScale(),
			      m_Water->GetRefractionTint(), m_Light->GetDirection(), m_Water->GetSpecularShininess());

	// Reset the world matrix.
	m_Direct3D->GetWorldMatrix(worldMatrix);

	// Turn off the Z buffer to begin all 2D rendering.
	m_Direct3D->TurnZBufferOff();

	// Turn on the alpha blending before rendering the text.
	m_Direct3D->TurnOnAlphaBlending();

	// Render the text user interface elements.
	result = m_Text->Render(m_Direct3D->GetDeviceContext(), m_FontShader, worldMatrix, orthoMatrix);
	if(!result)
	{
		return false;
	}

	// Turn off alpha blending after rendering the text.
	m_Direct3D->TurnOffAlphaBlending();

	// Turn the Z buffer back on now that all 2D rendering has completed.
	m_Direct3D->TurnZBufferOn();

	// Present the rendered scene to the screen.
	m_Direct3D->EndScene();

	return true;
}

Summary

We can now render a fairly realistic water effect for small body water that doesn't require any large waves.


To Do Exercises

1. Compile and run the program. Move around using the arrow keys, A, Z, and PgUp and PgDn. Press escape to quit.

2. Modify the shader input values (such as the refraction tint) to see how they change the water effect.

3. Modify the water shader to see each piece of the effect output by itself. For example return only the refraction color, and then return only the reflection color.

4. Optimize the reflection portion using one of the methods described (such as updating the reflection once a second only).

5. Combine this tutorial with the Glass and Ice DirectX tutorial. Render a snowy terrain and change the water to be ice instead.


Source Code

Source Code and Data Files: tersrc16.zip

Executable: terexe16.zip

Back to Tutorial Index
